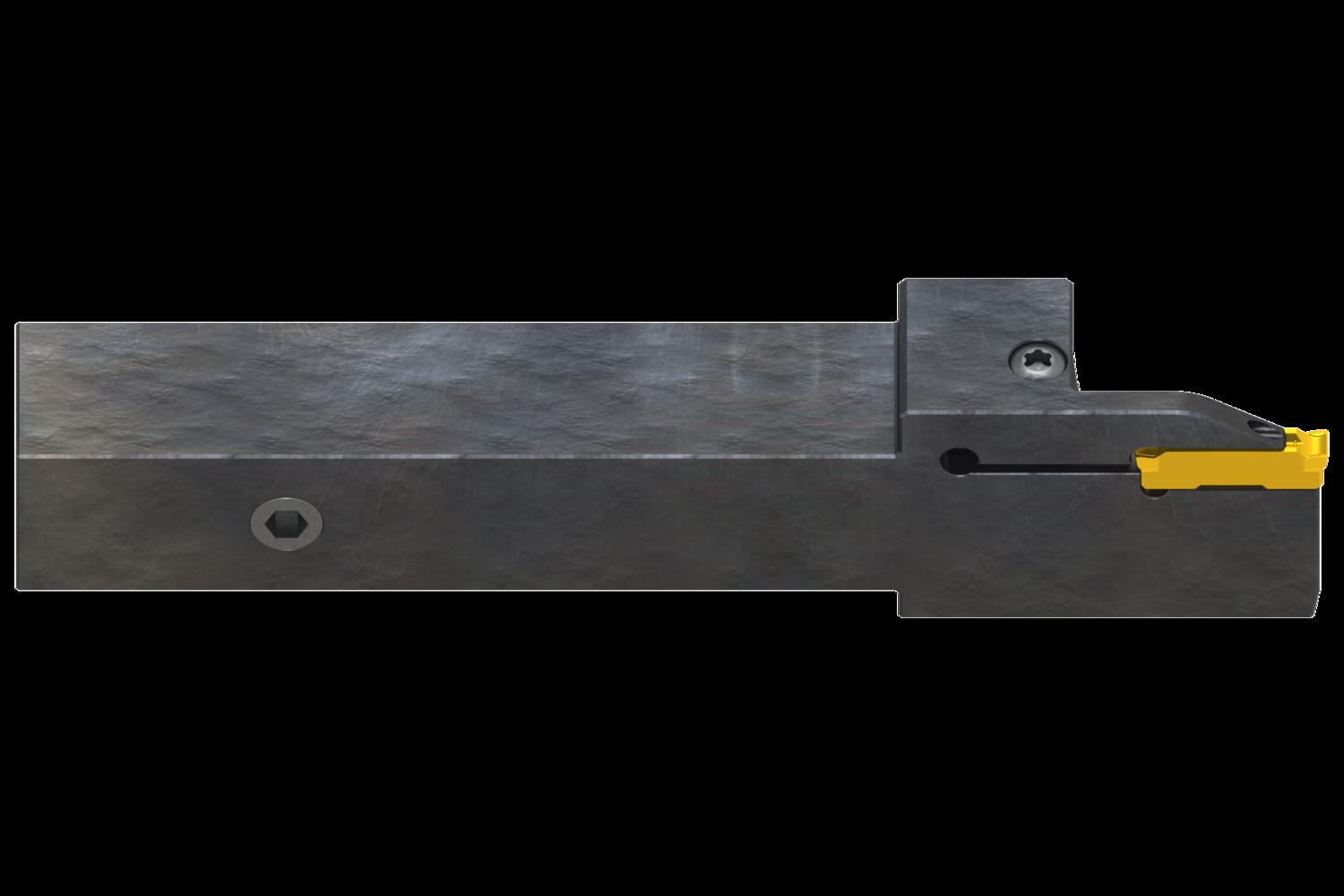

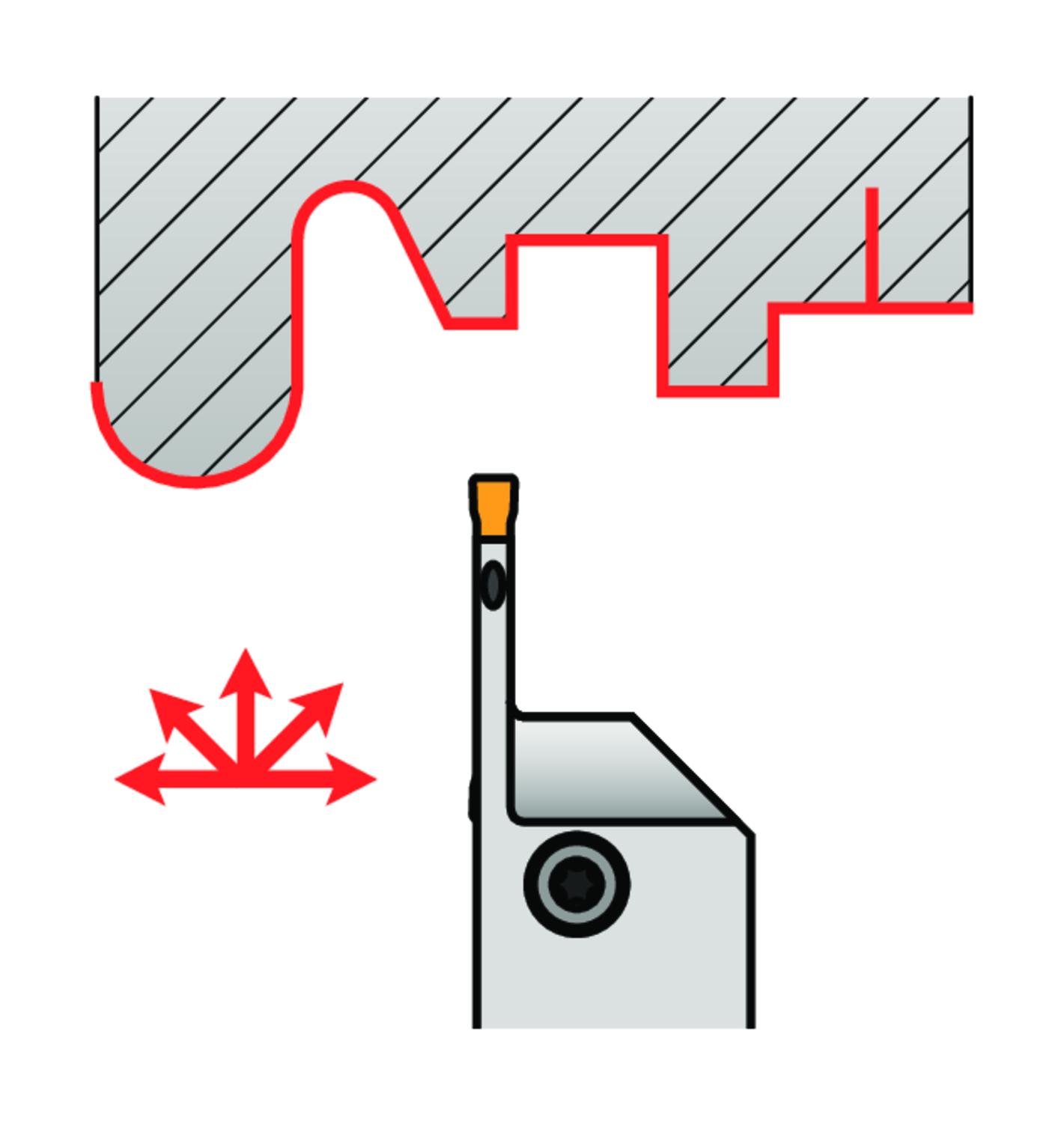

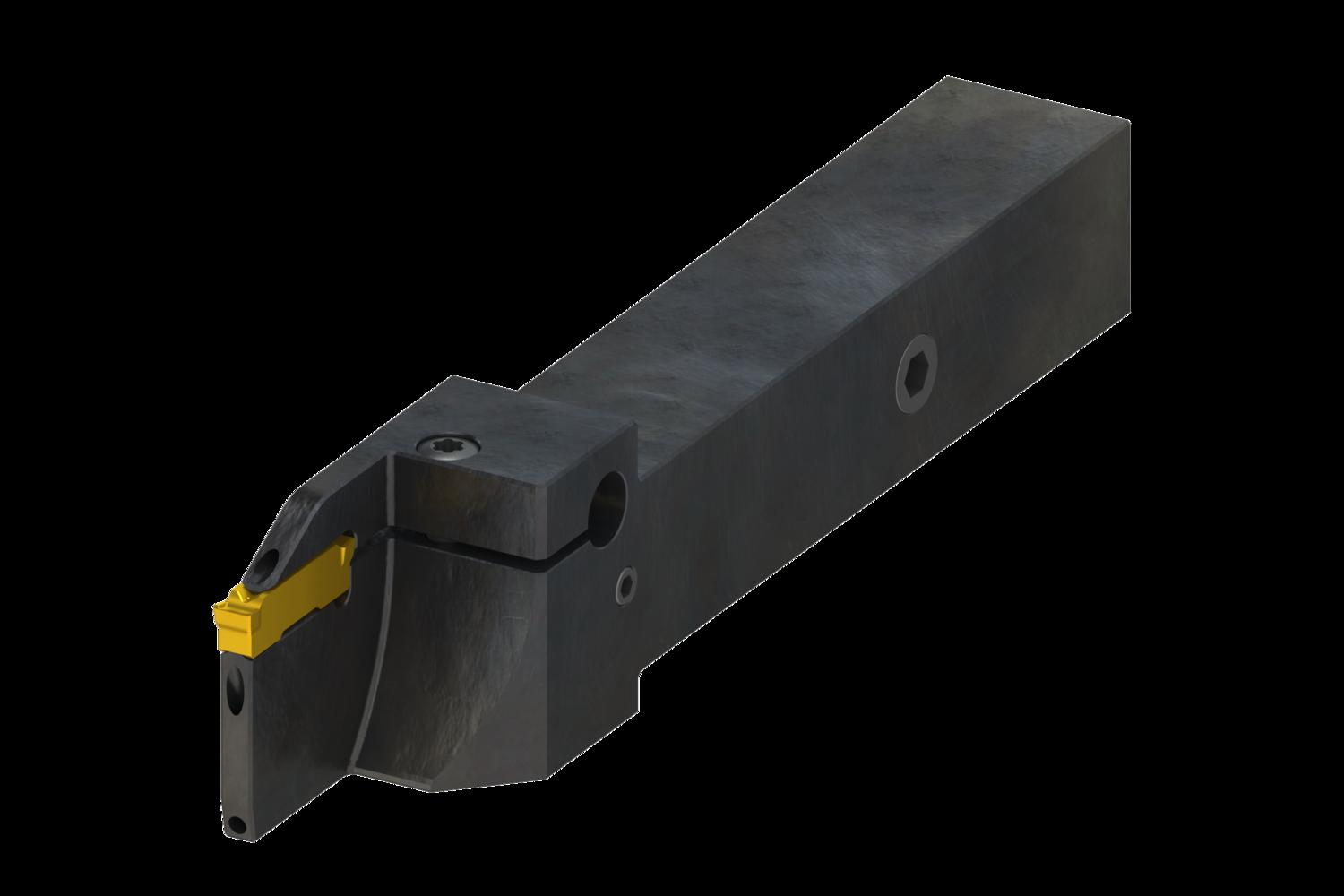

PRAMET GL5-A2525PFL-32-100 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603947689
Product number (SAP): 86039555
Ordering code ANSI: GL5-A2525PFL-32-100
Gross weight – grams: 674.1

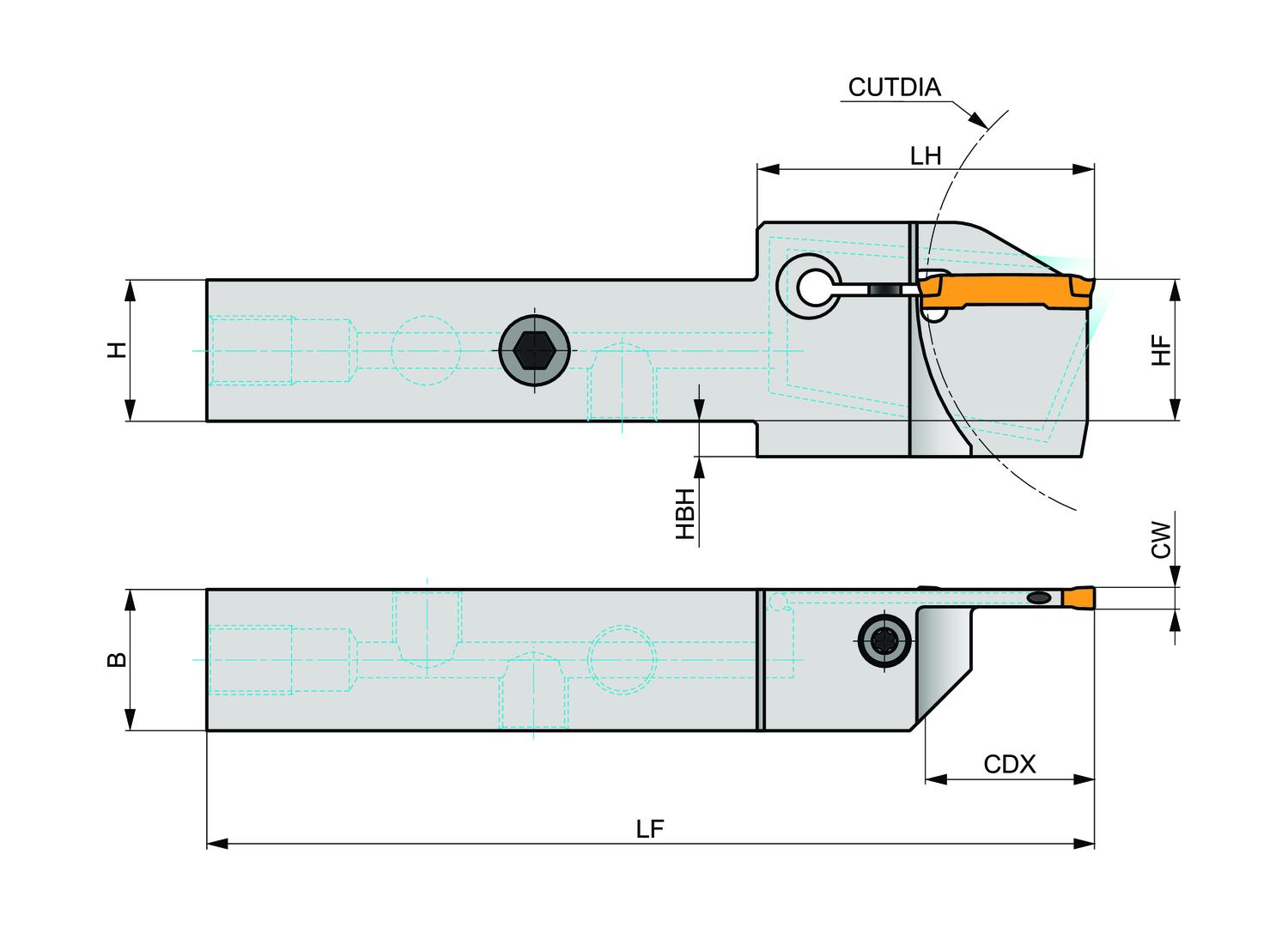

Functional height – millimeter (HF): 25 mm
Head bottom offset height – millimeter (HBH): 5 mm
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional length – millimeter (LF): 170 mm
Cutting width – millimeter (CW): 5 mm
Cutting depth maximum – millimeter (CDX): 32 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 100 mm
Net weight – grams: 674.1
Pocket Size: 5
