PRAMET GL5-D500MMO-MM:G8330 Turning inserts for grooving

Product Code: GL5-D500MMO-MM:G8330

$47.03$42.75 Ex. GST

Product Code: GL5-D500MMO-MM:G8330 SKU GL5-D500MMO-MM:G8330 Categories , ,

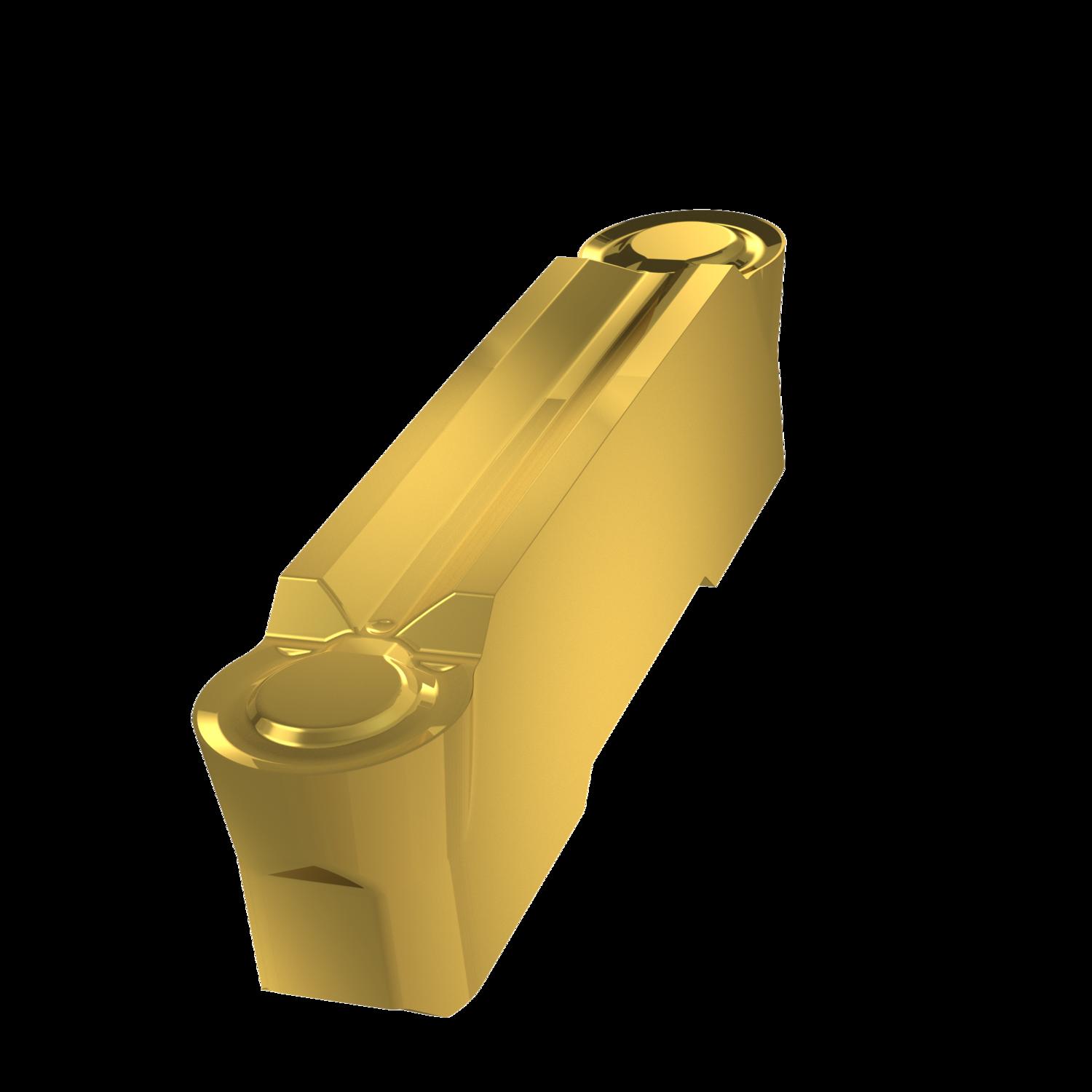

PRAMET GL5-D500MMO-MM:G8330 Turning inserts for grooving

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double ended parting and grooving insert, 26 mm long with a 5mm cutting width and 2.5mm full radius, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron. MM geometry, with full radius shape for copy profiling and longitudinal turning, and continuous to interrupted cuts

Additional information

Weight 0.0457 kg
barcode
Additional Information

Description: Value
EAN number: 3603603844889
Product number (SAP): 80033571
Ordering code ANSI: GL5-D500MMO-MM:G8330
Gross weight – grams: 10.739
Cutting width – millimeter (CW): 5 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.05 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.05 mm
Insert length – millimeter (INSL): 26 mm
Grade: G8330
Corner radius – millimeter (RE): 2.5 mm
Insert Design: GL. D
Chipbreaker manufacturer's designation (CBMD): MM
Primary Tool Lead Angle: Neutral
ISO: GL5-D500MMO-MM:G8330
Pocket Size: 5

Brand

PRAMET
