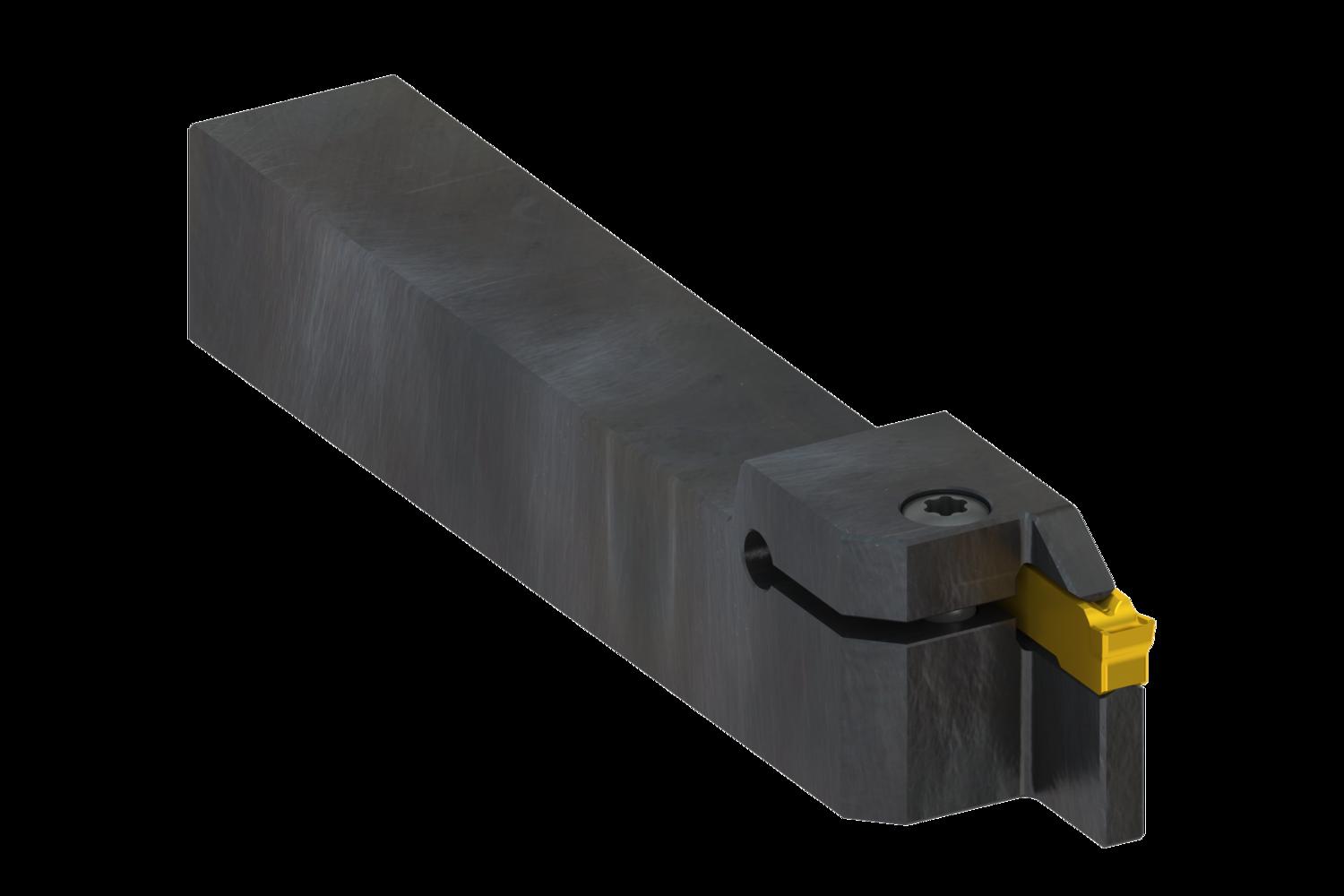

PRAMET GL5-S2020KFR-12 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603816589
Product number (SAP): 86037412
Ordering code ANSI: GL5-S2020KFR-12
Gross weight – grams: 389.5
Functional height – millimeter (HF): 20 mm
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional length – millimeter (LF): 125 mm
Cutting width – millimeter (CW): 5 mm
Cutting depth maximum – millimeter (CDX): 12 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 24 mm
Net weight – grams: 358
Pocket Size: 5
ISO: GL5-S2020KFR-12
