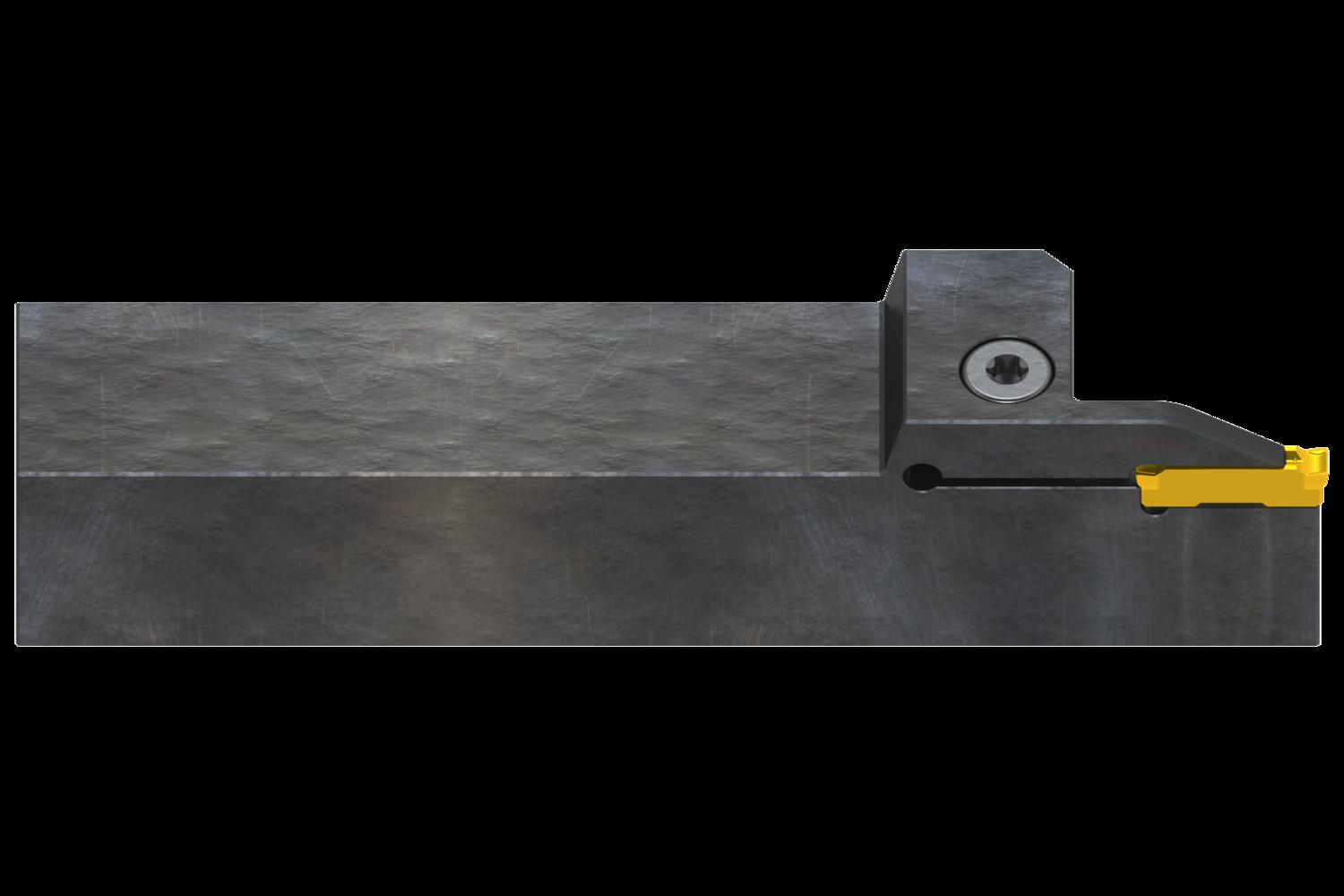

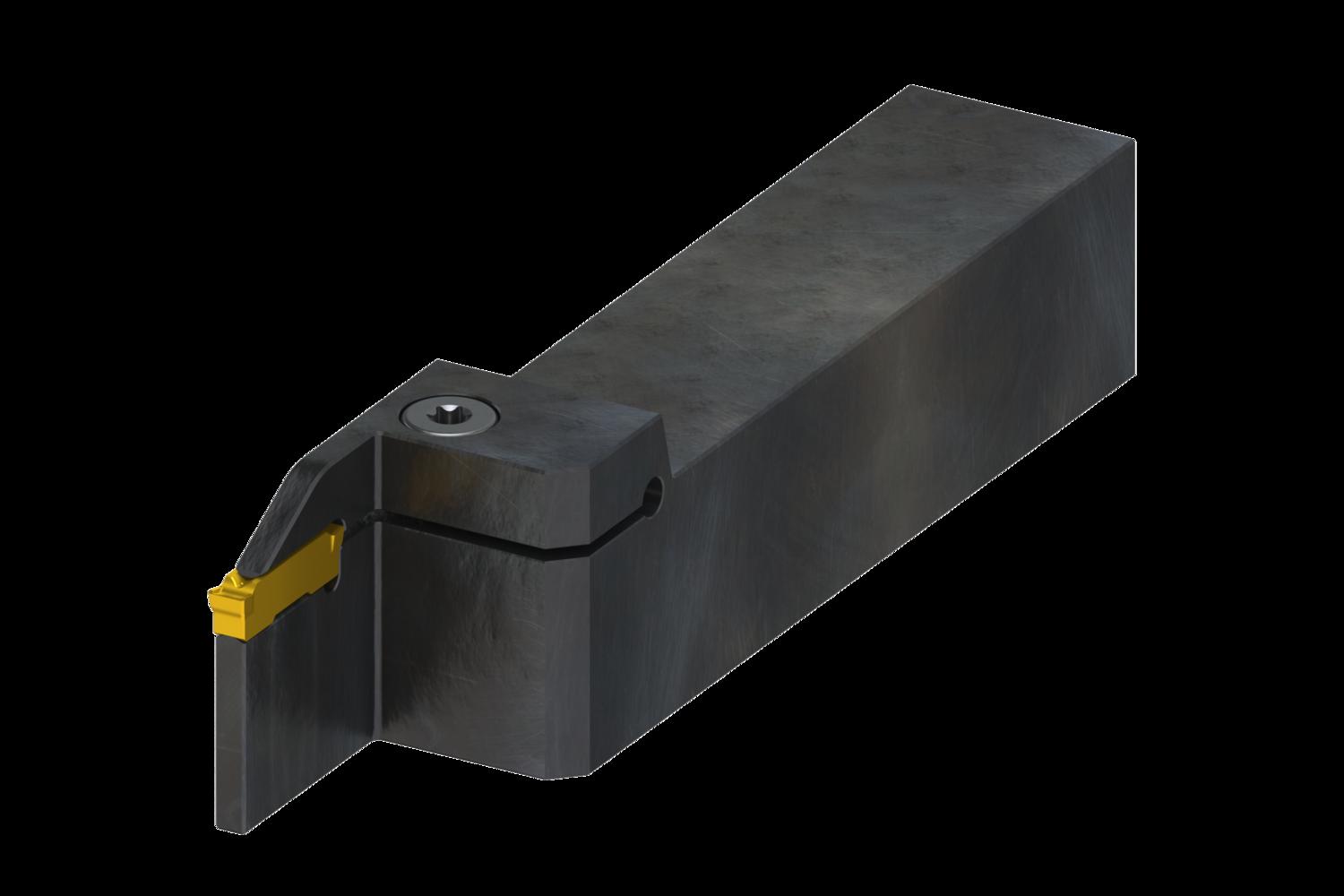

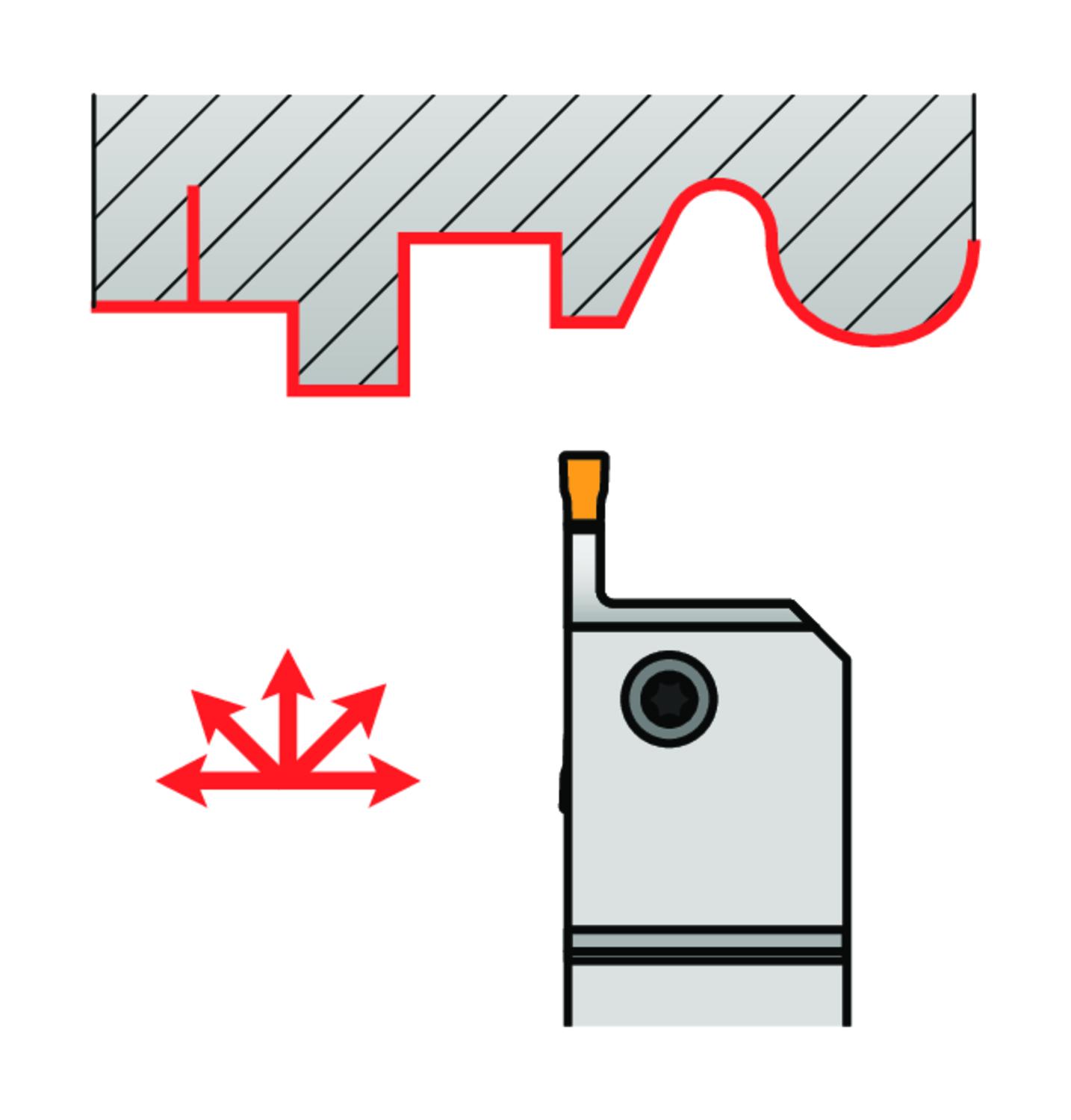

PRAMET GL5-S3232PFL-32 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603947221
Product number (SAP): 86039509
Ordering code ANSI: GL5-S3232PFL-32
Gross weight – grams: 1206.7

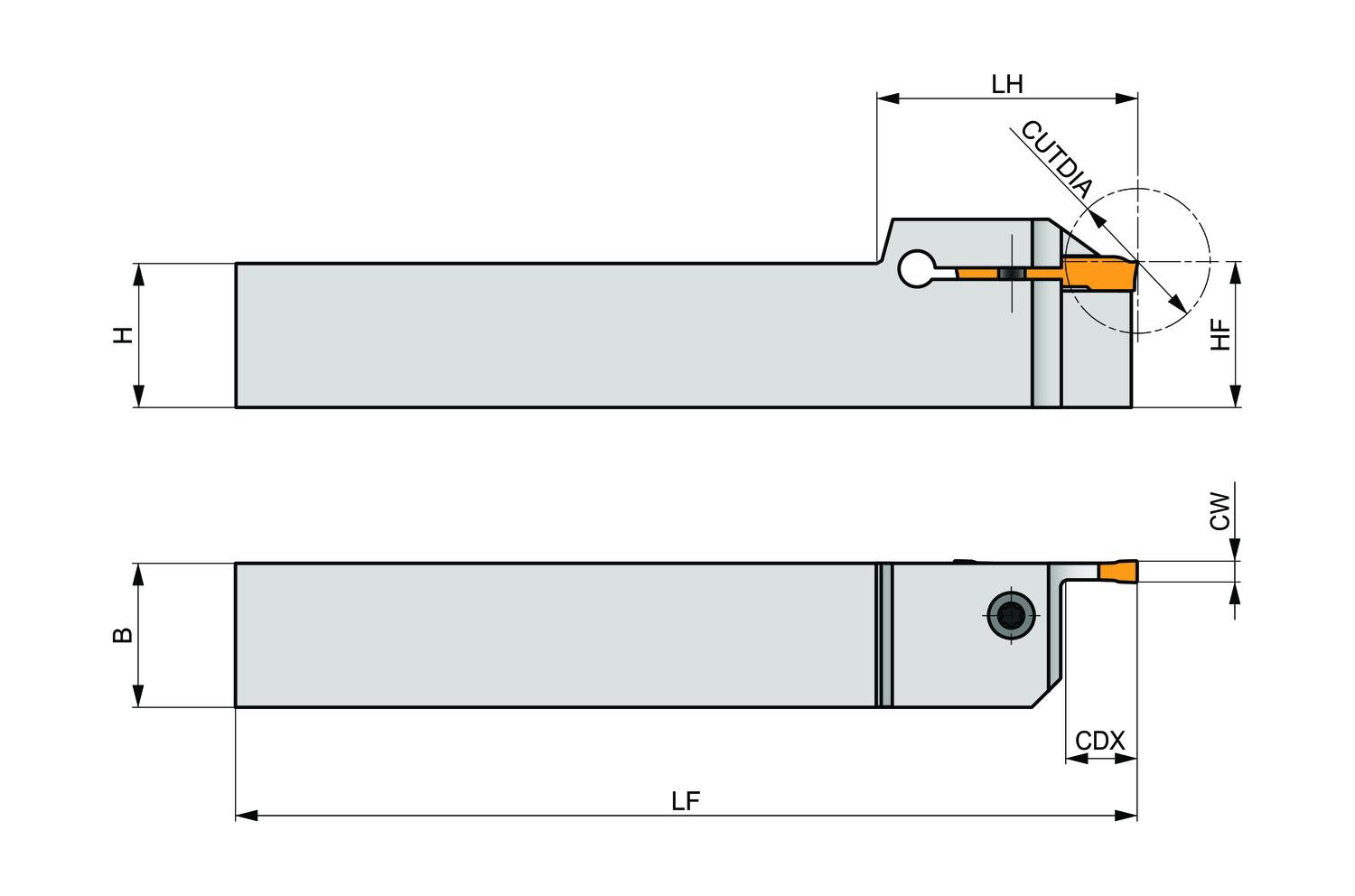

Functional height – millimeter (HF): 32 mm
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 32 mm
Functional length – millimeter (LF): 170 mm
Cutting width – millimeter (CW): 5 mm
Cutting depth maximum – millimeter (CDX): 32 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 64 mm
Net weight – grams: 1146.6
Pocket Size: 5
ISO: GL5-S3232PFL-32
