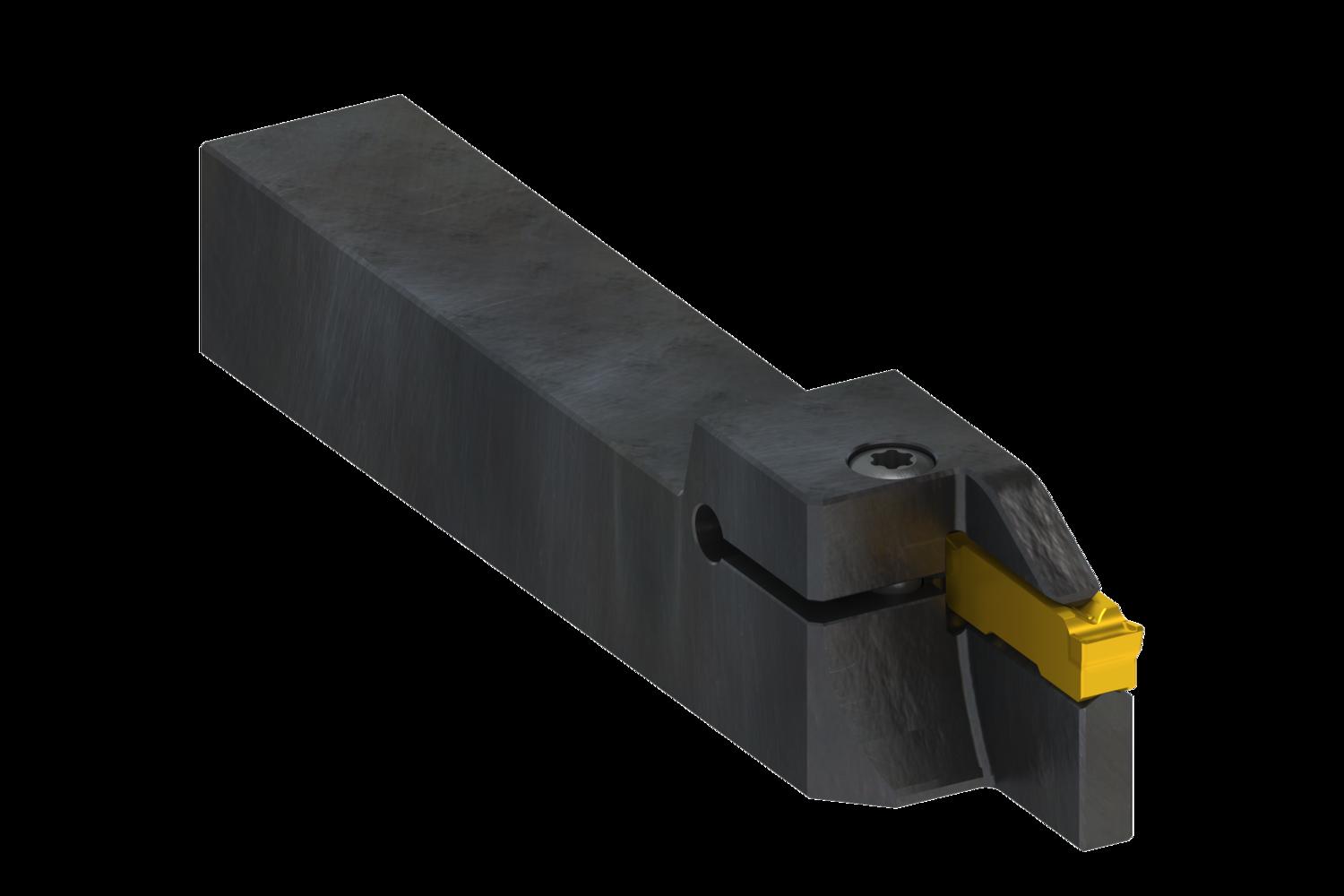

PRAMET GL6-S2020KFR-20-80 Turning holders for parting, grooving and copy turning

Product Code: GL6-S2020KFR-20-80

$254.93$231.75 Ex. GST

Product Code: GL6-S2020KFR-20-80 SKU GL6-S2020KFR-20-80 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Top clamp grooving tool for holding a 25mm long double ended insert with 6mm cutting width (designation GL6-D… ), right handed with insert parallel to the shank for a maximum parting diameter of 80mm, shank height 20mm, width 20mm and tool length 125mm for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off

Additional information

Weight 0.2475 kg
barcode
Additional Information

Description: Value
EAN number: 3603603679108
Product number (SAP): 86035530
Ordering code ANSI: GL6-S2020KFR-20-80
Gross weight – grams: 385
Functional height – millimeter (HF): 20 mm
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional length – millimeter (LF): 125 mm
Cutting width – millimeter (CW): 6 mm
Cutting depth maximum – millimeter (CDX): 20 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 80 mm
Net weight – grams: 385
Pocket Size: 6
ISO: GL6-S2020KFR-20-80

Brand

PRAMET
