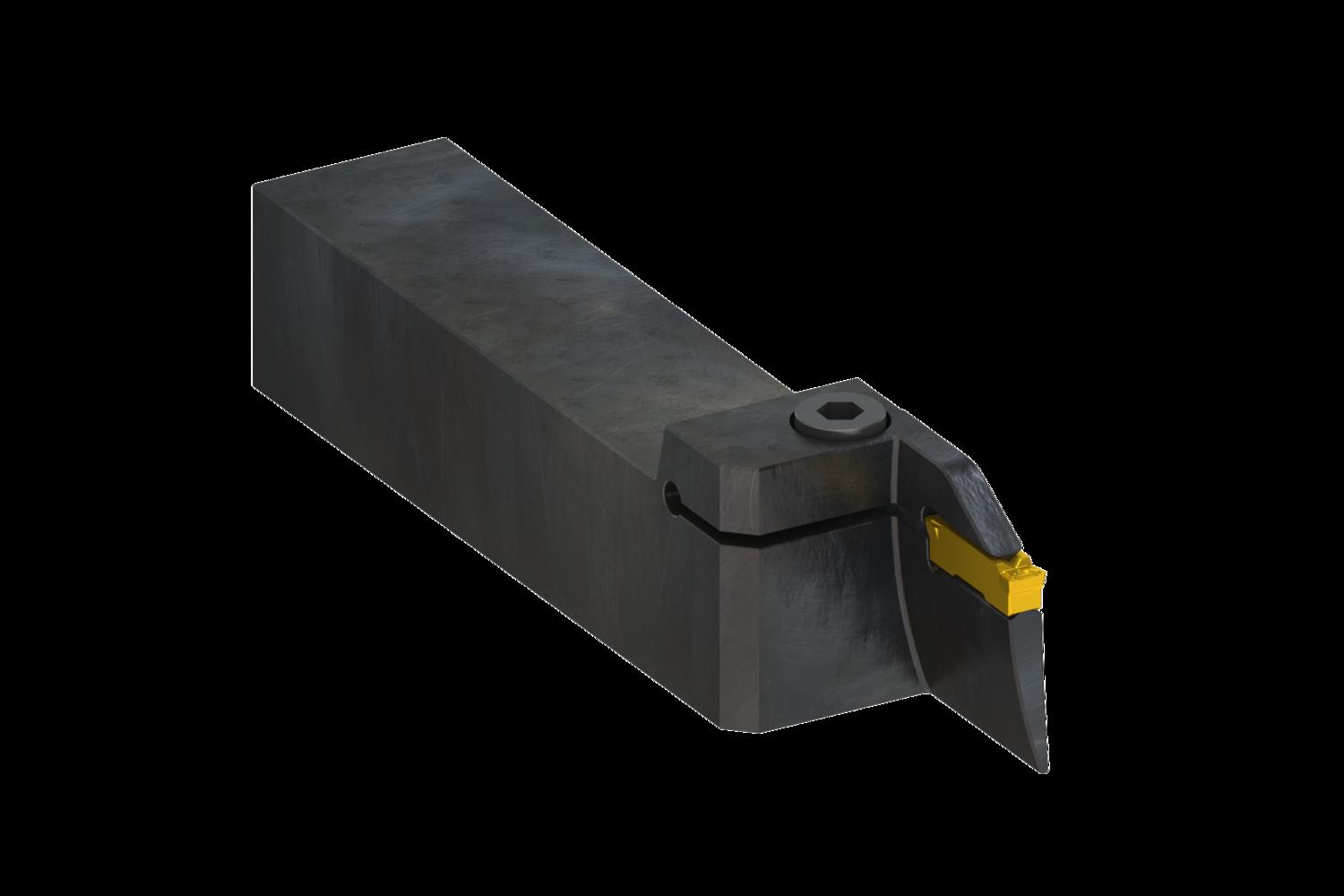

PRAMET GL6-S3232PFR-32-L950180 Turning holders for parting, grooving and copy turning

Description: Value

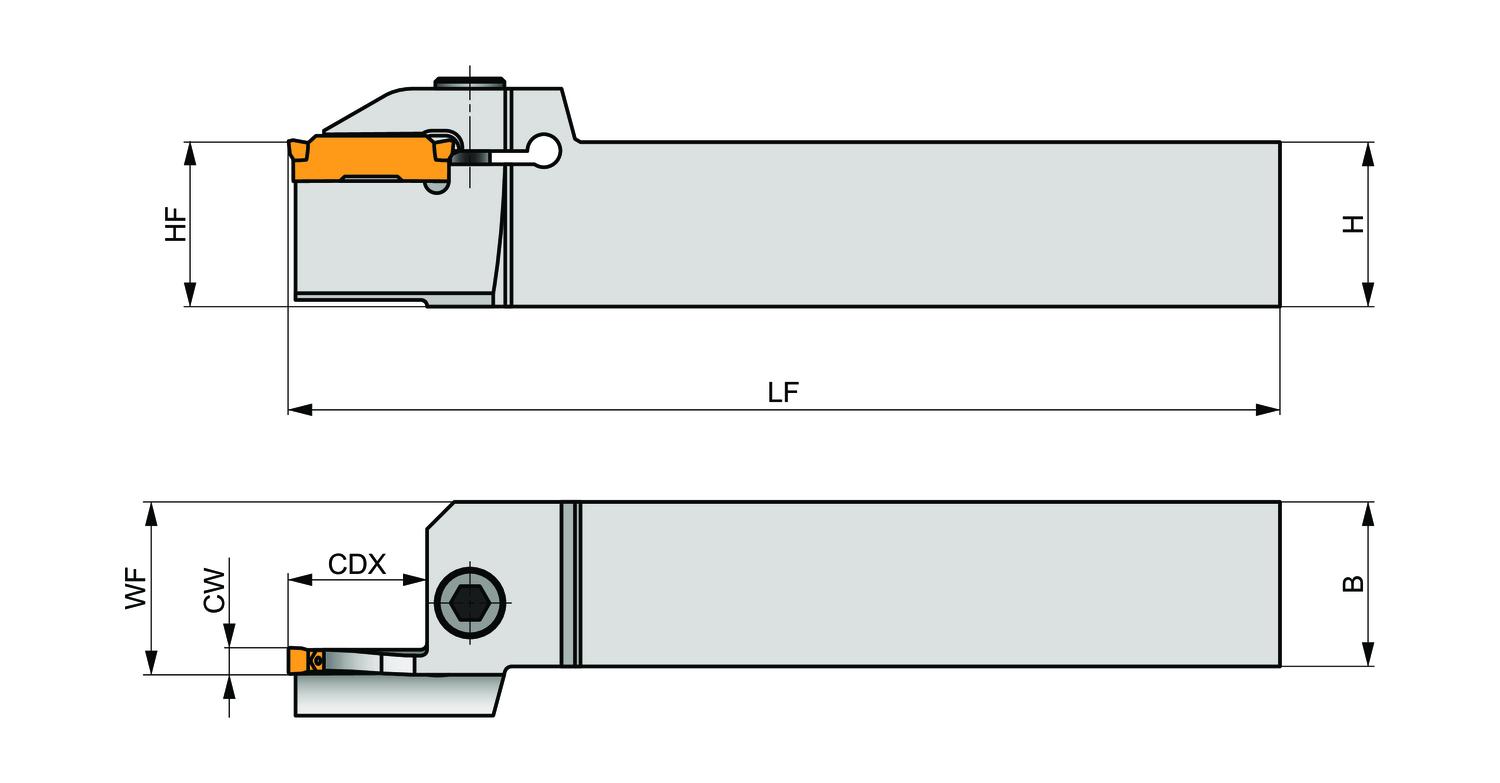

Functional height – millimeter (HF): 32 mm
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 32 mm
Functional width – millimeter (WF): 32.4 mm
Functional length – millimeter (LF): 170 mm
Cutting width – millimeter (CW): 6 mm

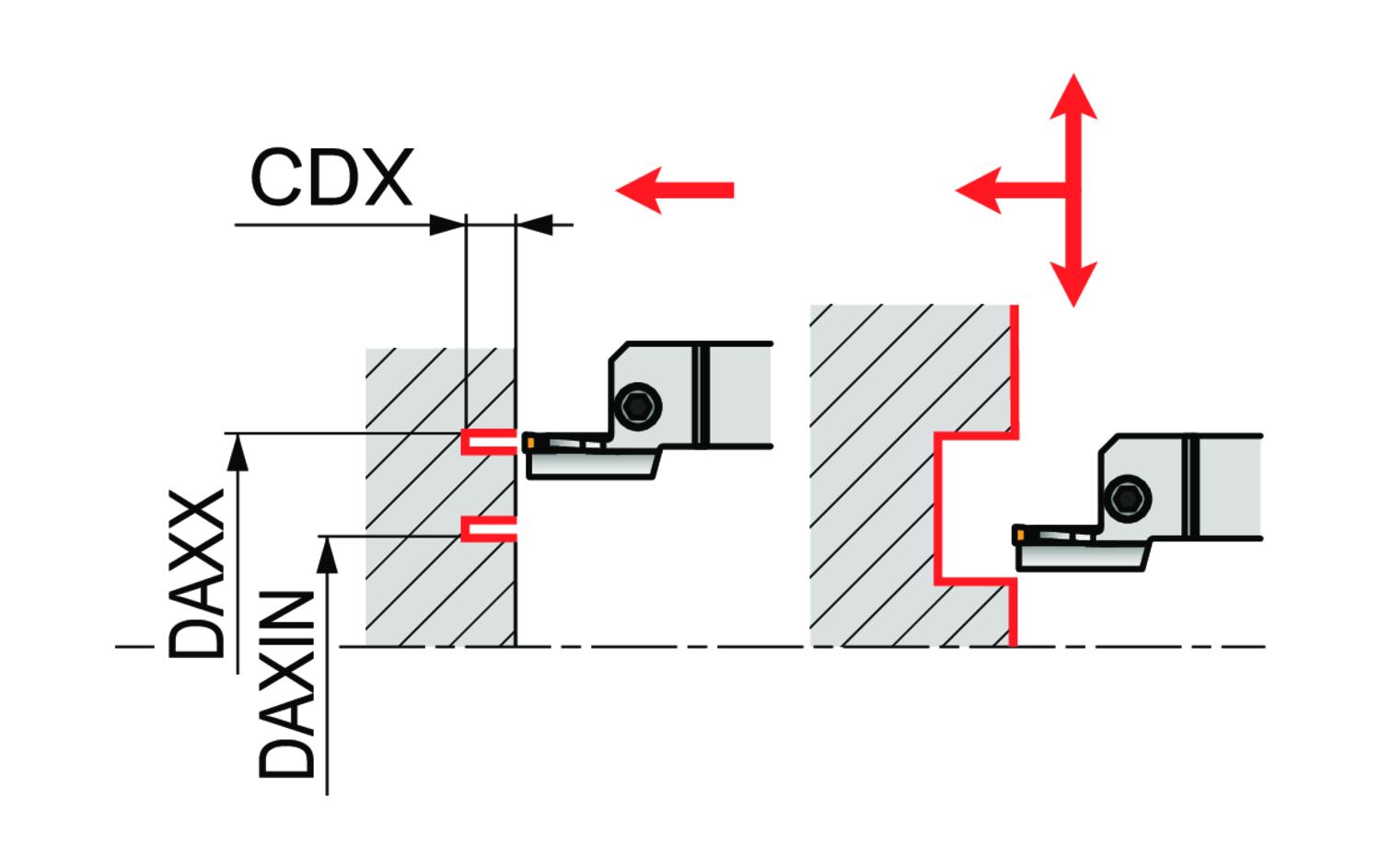

Cutting depth maximum – millimeter (CDX): 32 mm
Maximum axial groove outside diameter – millimeter (DAXX): 950 mm
Minimum axial groove inside diameter – millimeter (DAXIN): 180 mm
Pocket Size: 6
