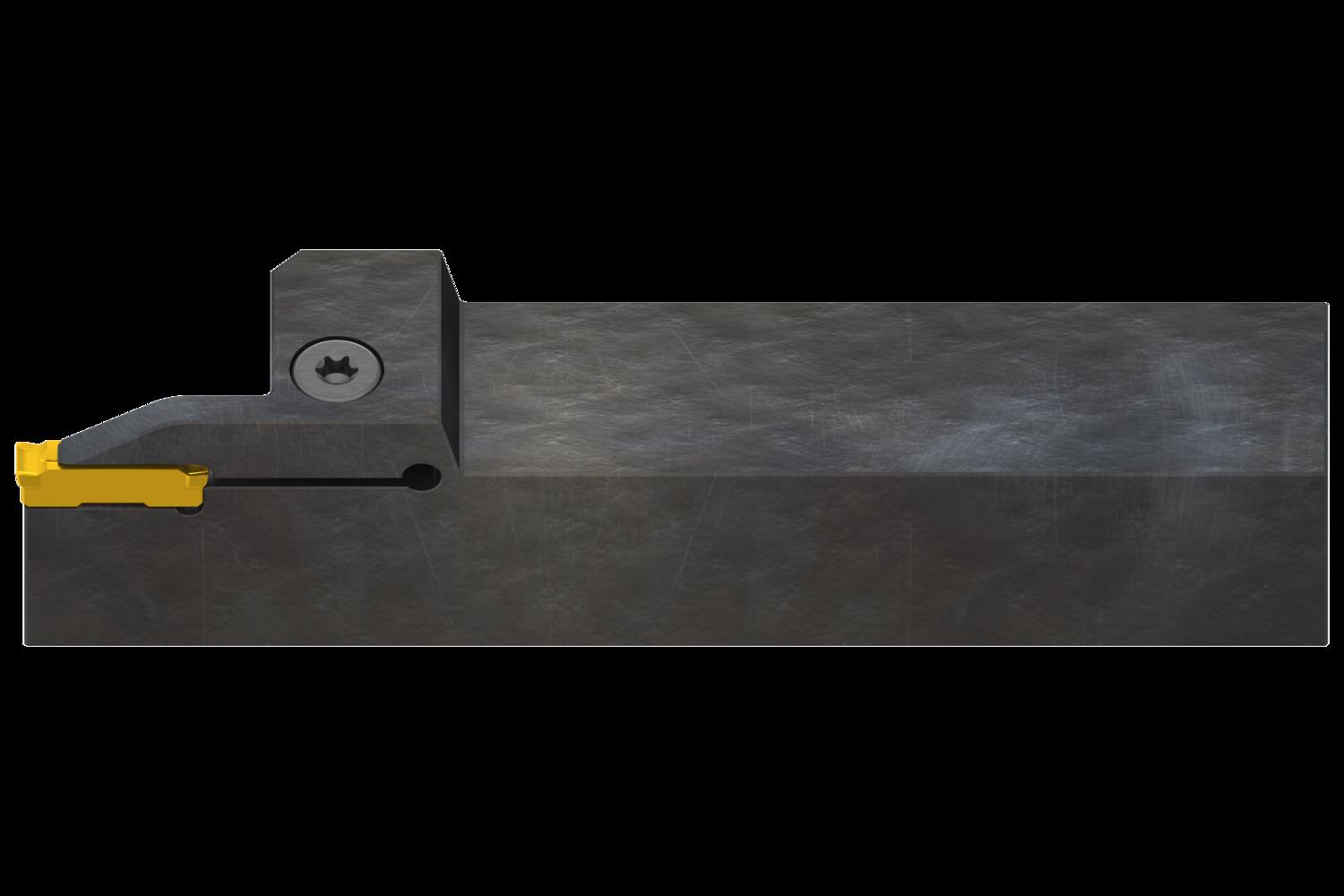

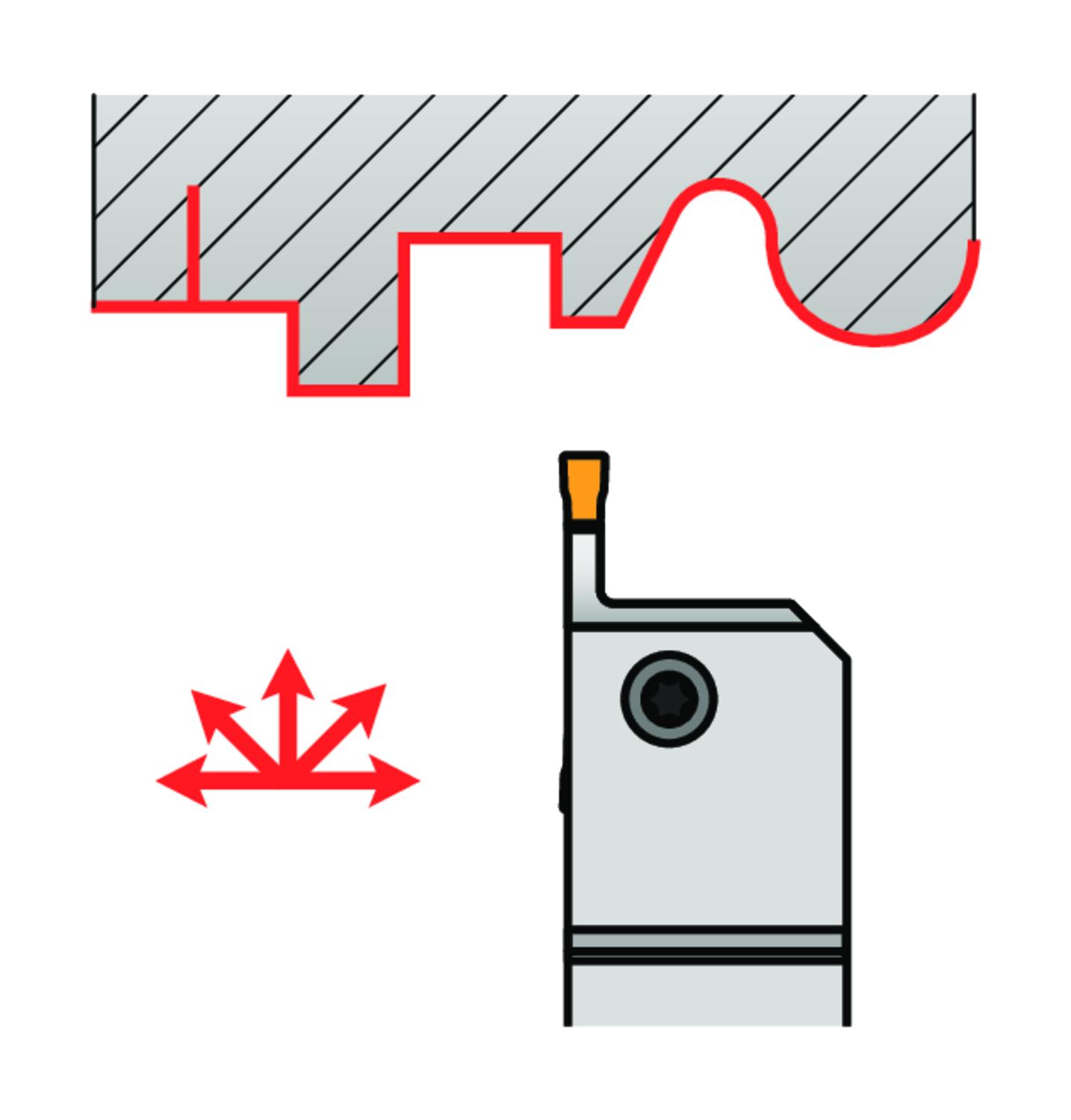

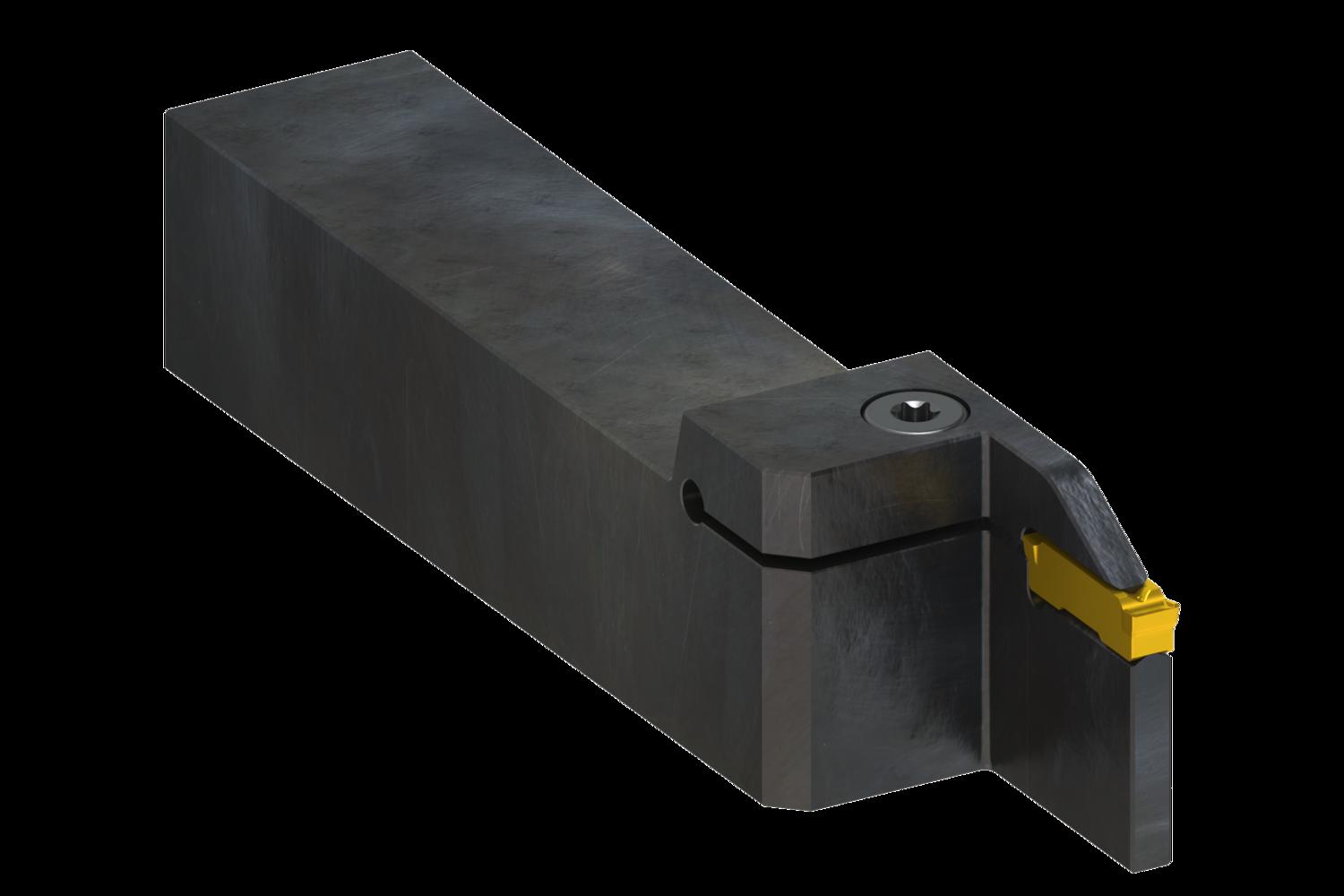

PRAMET GL6-S3232PFR-32 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603947252
Product number (SAP): 86039512
Ordering code ANSI: GL6-S3232PFR-32
Gross weight – grams: 1219.3

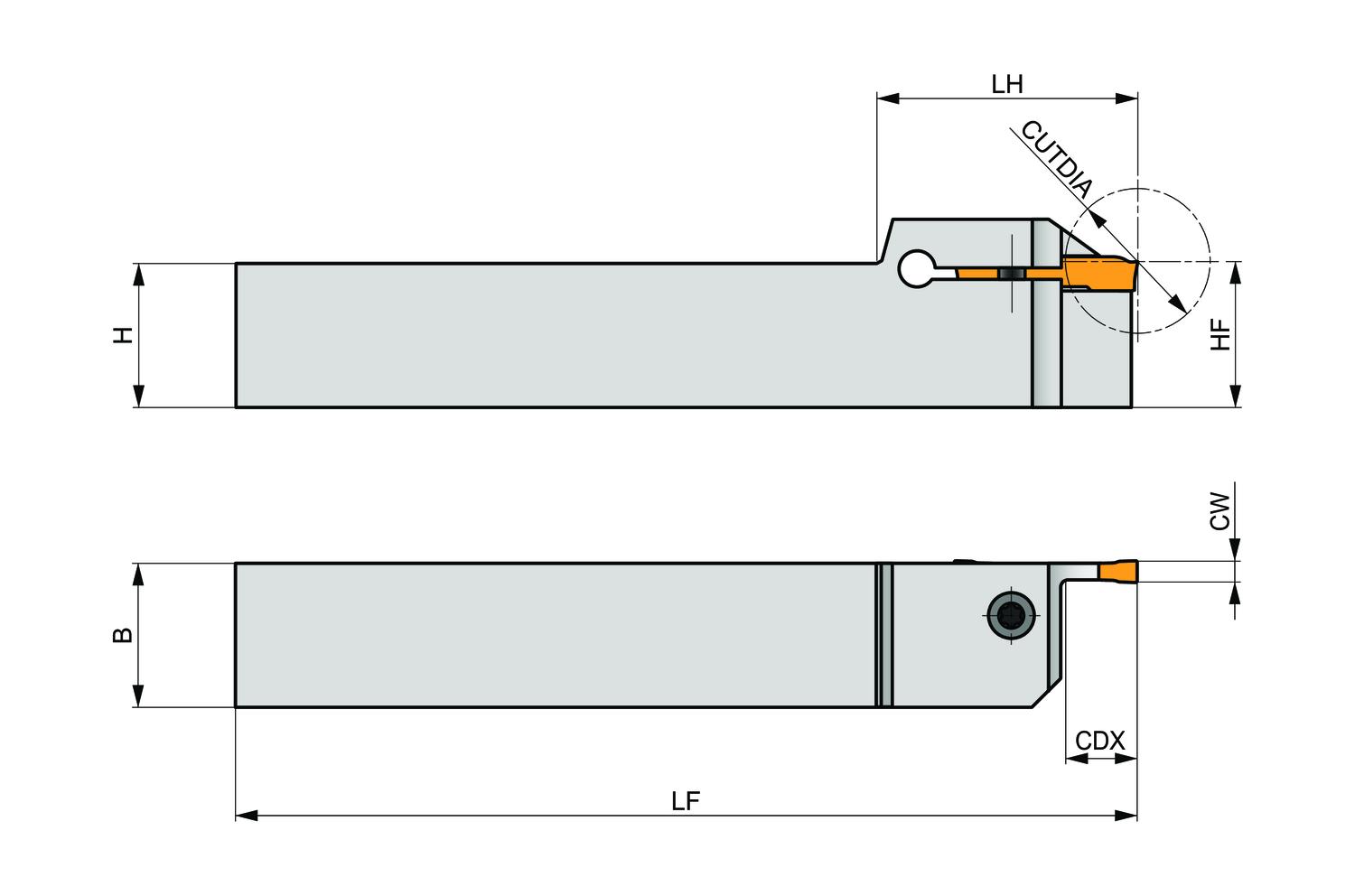

Functional height – millimeter (HF): 32 mm
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 32 mm
Functional length – millimeter (LF): 170 mm
Cutting width – millimeter (CW): 6 mm
Cutting depth maximum – millimeter (CDX): 32 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 64 mm
Net weight – grams: 1218.7
Pocket Size: 6
ISO: GL6-S3232PFR-32
