PRAMET HNGX 0604ANSN-F:M8330 Milling - other and drilling inserts clamped by screw

Description

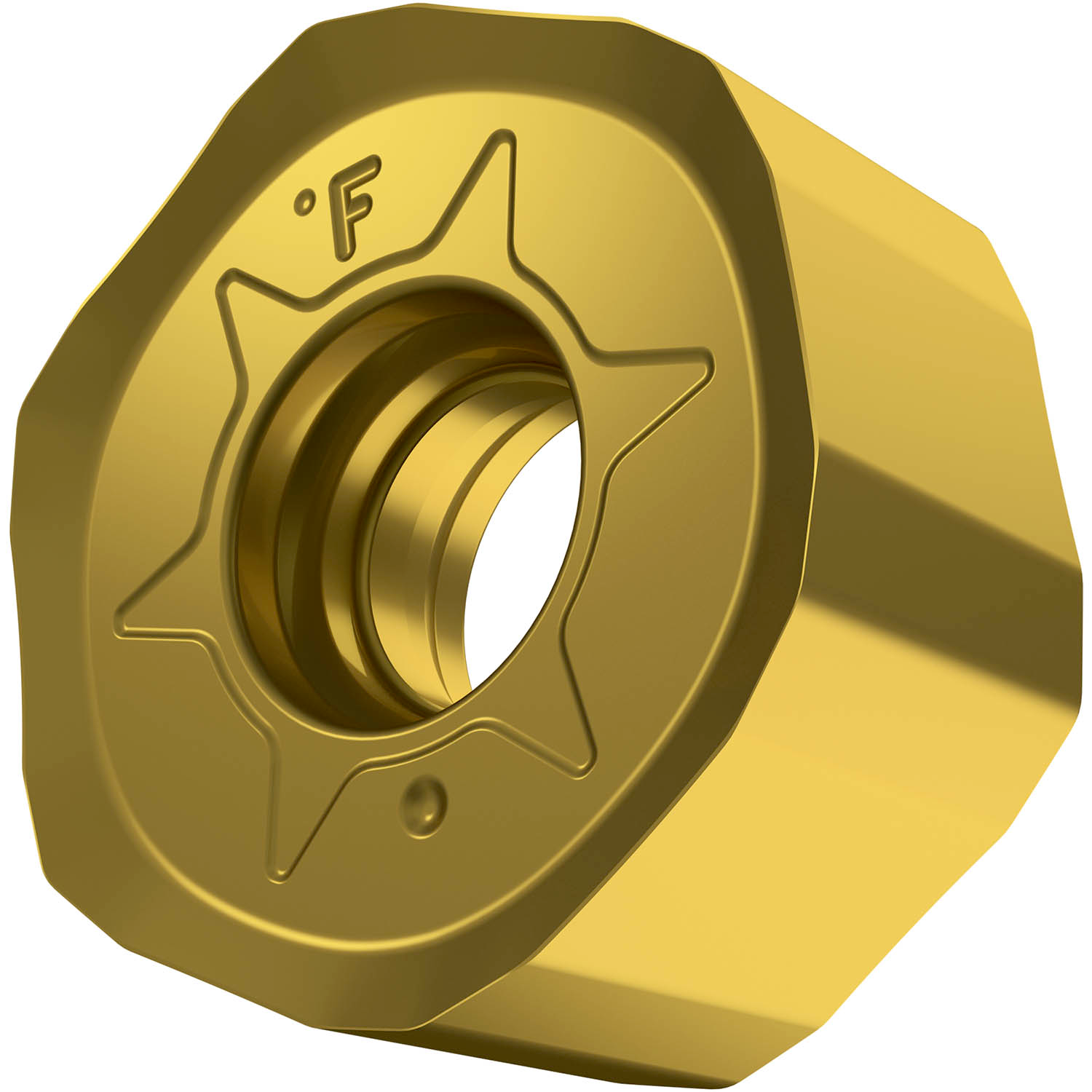

Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel with face mills SHN06C

Additional information

Weight	0.0321 kg
barcode
Additional Information	Description: Value EAN number: 3603603385566 Product number (SAP): 80030083 Ordering code ANSI: HNGX 0604ANSN-F:M8330 Gross weight – grams: 4.924 Inscribed circle diameter – millimeter (IC): 10.5 mm Fixing hole diameter – millimeter (D1): 3.7 mm Insert thickness – millimeter (S): 4.76 mm Grade: M8330 Insert Clearance Code and Angle: N 0° Insert size: 06 Insert Thickness: 04 Insert Type: X Chipbreaker manufacturer's designation (CBMD): F Insert shape code (SC): H – hexagonal ISO: HNGX0604ANSN-F:M8330

PRAMET HNGX 0604ANSN-F:M8330 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
