PRAMET HNGX 0604ANSN-F:M8340 Milling – other and drilling inserts clamped by screw

Product Code: HNGX 0604ANSN-F:M8340

$33.09$30.08 Ex. GST

Product Code: HNGX 0604ANSN-F:M8340 SKU HNGX 0604ANSN-F:M8340 Categories , ,
PRAMET HNGX 0604ANSN-F:M8340 Milling - other and drilling inserts clamped by screw

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

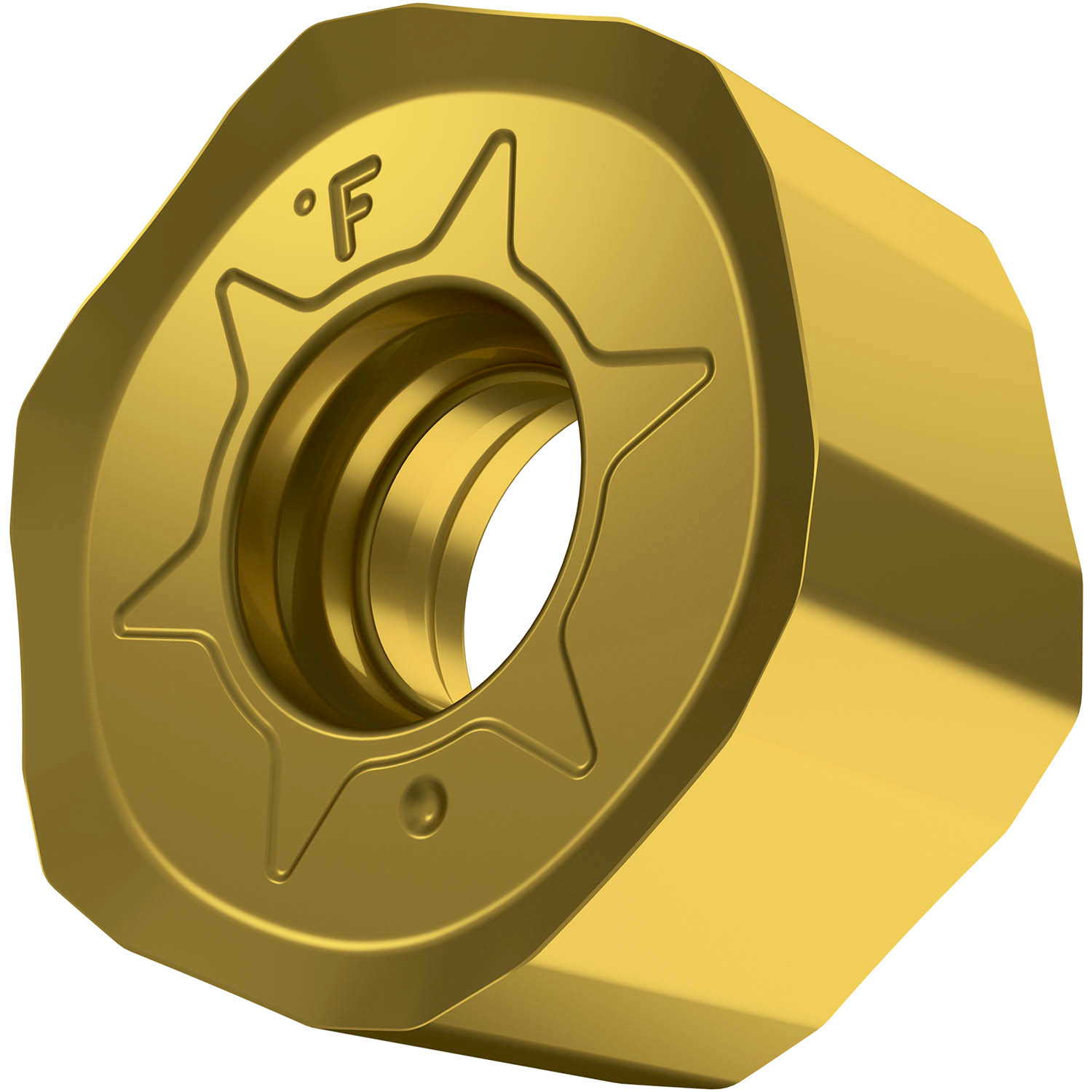

Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel with face mills SHN06C

Additional information

Weight 0.0321 kg
barcode
Additional Information

Description: Value
EAN number: 3603602993601
Product number (SAP): 80024937
Ordering code ANSI: HNGX 0604ANSN-F:M8340
Gross weight – grams: 4.815
Inscribed circle diameter – millimeter (IC): 10.5 mm
Fixing hole diameter – millimeter (D1): 3.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8340
Insert Clearance Code and Angle: N 0°
Insert size: 06
Insert Thickness: 04
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): F
Insert shape code (SC): H – hexagonal
ISO: HNGX0604ANSN-F:M8340

Brand

PRAMET
