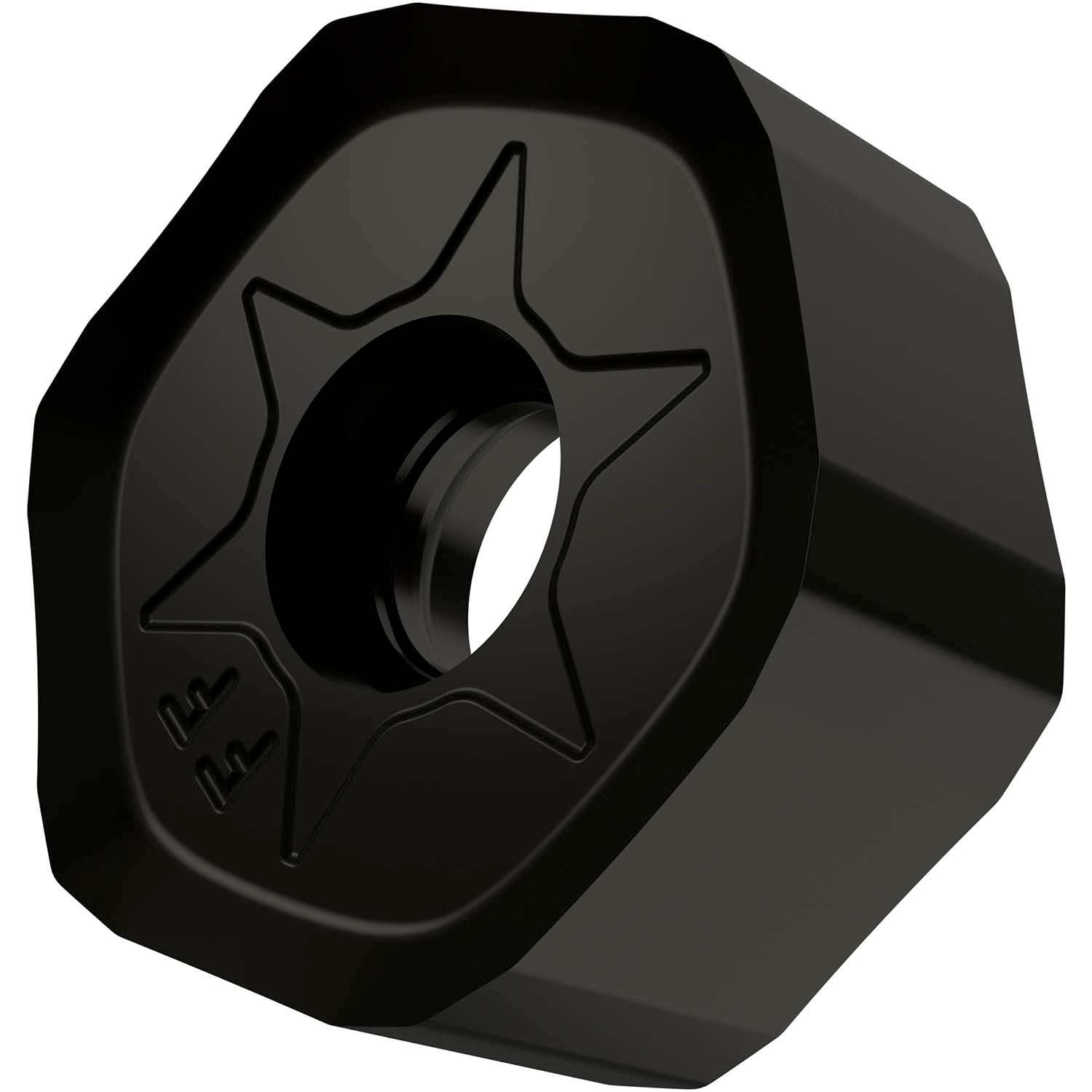

PRAMET HNGX 0906ANEN-FF:M9340 Milling - other and drilling inserts clamped by screw

Description

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of 5.0mm, with an indexing accuracy according to ISO-tolerance class-G and FF geometry with rounded cutting edges, M9340 MT-CVD coated WC-Co carbide within ISO-grade ranges P35 -P50 and M30 -M40 for machining of steel and stainless-steel with face mills SHN09C

Additional information

Weight	0.0436 kg
barcode
Additional Information	Description: Value EAN number: 3603602910110 Product number (SAP): 80022516 Ordering code ANSI: HNGX 0906ANEN-FF:M9340 Gross weight – grams: 16.429 Inscribed circle diameter – millimeter (IC): 16.5 mm Fixing hole diameter – millimeter (D1): 4.9 mm Insert thickness – millimeter (S): 6.35 mm Grade: M9340 Insert Clearance Code and Angle: N 0° Insert size: 09 Insert Thickness: 06 Insert Type: X Chipbreaker manufacturer's designation (CBMD): FF Insert shape code (SC): H – hexagonal ISO: HNGX0906ANEN-FF:M9340

PRAMET HNGX 0906ANEN-FF:M9340 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
