PRAMET HNGX 0906ANSN-M:M9340 Milling – other and drilling inserts clamped by screw

Product Code: HNGX 0906ANSN-M:M9340

$44.87$40.79 Ex. GST

Product Code: HNGX 0906ANSN-M:M9340 SKU HNGX 0906ANSN-M:M9340 Categories , ,
PRAMET HNGX 0906ANSN-M:M9340 Milling - other and drilling inserts clamped by screw

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

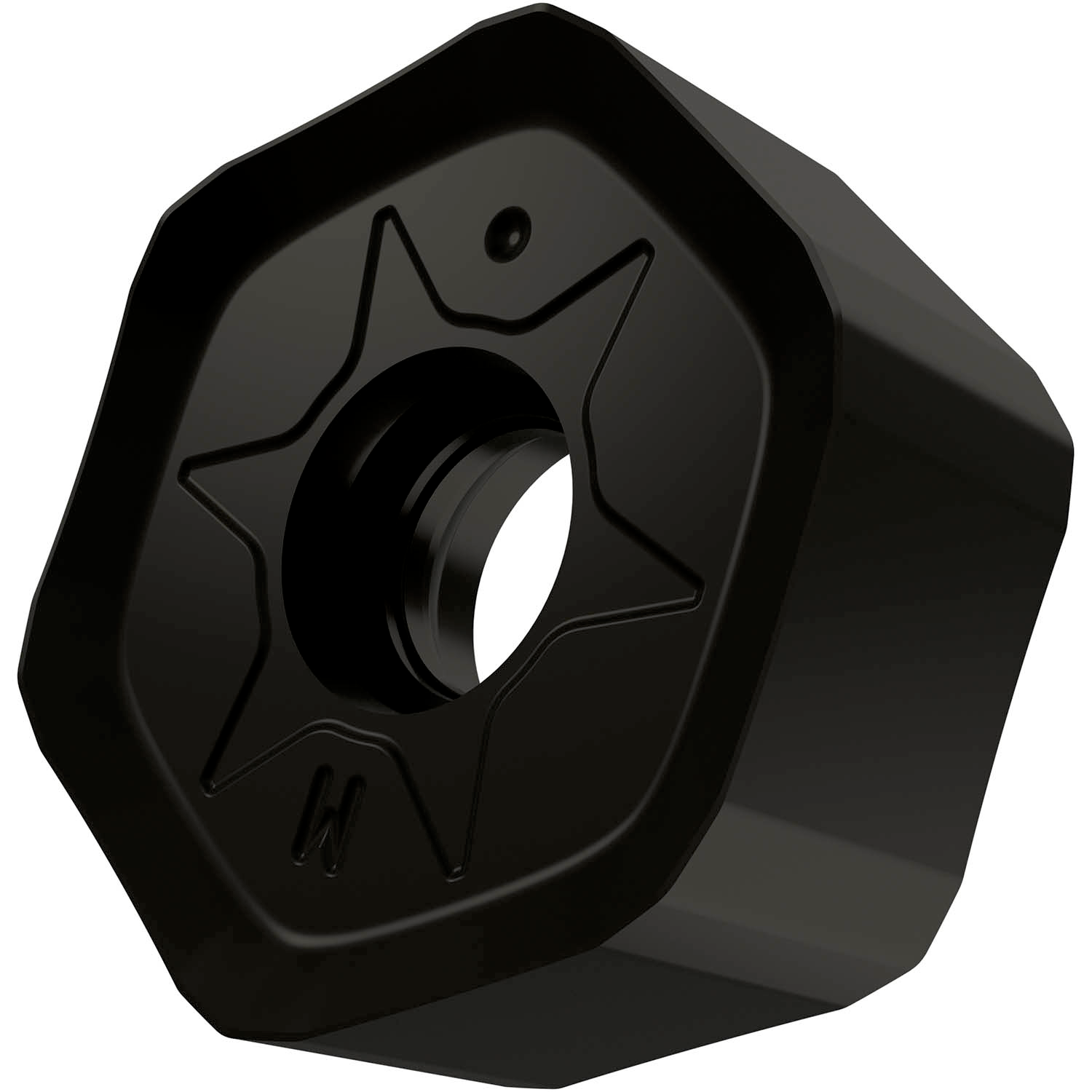

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of 5.0mm, with an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range P35 -P50 for machining of steel with face mills SHN09C

Additional information

Weight 0.0436 kg
barcode
Additional Information

Description: Value
EAN number: 3603602909961
Product number (SAP): 80022470
Ordering code ANSI: HNGX 0906ANSN-M:M9340
Gross weight – grams: 18
Inscribed circle diameter – millimeter (IC): 16.5 mm
Fixing hole diameter – millimeter (D1): 4.9 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: M9340
Insert Clearance Code and Angle: N 0°
Insert size: 09
Insert Thickness: 06
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): H – hexagonal
ISO: HNGX0906ANSN-M:M9340

Brand

PRAMET
