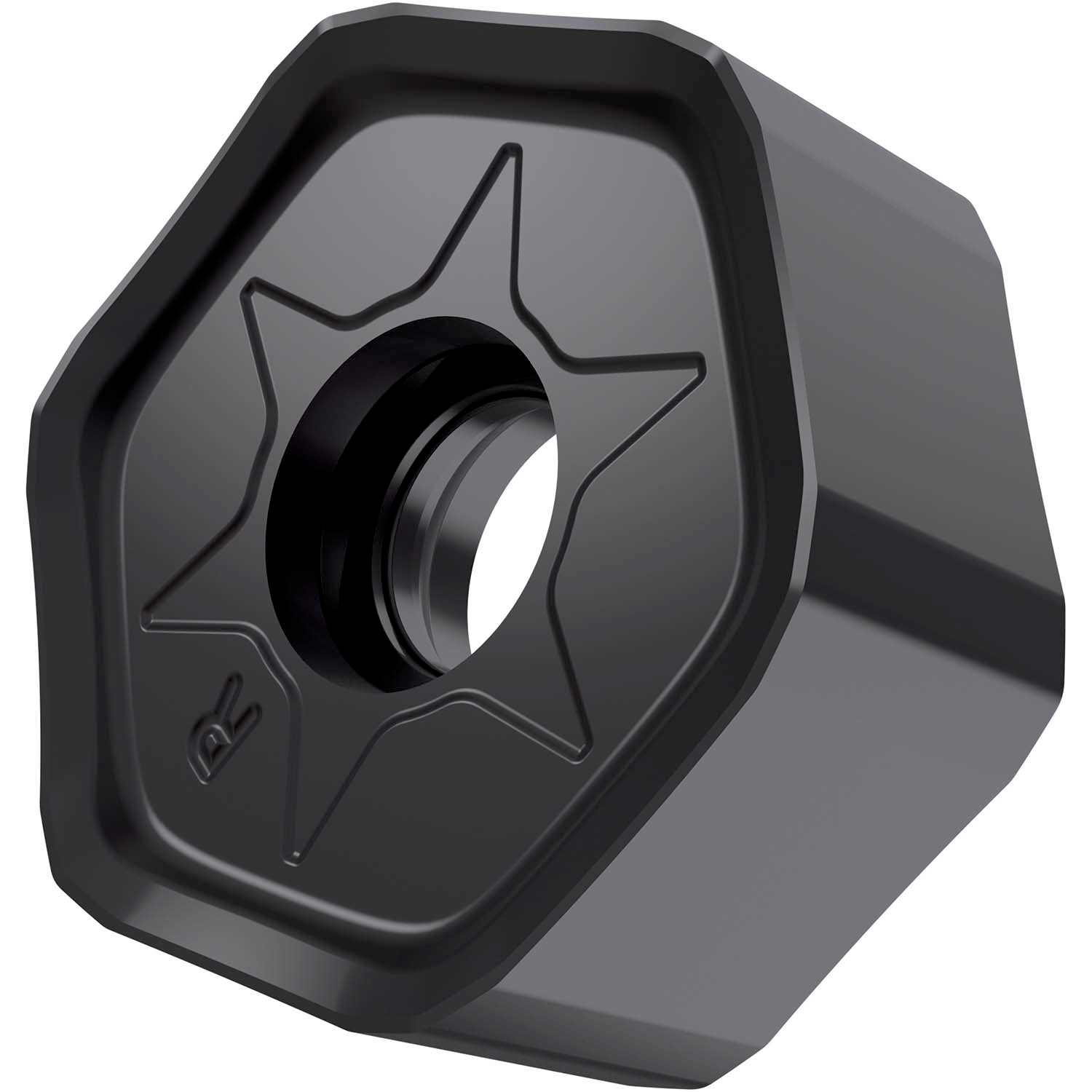

PRAMET HNGX 0906ANSN-R:8215 Milling - other and drilling inserts clamped by screw

Description

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of 5.0mm, with an indexing accuracy according to ISO-tolerance class-G and R geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10 -P20 and K10 -K25 for machining of steel and cast-iron with face mills SHN09C

Additional information

Weight	0.0429 kg
barcode
Additional Information	Description: Value EAN number: 3603602887672 Product number (SAP): 80014541 Ordering code ANSI: HNGX 0906ANSN-R:8215 Gross weight – grams: 17.674 Inscribed circle diameter – millimeter (IC): 16.5 mm Fixing hole diameter – millimeter (D1): 4.9 mm Insert thickness – millimeter (S): 6.35 mm Grade: 8215 Insert Clearance Code and Angle: N 0° Insert size: 09 Insert Thickness: 06 Insert Type: X Chipbreaker manufacturer's designation (CBMD): R Insert shape code (SC): H – hexagonal ISO: HNGX0906ANSN-R:8215

PRAMET HNGX 0906ANSN-R:8215 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
