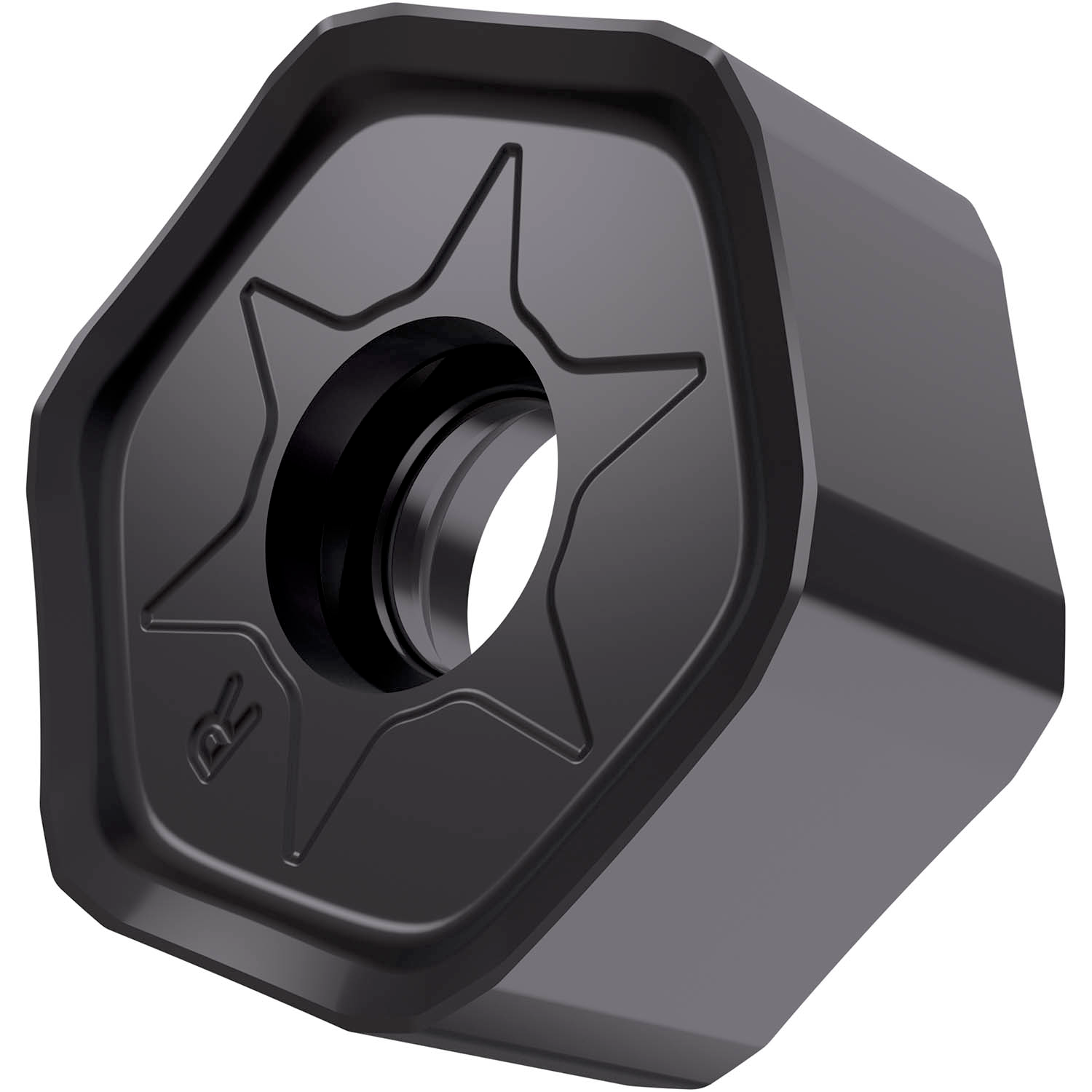

PRAMET HNGX 0906ANSN-R:M8310 Milling – other and drilling inserts clamped by screw

Product Code: HNGX 0906ANSN-R:M8310

$44.87$40.79 Ex. GST

Product Code: HNGX 0906ANSN-R:M8310 SKU HNGX 0906ANSN-R:M8310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of 5.0mm, with an indexing accuracy according to ISO-tolerance class-G and R geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01 -P10 and K01 -K10 for machining of steel and cast-iron with face mills SHN09C

Additional information

Weight 0.0436 kg
barcode
Additional Information

Description: Value
EAN number: 3603603072527
Product number (SAP): 80026107
Ordering code ANSI: HNGX 0906ANSN-R:M8310
Gross weight – grams: 17.531
Inscribed circle diameter – millimeter (IC): 16.5 mm
Fixing hole diameter – millimeter (D1): 4.9 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: M8310
Insert Clearance Code and Angle: N 0°
Insert size: 09
Insert Thickness: 06
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): H – hexagonal
ISO: HNGX0906ANSN-R:M8310

Brand

PRAMET
