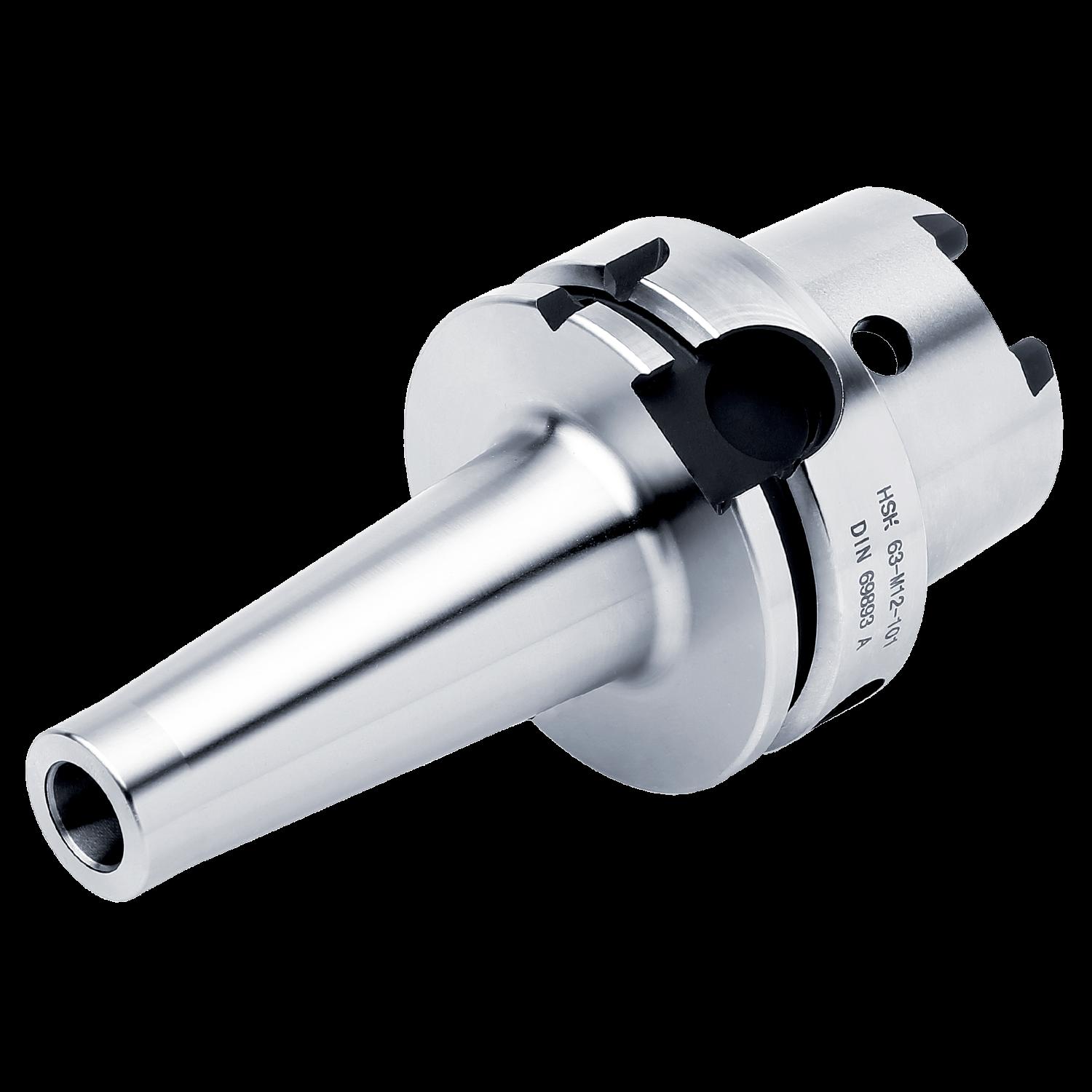

PRAMET HSK.63A-IHA.M12.150 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603200784
Product number (SAP): 86028940
Size: 63
ISO: HSK.63A-IHA.M12.150
Ordering code ANSI: HSK.63A-IHA.M12.150
Net weight – grams: 1487.5
Gross weight – grams: 1487.5
Body diameter – millimeter (BD): 21 mm
Body diameter 2 – millimeters (BD2): 40 mm
Body length – millimeter (LB): 176 mm
Connection diameter workpiece side – millimeter (DCON WS): 12.5 mm
Connection text machine side (CTMS): HSK-A 63
Connection thread nominal size workpiece side (THSZWS): M12
Protruding length – millimeter (LPR): 176 mm
