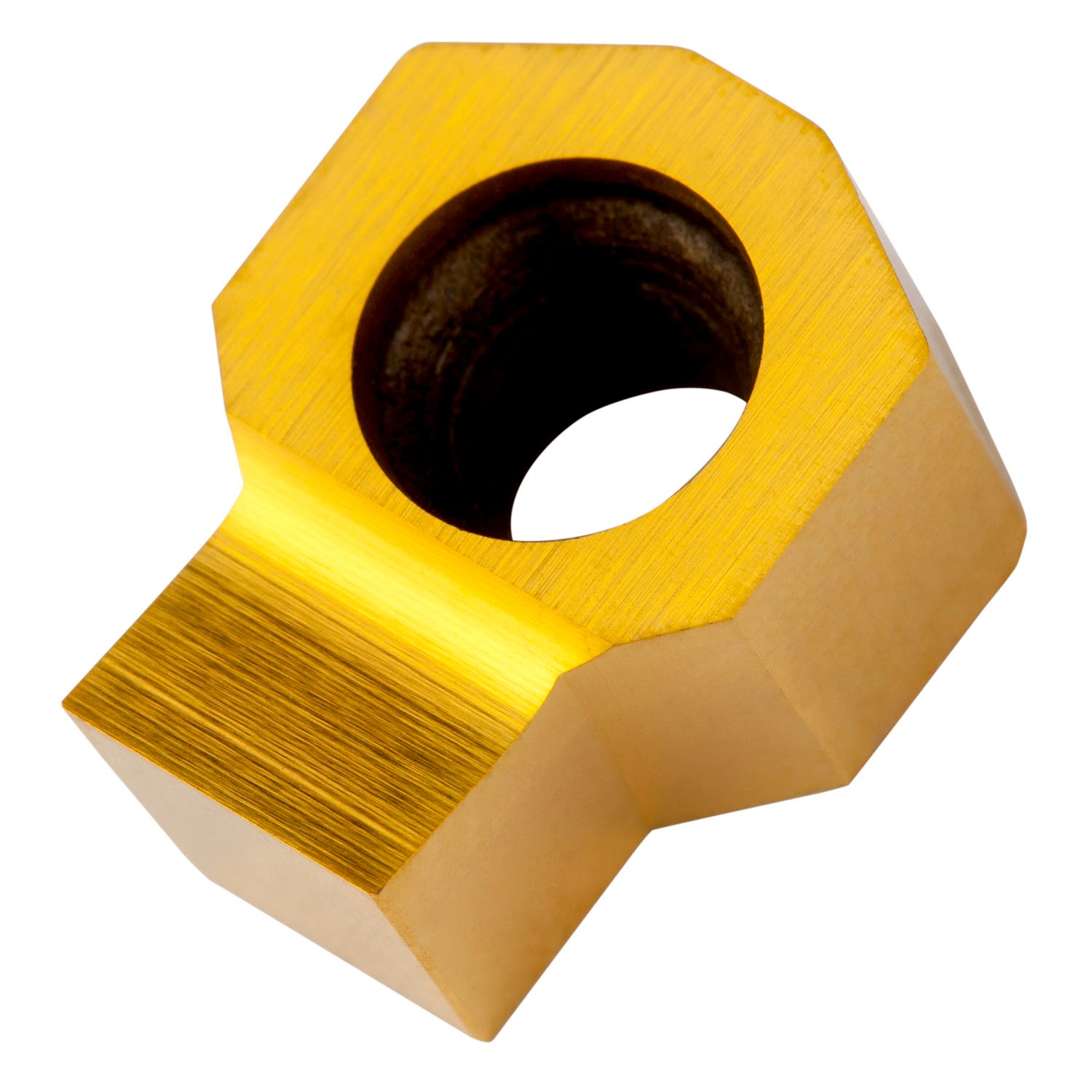

PRAMET HZ 1006-60 P9:333TN Turning Insert for Slotting

Product Code: HZ 1006-60 P9:333TN

$88.95$80.86 Ex. GST

Product Code: HZ 1006-60 P9:333TN SKU HZ 1006-60 P9:333TN Categories Broaching, C4 - Turn Ins Slotting, CUTTING TOOLS (HSS & Carbide)

PRAMET HZ 1006-60 P9:333TN Turning Insert for Slotting

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended keyway and slotting insert for broaching a width of 6mm within tolerance class P9, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-10 size broach

Additional information

Weight	0.0864 kg
barcode
Additional Information	Description: Value EAN number: 3603602913142 Product number (SAP): 80023189 Ordering code ANSI: HZ 1006-60 P9:333TN Gross weight – grams: 10.55 Inscribed circle diameter – millimeter (IC): 10 mm Insert length – millimeter (INSL): 13.5 mm Depth of cut maximum – millimeter (APMX): 4.2 mm Insert thickness – millimeter (S): 6.25 mm Insert thickness total – millimeter (S1): 6.35 mm Cutting width – millimeter (CW): 6 mm Grade: 333TN Cutting width lower tolerance – millimeter (CWTOLL): -0.042 mm Cutting width upper tolerance – millimeter (CWTOLU): -0.012 mm Insert Design: HZ Slot Tolerance: P9 ISO: HZ1006-60P9:333TN

Brand

PRAMET
