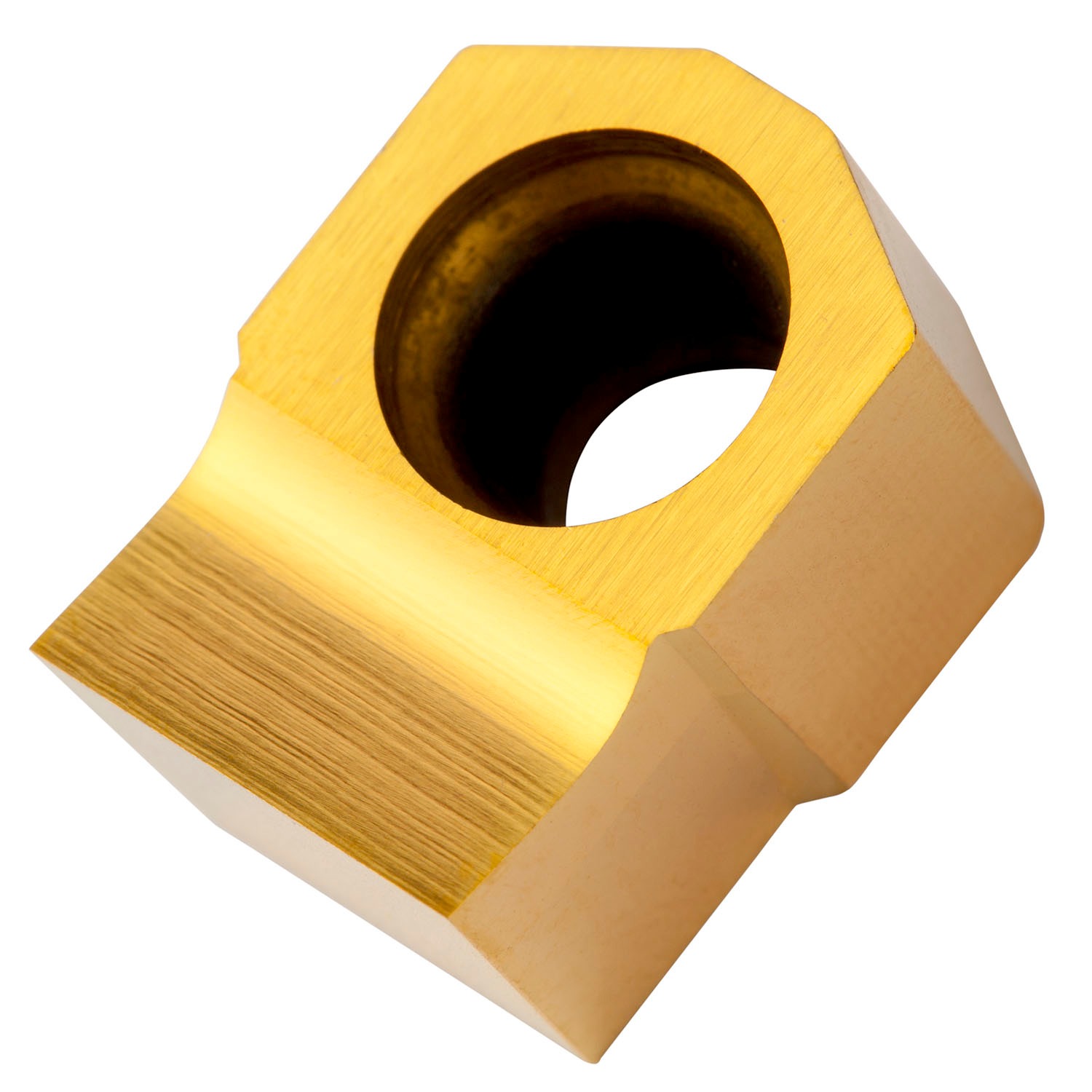

PRAMET HZ 1309-120 C11:333TN Turning Insert for Slotting

Product Code: HZ 1309-120 C11:333TN

$99.14$90.13 Ex. GST

Product Code: HZ 1309-120 C11:333TN SKU HZ 1309-120 C11:333TN Categories Broaching, C4 - Turn Ins Slotting, CUTTING TOOLS (HSS & Carbide)

PRAMET HZ 1309-120 C11:333TN Turning Insert for Slotting

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended keyway and slotting insert for broaching a width of 12mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-13 size broach

Additional information

Weight	0.0963 kg
barcode
Additional Information	Description: Value EAN number: 3603602907752 Product number (SAP): 80018410 Ordering code ANSI: HZ 1309-120 C11:333TN Gross weight – grams: 28.35 Inscribed circle diameter – millimeter (IC): 13 mm Insert length – millimeter (INSL): 18.5 mm Depth of cut maximum – millimeter (APMX): 7.2 mm Insert thickness – millimeter (S): 9.4 mm Insert thickness total – millimeter (S1): 9.53 mm Cutting width – millimeter (CW): 12 mm Grade: 333TN Cutting width lower tolerance – millimeter (CWTOLL): 0.095 mm Cutting width upper tolerance – millimeter (CWTOLU): 0.205 mm Insert Design: HZ Slot Tolerance: C11 ISO: HZ1309-120C11:333TN

Brand

PRAMET
