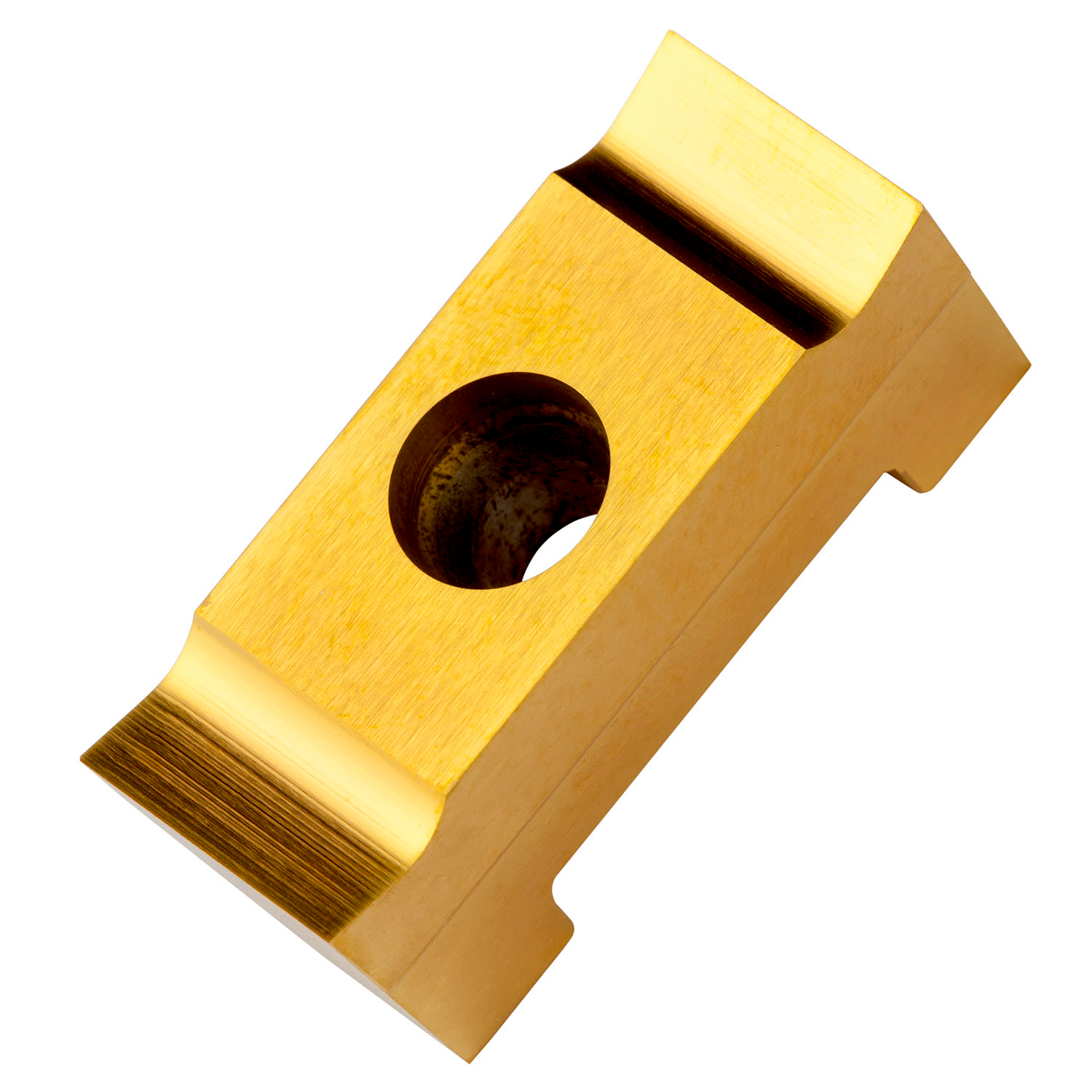

PRAMET HZ/2 14-14 C11:333TN Turning Insert for Slotting

Description: Value
EAN number: 3603602908285
Product number (SAP): 80018804
Ordering code ANSI: HZ/2 14-14 C11:333TN
Gross weight – grams: 59.3
Insert length – millimeter (INSL): 36 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Insert thickness – millimeter (S): 13.9 mm
Insert thickness total – millimeter (S1): 14 mm
Cutting width – millimeter (CW): 14 mm
Grade: 333TN
Cutting width lower tolerance – millimeter (CWTOLL): 0.095 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.205 mm
Insert Design: HZ-2
Slot Tolerance: C11
ISO: HZ/214-14C11:333TN
