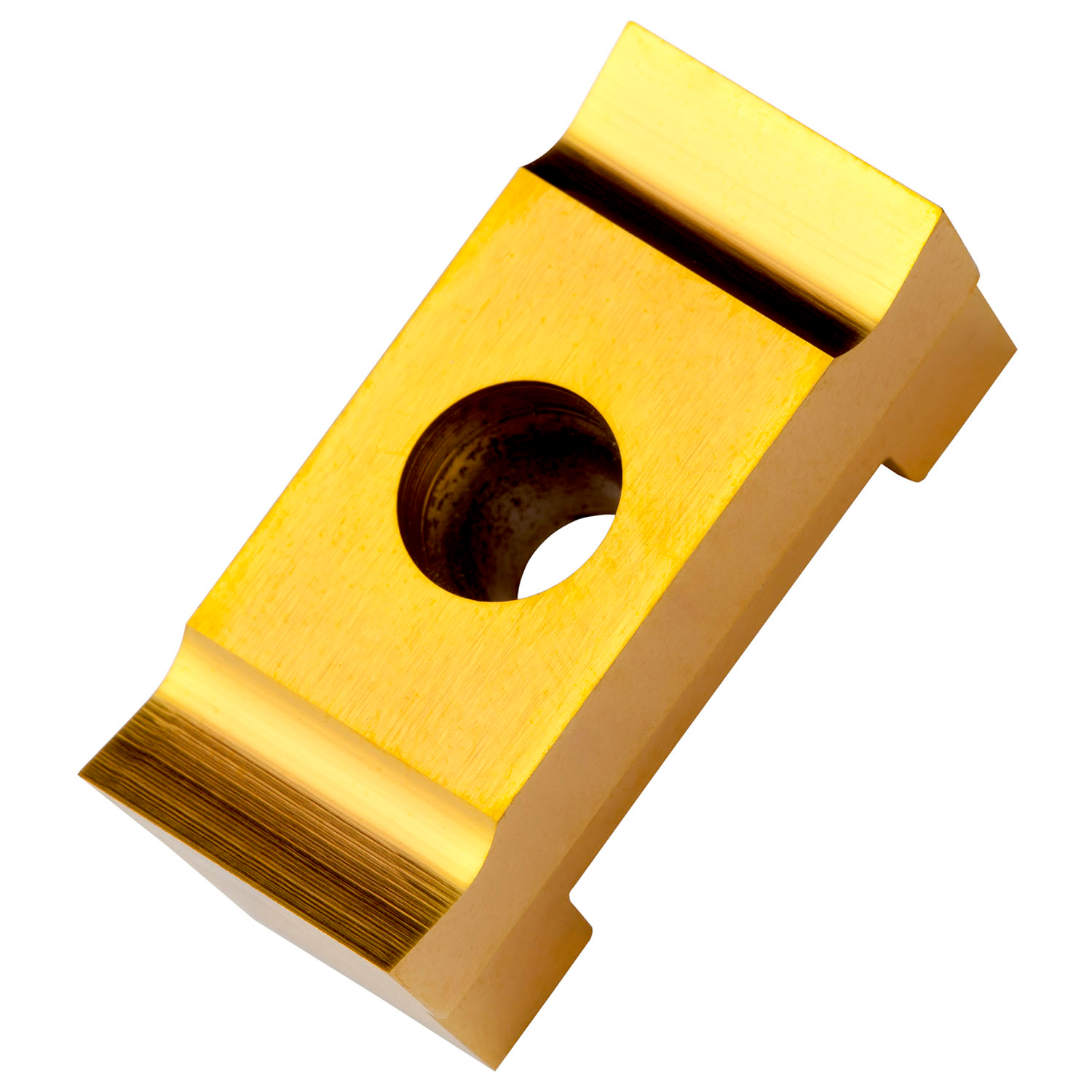

PRAMET HZ/2 16-16 C11:333TN Turning Insert for Slotting

Description

Double ended keyway and slotting insert for broaching a width of 16mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-14 size broach

Additional information

Weight	0.2684 kg
barcode
Additional Information	Description: Value EAN number: 3603602908254 Product number (SAP): 80018644 Ordering code ANSI: HZ/2 16-16 C11:333TN Gross weight – grams: 62.2 Insert length – millimeter (INSL): 36 mm Depth of cut maximum – millimeter (APMX): 9 mm Insert thickness – millimeter (S): 13.9 mm Insert thickness total – millimeter (S1): 14 mm Cutting width – millimeter (CW): 16 mm Grade: 333TN Cutting width lower tolerance – millimeter (CWTOLL): 0.095 mm Cutting width upper tolerance – millimeter (CWTOLU): 0.205 mm Insert Design: HZ-2 Slot Tolerance: C11 ISO: HZ/216-16C11:333TN

Need Technical Advice?

Description

Additional information

Brand

PRAMET
