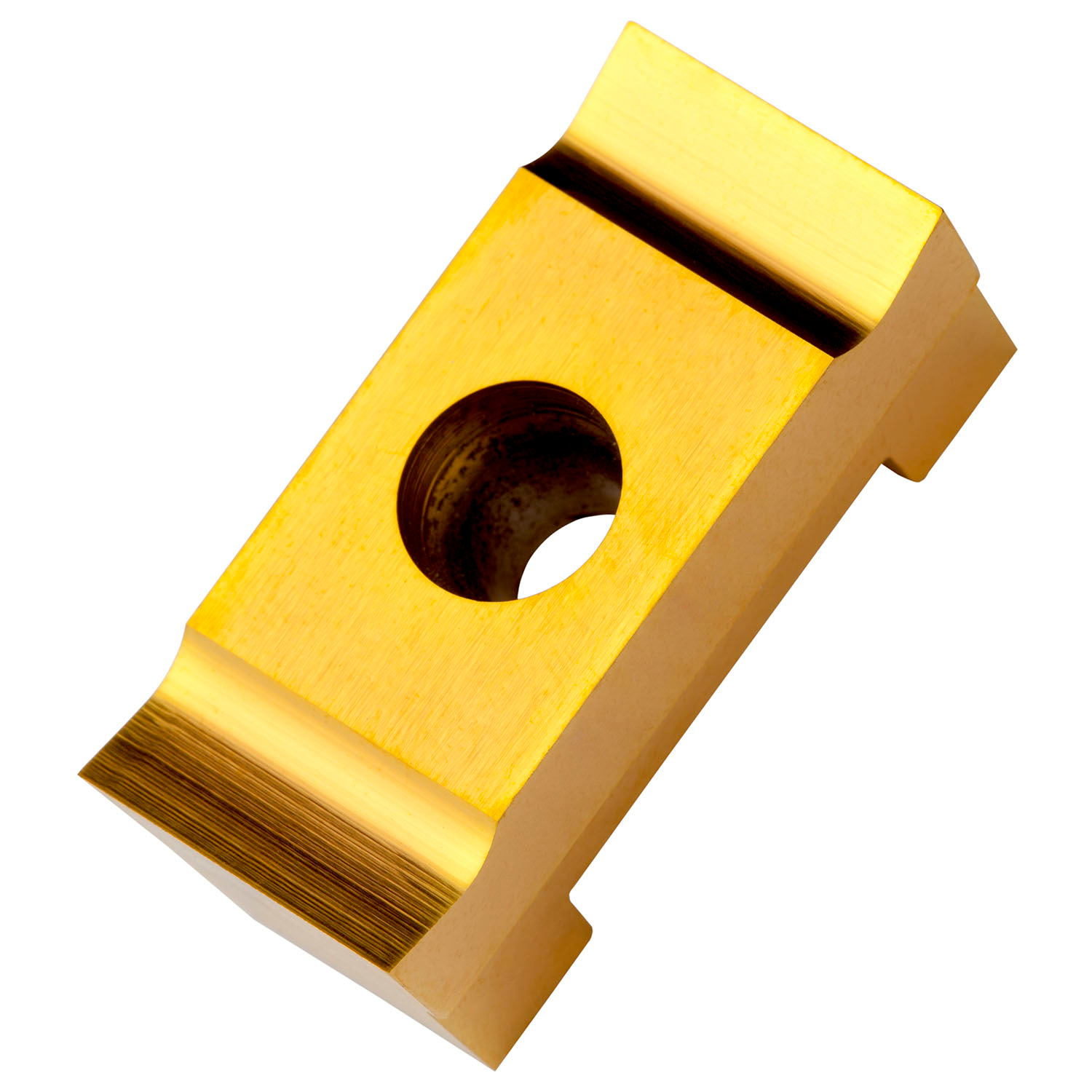

PRAMET HZ/2 16-16 P9:333TN Turning Insert for Slotting

Product Code: HZ/2 16-16 P9:333TN

$292.31$265.74 Ex. GST

Product Code: HZ/2 16-16 P9:333TN SKU HZ/2 16-16 P9:333TN Categories , ,
PRAMET HZ/2 16-16 P9:333TN Turning Insert for Slotting

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double ended keyway and slotting insert for broaching a width of 16mm within tolerance class P9, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-14 size broach

Additional information

Weight 0.2838 kg
barcode
Additional Information

Description: Value
EAN number: 3603602913227
Product number (SAP): 80023197
Ordering code ANSI: HZ/2 16-16 P9:333TN
Gross weight – grams: 62.05
Insert length – millimeter (INSL): 36 mm
Depth of cut maximum – millimeter (APMX): 9 mm
Insert thickness – millimeter (S): 13.9 mm
Insert thickness total – millimeter (S1): 14 mm
Cutting width – millimeter (CW): 16 mm
Grade: 333TN
Cutting width lower tolerance – millimeter (CWTOLL): -0.061 mm
Cutting width upper tolerance – millimeter (CWTOLU): -0.018 mm
Insert Design: HZ-2
Slot Tolerance: P9
ISO: HZ/216-16P9:333TN

Brand

PRAMET
