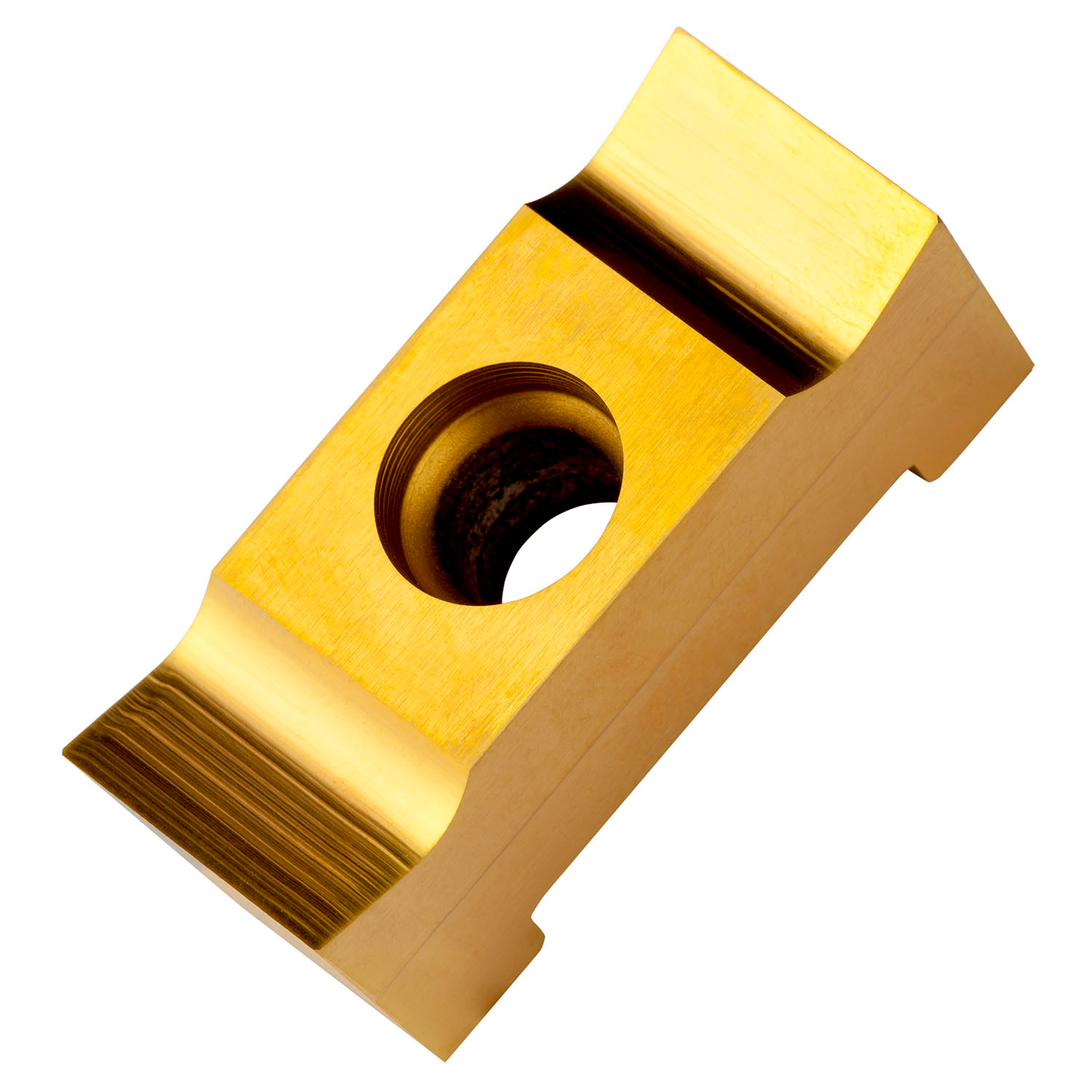

PRAMET HZ/2 18-18 C11:333TN Turning Insert for Slotting

Product Code: HZ/2 18-18 C11:333TN

$341.03$310.03 Ex. GST

Product Code: HZ/2 18-18 C11:333TN SKU HZ/2 18-18 C11:333TN Categories , ,
PRAMET HZ/2 18-18 C11:333TN Turning Insert for Slotting

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double ended keyway and slotting insert for broaching a width of 18mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-18 size broach

Additional information

Weight 0.3311 kg
barcode
Additional Information

Description: Value
EAN number: 3603602908537
Product number (SAP): 80021570
Ordering code ANSI: HZ/2 18-18 C11:333TN
Gross weight – grams: 93
Insert length – millimeter (INSL): 45 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Insert thickness – millimeter (S): 15.9 mm
Insert thickness total – millimeter (S1): 16 mm
Cutting width – millimeter (CW): 18 mm
Grade: 333TN
Cutting width lower tolerance – millimeter (CWTOLL): 0.095 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.205 mm
Insert Design: HZ-2
Slot Tolerance: C11
ISO: HZ/218-18C11:333TN

Brand

PRAMET
