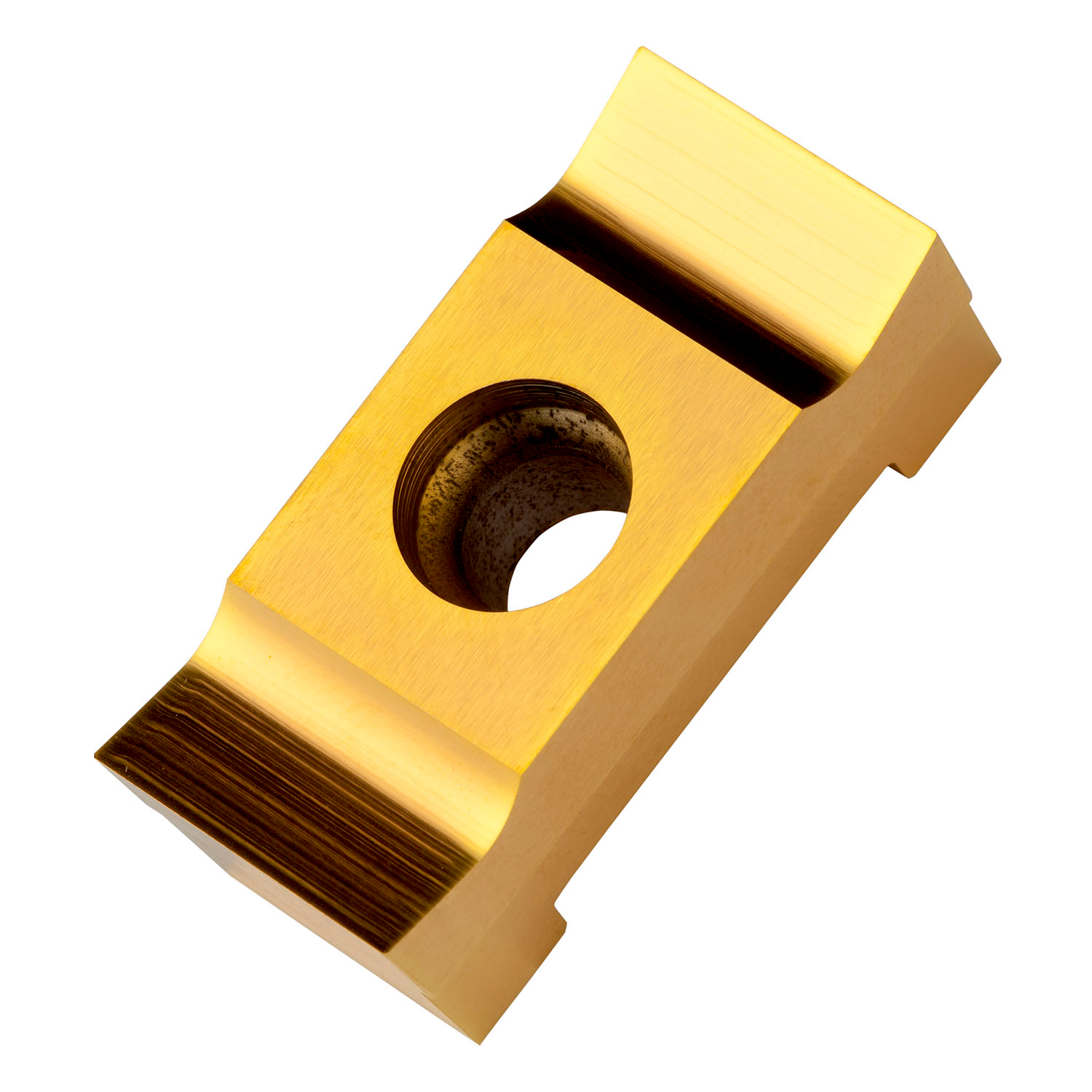

PRAMET HZ/2 20-20 P9:333TN Turning Insert for Slotting

Description: Value
EAN number: 3603602913241
Product number (SAP): 80023199
Ordering code ANSI: HZ/2 20-20 P9:333TN
Gross weight – grams: 96.75
Insert length – millimeter (INSL): 45 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Insert thickness – millimeter (S): 15.9 mm
Insert thickness total – millimeter (S1): 16 mm
Cutting width – millimeter (CW): 20 mm
Grade: 333TN
Cutting width lower tolerance – millimeter (CWTOLL): -0.074 mm
Cutting width upper tolerance – millimeter (CWTOLU): -0.022 mm
Insert Design: HZ-2
Slot Tolerance: P9
ISO: HZ/220-20P9:333TN
