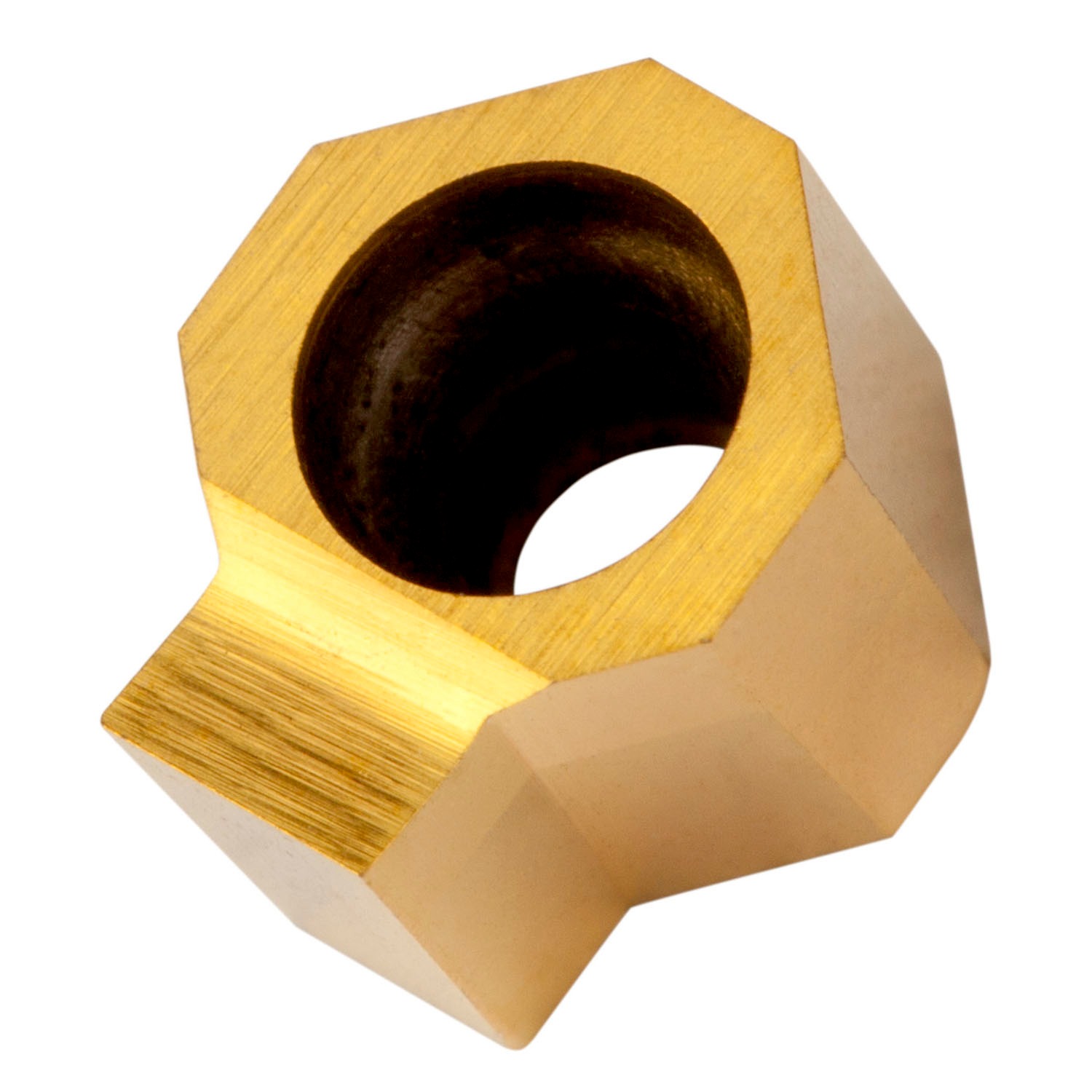

PRAMET HZ90 0604-30 C11:333TN Turning Insert for Slotting

Product Code: HZ90 0604-30 C11:333TN

$64.02$58.20 Ex. GST

Product Code: HZ90 0604-30 C11:333TN SKU HZ90 0604-30 C11:333TN Categories Broaching, C4 - Turn Ins Slotting, CUTTING TOOLS (HSS & Carbide)

PRAMET HZ90 0604-30 C11:333TN Turning Insert for Slotting

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended keyway and slotting insert for broaching a width of 3mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-06 size broach

Additional information

Weight	0.0622 kg
barcode
Additional Information	Description: Value EAN number: 3603602908445 Product number (SAP): 80021561 Ordering code ANSI: HZ90 0604-30 C11:333TN Gross weight – grams: 7.25 Inscribed circle diameter – millimeter (IC): 6 mm Insert length – millimeter (INSL): 7.5 mm Depth of cut maximum – millimeter (APMX): 1.6 mm Insert thickness – millimeter (S): 4.66 mm Insert thickness total – millimeter (S1): 4.76 mm Cutting width – millimeter (CW): 3 mm Grade: 333TN Cutting width lower tolerance – millimeter (CWTOLL): 0.06 mm Cutting width upper tolerance – millimeter (CWTOLU): 0.12 mm Insert Design: HZ Slot Tolerance: C11 ISO: HZ900604-30C11:333TN

Brand

PRAMET
