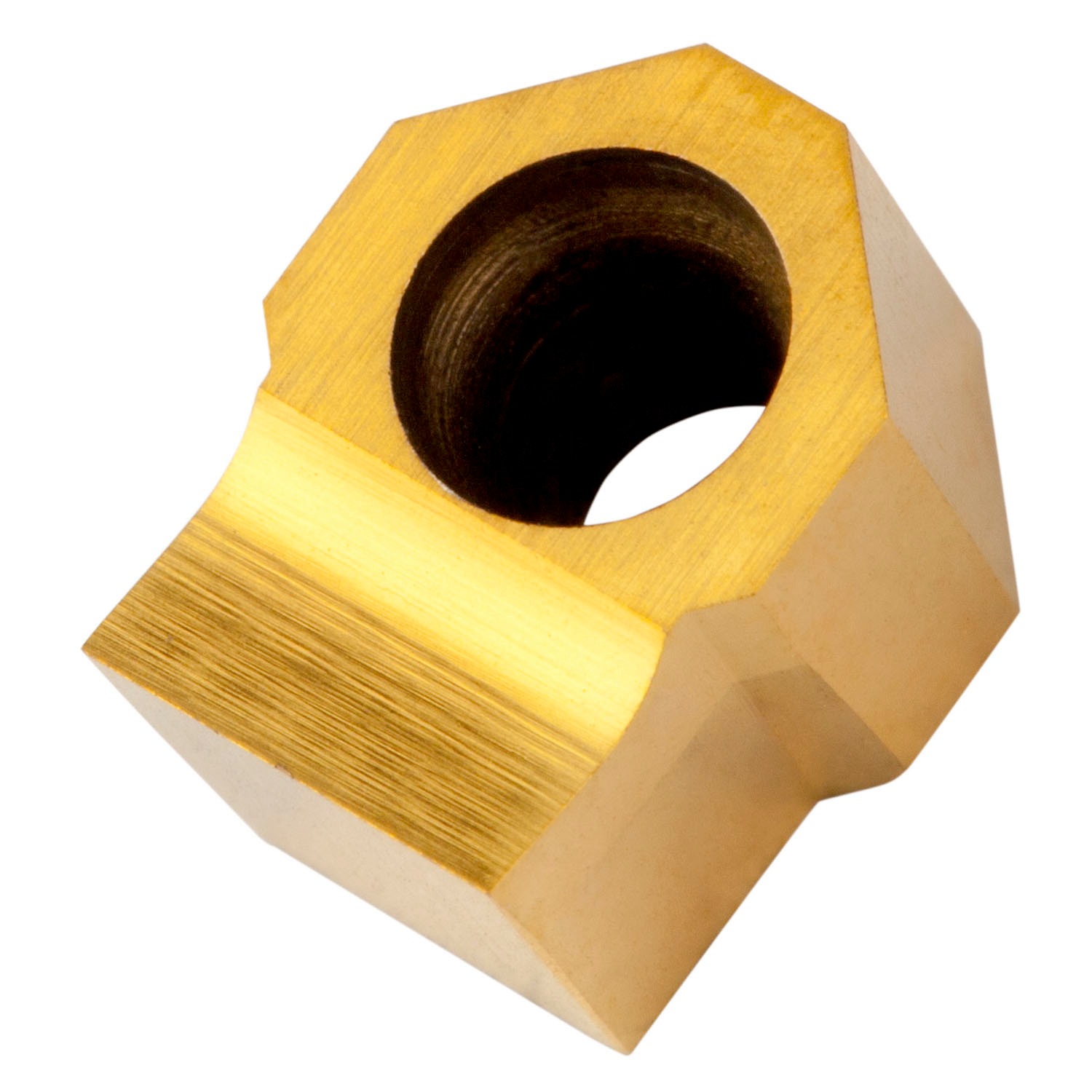

PRAMET HZ90 0604-50 H7:333TN Turning Insert for Slotting

Description: Value
EAN number: 3603602908490
Product number (SAP): 80021566
Ordering code ANSI: HZ90 0604-50 H7:333TN
Gross weight – grams: 7.6
Inscribed circle diameter – millimeter (IC): 6 mm
Insert length – millimeter (INSL): 8 mm
Depth of cut maximum – millimeter (APMX): 3 mm
Insert thickness – millimeter (S): 4.66 mm
Insert thickness total – millimeter (S1): 4.76 mm
Cutting width – millimeter (CW): 5 mm
Grade: 333TN
Cutting width lower tolerance – millimeter (CWTOLL): 0 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.012 mm
Insert Design: HZ
Slot Tolerance: H7
ISO: HZ900604-50H7:333TN
