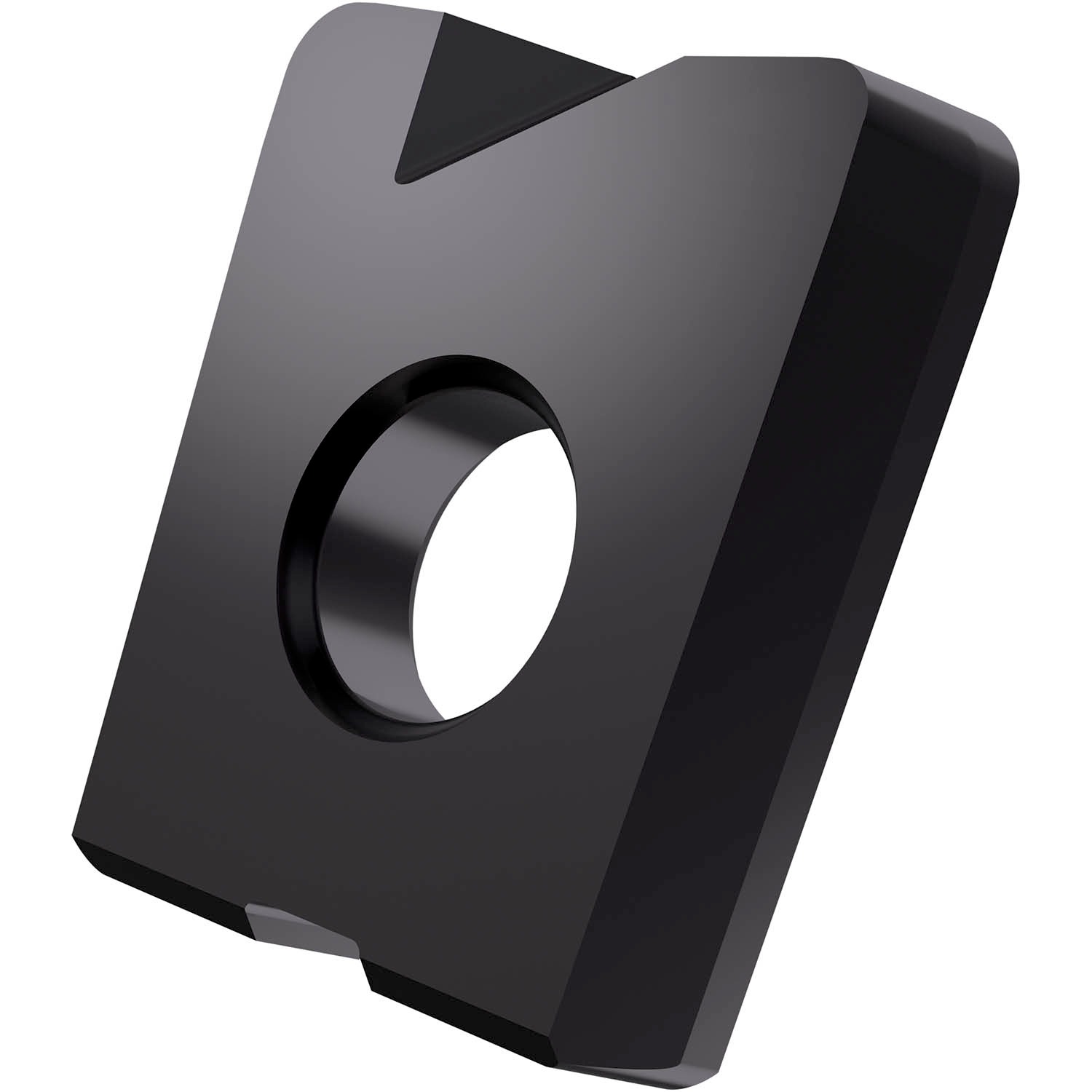

PRAMET LC 1010-KP:M8310 Milling inserts for D&M

Product Code: LC 1010-KP:M8310

$65.71$59.74 Ex. GST

Product Code: LC 1010-KP:M8310 SKU LC 1010-KP:M8310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Toroidal copy milling insert with a diameter of 10mm and 1.0mm corner radii for a maximum depth of cut of 1.0mm, KP geometry and M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01 -P10/K01 -K10 and H05 -H15 for machining of steel, cast-iron and hardened material with copy end mills K2-SRC

Additional information

Weight 0.0638 kg
barcode
Additional Information

Description: Value
EAN number: 3603603072565
Product number (SAP): 80026111
Ordering code ANSI: LC 1010-KP:M8310
Gross weight – grams: 3.074
Insert cutting diameter – millimeter (CDI): 10 mm
Fixing hole diameter – millimeter (D1): 4 mm
Cutting edge length – millimeter (L): 11.5 mm
Insert thickness – millimeter (S): 2.5 mm
Grade: M8310
Corner radius – millimeter (RE): 1 mm
Insert Style: Toroidal
ISO: LC1010-KP:M8310

Brand

PRAMET
