PRAMET LC 1210-KP:M4310 Milling inserts for D&M

Product Code: LC 1210-KP:M4310

$69.69$63.35 Ex. GST

Product Code: LC 1210-KP:M4310 SKU LC 1210-KP:M4310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

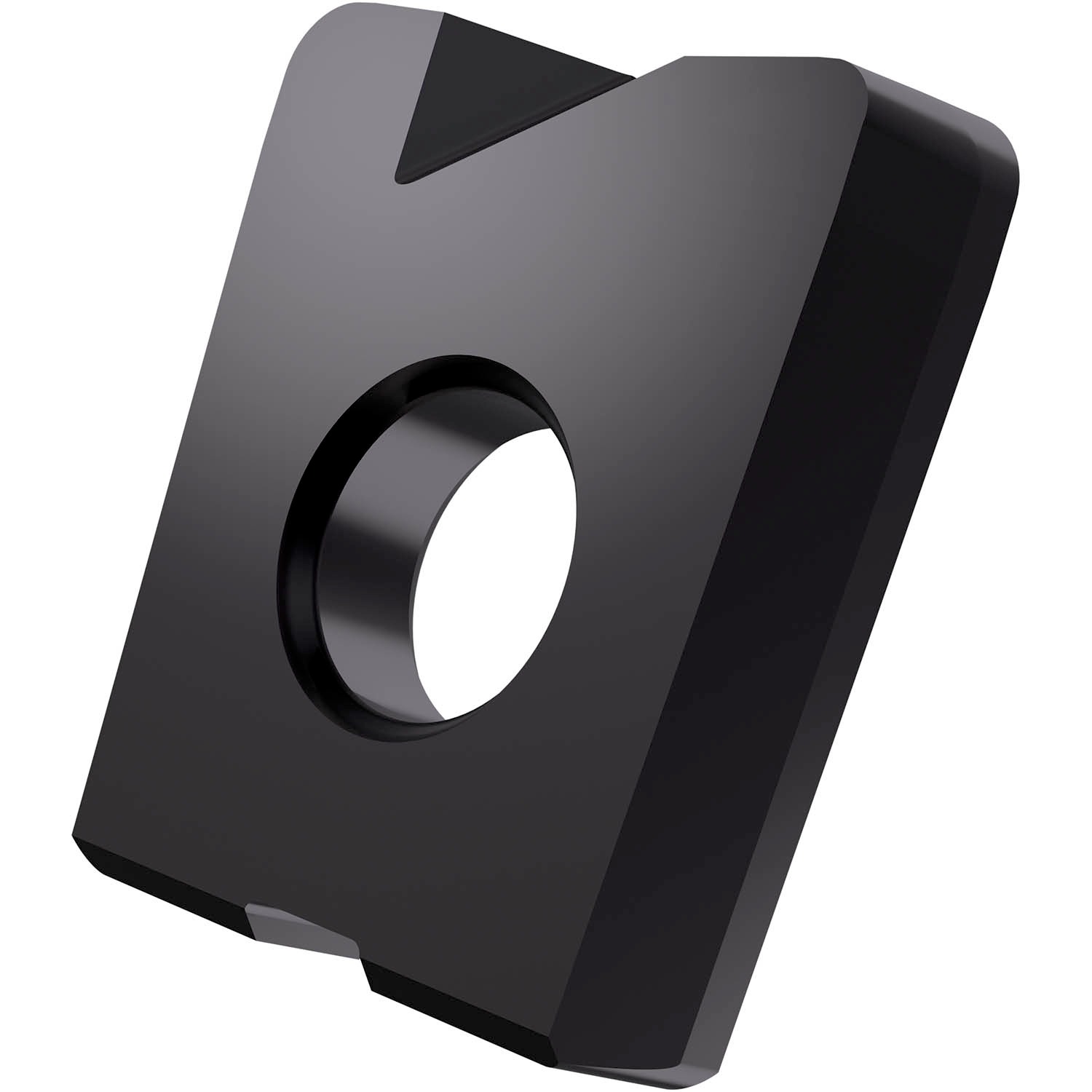

Toroidal copy milling insert with a diameter of 12mm and 1.0mm corner radii for a maximum depth of cut of 1.0mm, KP geometry and M4310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K05 -K15 and H05 -H15 for machining of cast-iron and hardened material with copy end mills K2-SLC

Additional information

Weight 0.0677 kg
barcode
Additional Information

Description: Value
EAN number: 3603603538238
Product number (SAP): 80031271
Ordering code ANSI: LC 1210-KP:M4310
Gross weight – grams: 4.136

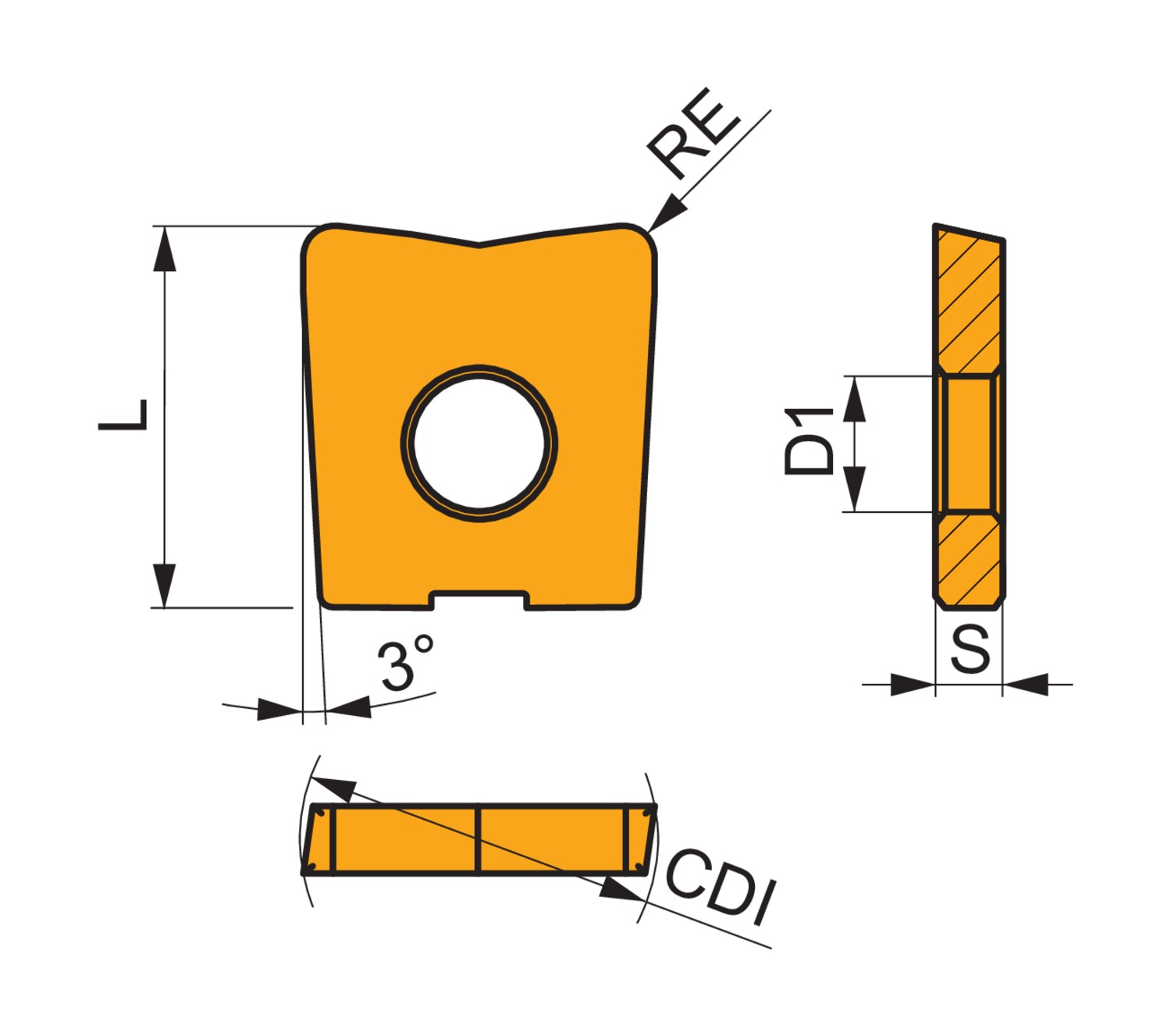

Insert cutting diameter – millimeter (CDI): 12 mm
Fixing hole diameter – millimeter (D1): 5 mm
Cutting edge length – millimeter (L): 14 mm
Insert thickness – millimeter (S): 2.5 mm
Grade: M4310
Corner radius – millimeter (RE): 1 mm
Insert Style: Toroidal
ISO: LC1210-KP:M4310
