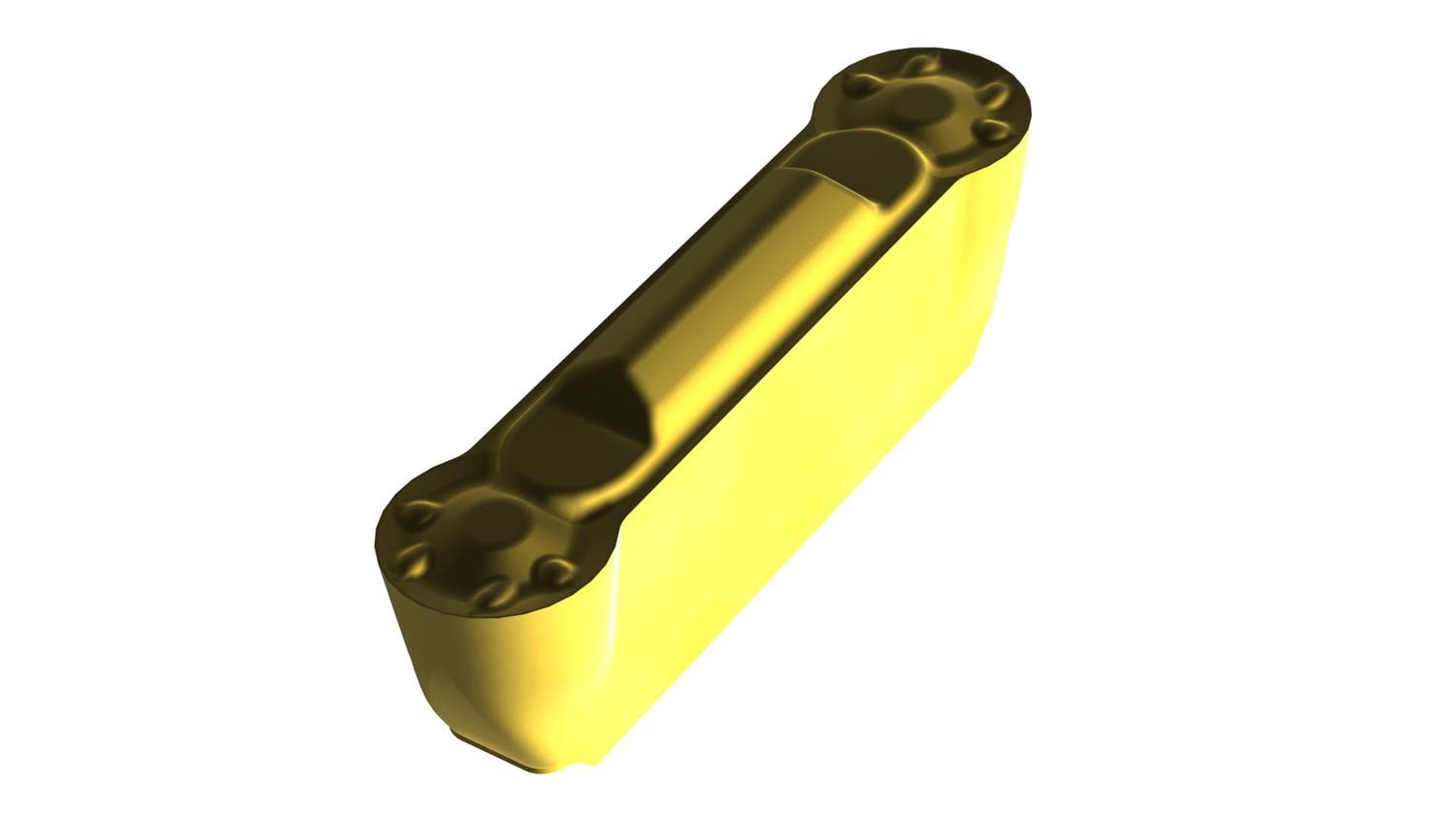

PRAMET LCMF 0413MO-MP:T8330 Turning inserts for grooving

Product Code: LCMF 0413MO-MP:T8330

$54.04$49.13 Ex. GST

Product Code: LCMF 0413MO-MP:T8330 SKU LCMF 0413MO-MP:T8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double ended parting and grooving insert, 12.6mm long with a 4mm cutting width and 2mm full radius, an accuracy according to tolerance class-M and chip-breaker MP, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with DORMER PRAMET GF..(RL) 0413 and GG..(RL) 0413 parting and grooving tools

Additional information

Weight 0.0525 kg
barcode
Additional Information

Description: Value
EAN number: 3603602896384
Product number (SAP): 80016362
Ordering code ANSI: LCMF 0413MO-MP:T8330
Gross weight – grams: 2.205
Cutting width – millimeter (CW): 4 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.05 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.05 mm
Insert length – millimeter (INSL): 12.6 mm
Grade: T8330
Corner radius – millimeter (RE): 2 mm
Insert Design: LCMF 13
Chipbreaker manufacturer's designation (CBMD): MP
Primary Tool Lead Angle: Neutral
Insert Type: F
ISO: LCMF0413MO-MP:T8330

Brand

PRAMET
