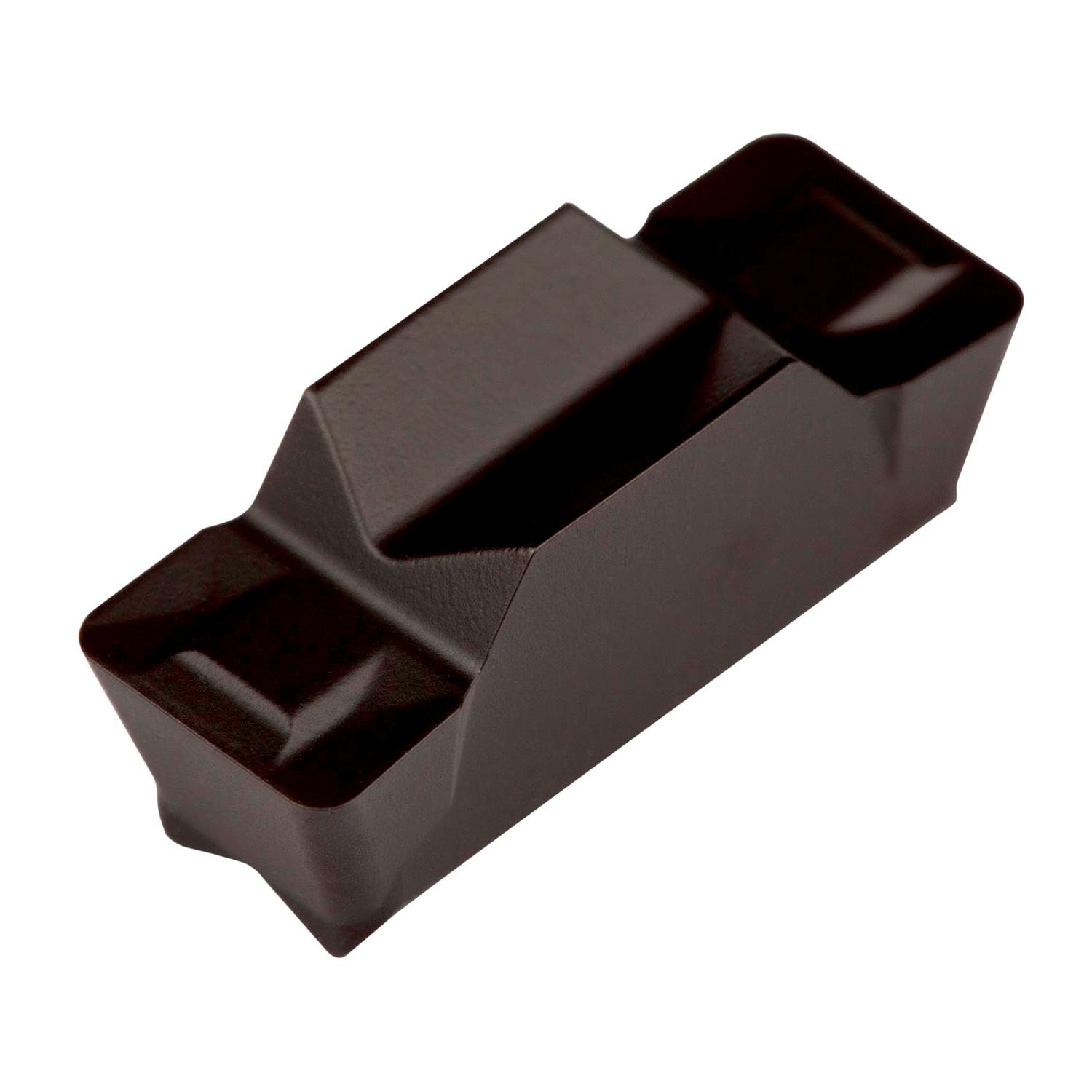

PRAMET LCMF 061608-M:T9325 Turning inserts for grooving

Product Code: LCMF 061608-M:T9325

$60.62$55.11 Ex. GST

Product Code: LCMF 061608-M:T9325 SKU LCMF 061608-M:T9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double ended parting and grooving insert, 16.4mm long with a 6mm cutting width and 0.8mm corner radii, an accuracy according to tolerance class-M and chip-breaker M, grade T9325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P15-P35 and K15-K35 for machining of steel and cast-iron in combination with DORMER PRAMET GF..(RL) 06 and XLCCN 0616 parting and grooving tools

Additional information

Weight 0.0588 kg
barcode
Additional Information

Description: Value
EAN number: 3603602900531
Product number (SAP): 80016873
Ordering code ANSI: LCMF 061608-M:T9325
Gross weight – grams: 5.983
Cutting width – millimeter (CW): 6 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.05 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.05 mm
Insert length – millimeter (INSL): 16.4 mm
Grade: T9325
Corner radius – millimeter (RE): 0.8 mm
Insert Design: LCMF 16
LCMF 30
Chipbreaker manufacturer's designation (CBMD): M
Primary Tool Lead Angle: Neutral
Insert Type: F
ISO: LCMF061608-M:T9325

Brand

PRAMET
