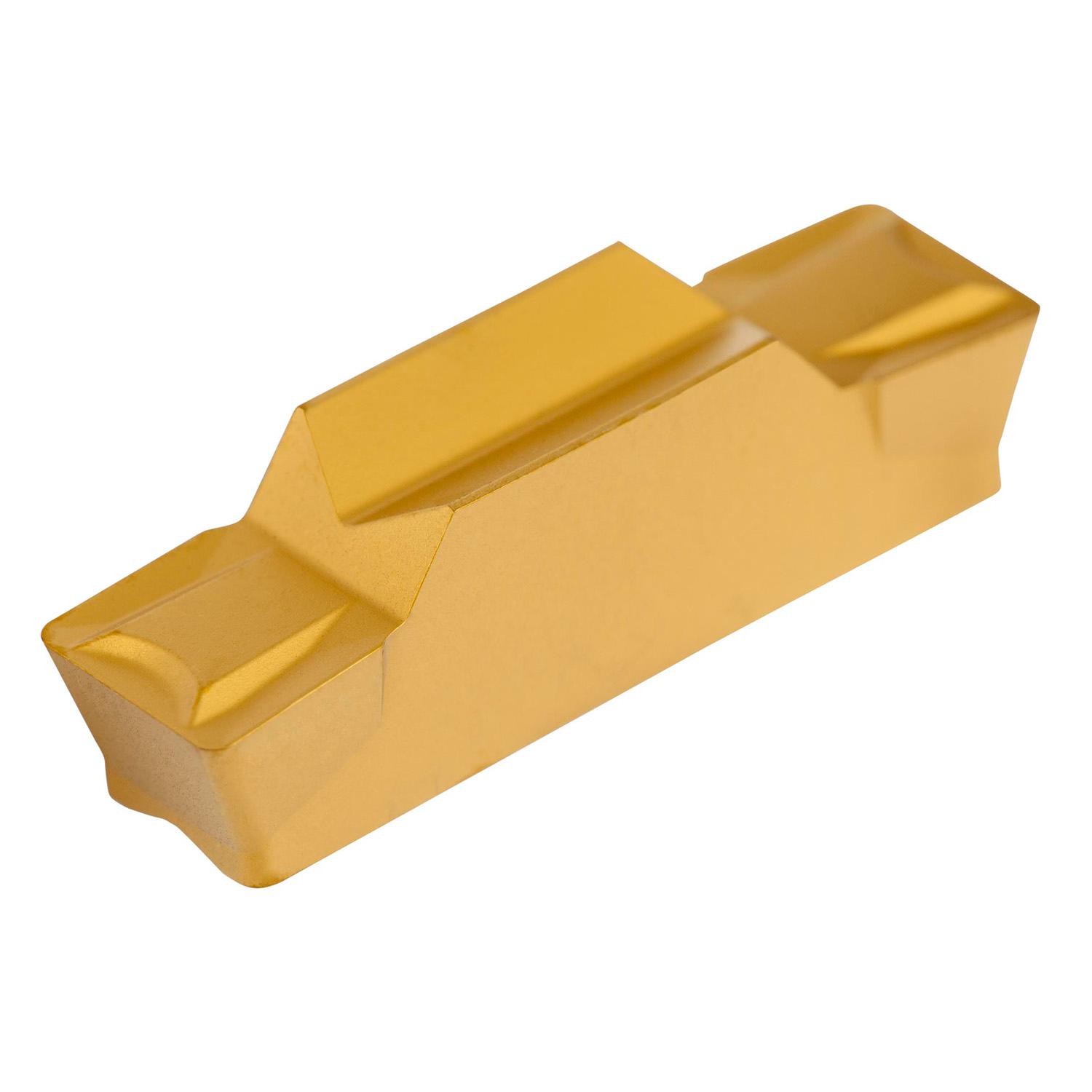

PRAMET LCMF 083008-F:T8330 Turning inserts for grooving

Product Code: LCMF 083008-F:T8330

$82.15$74.68 Ex. GST

Product Code: LCMF 083008-F:T8330 SKU LCMF 083008-F:T8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double ended parting and grooving insert, 30mm long with a 8mm cutting width and 0.8mm corner radii, an accuracy according to tolerance class-M and chip-breaker F, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with DORMER PRAMET GF..(RL) 08 and XLCCN 0830 parting and grooving tools

Additional information

Weight 0.0798 kg
barcode
Additional Information

Description: Value
EAN number: 3603602909756
Product number (SAP): 80022440
Ordering code ANSI: LCMF 083008-F:T8330
Gross weight – grams: 22.13
Cutting width – millimeter (CW): 8 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.05 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.05 mm
Insert length – millimeter (INSL): 30 mm
Grade: T8330
Corner radius – millimeter (RE): 0.8 mm
Insert Design: LCMF 16
LCMF 30
Chipbreaker manufacturer's designation (CBMD): F
Primary Tool Lead Angle: Neutral
Insert Type: F
ISO: LCMF083008-F:T8330

Brand

PRAMET
