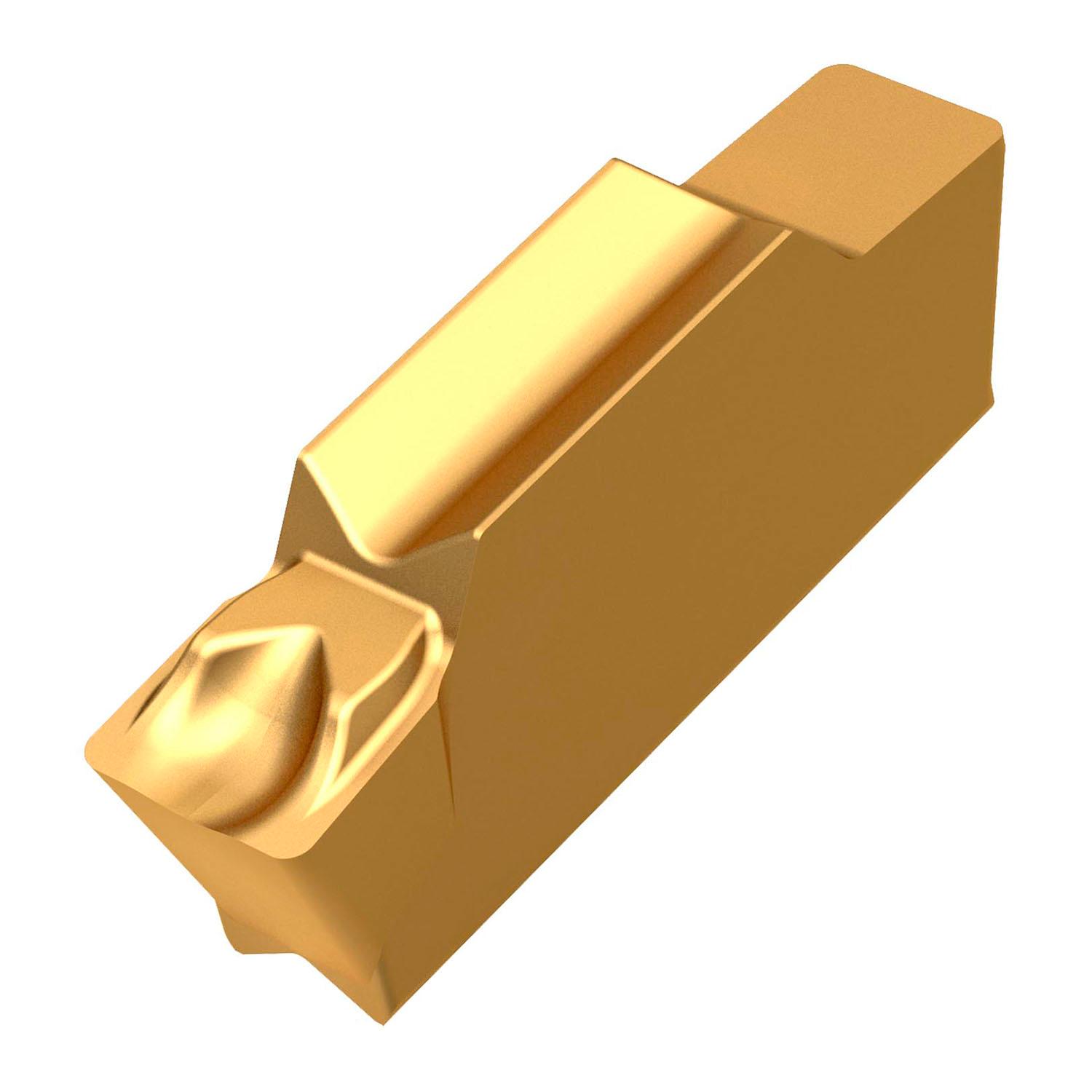

PRAMET LCMR 031602-CM:T8330 Turning inserts for grooving

Product Code: LCMR 031602-CM:T8330

$29.69$26.99 Ex. GST

Product Code: LCMR 031602-CM:T8330 SKU LCMR 031602-CM:T8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended parting and grooving insert, 16.4mm long with a 3mm cutting width and 0.2mm corner radii, an accuracy according to tolerance class-M and chip-breaker CM, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with DORMER PRAMET GF..(RL) 03, GG..(RL) 03 and XLCCN 0316 parting and grooving tools

Additional information

Weight 0.0288 kg
barcode
Additional Information

Description: Value
EAN number: 3603602900913
Product number (SAP): 80016966
Ordering code ANSI: LCMR 031602-CM:T8330
Gross weight – grams: 2.799
Cutting width – millimeter (CW): 3 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.05 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.05 mm
Insert length – millimeter (INSL): 16.4 mm
Grade: T8330
Corner radius – millimeter (RE): 0.2 mm
Insert Design: LCMR 16
LCMR 30
Chipbreaker manufacturer's designation (CBMD): CM
Primary Tool Lead Angle: Neutral
Insert Type: R
ISO: LCMR031602-CM:T8330

Brand

PRAMET
