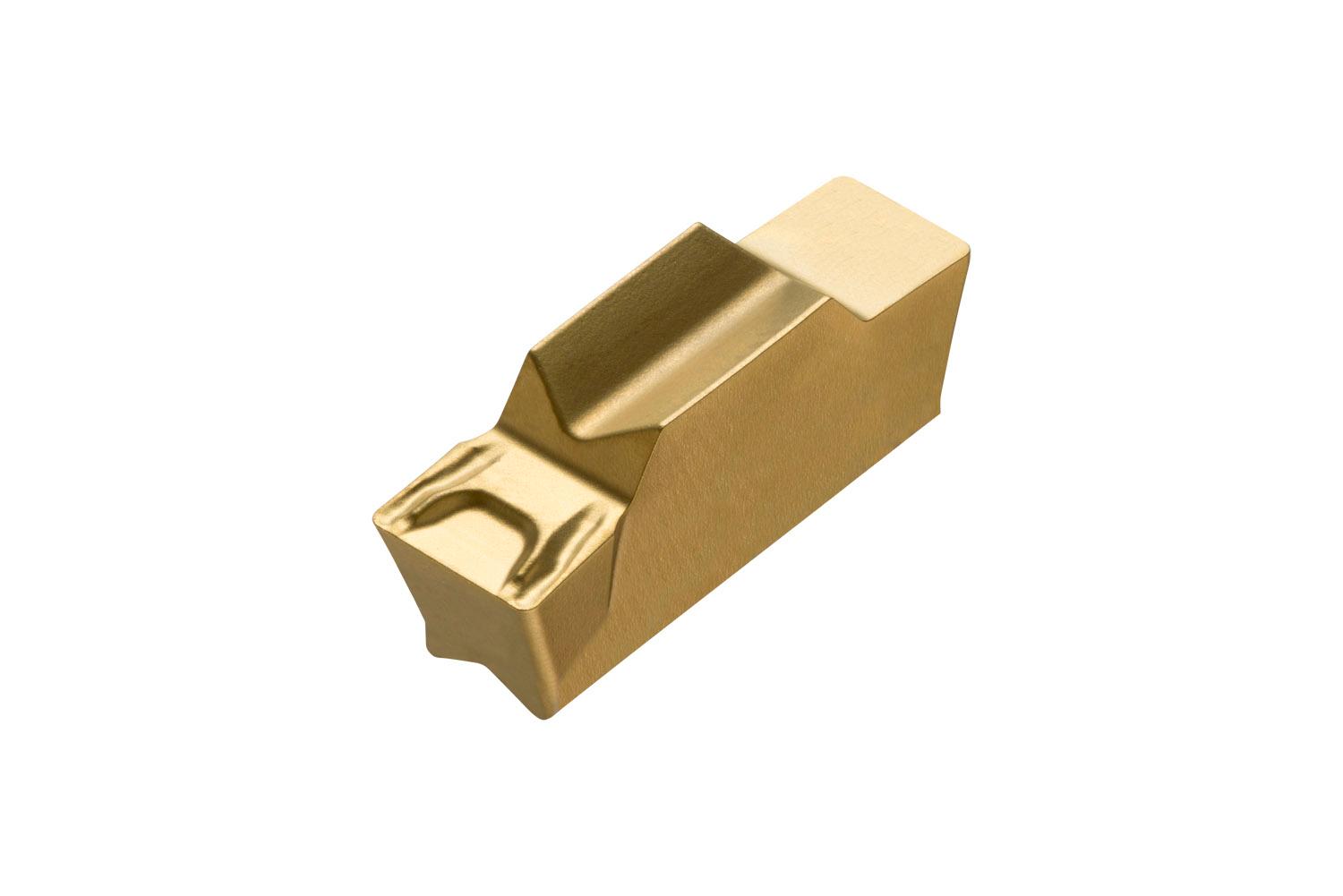

PRAMET LCMR 061608-F:T8330 Turning inserts for grooving

Product Code: LCMR 061608-F:T8330

$37.39$33.99 Ex. GST

Product Code: LCMR 061608-F:T8330 SKU LCMR 061608-F:T8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended parting and grooving insert, 16.4mm long with a 6mm cutting width and 0.8mm corner radii, an accuracy according to tolerance class-M and chip-breaker F, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET GF..(RL) 06 and XLCCN 0616 parting and grooving tools

Additional information

Weight 0.0363 kg
barcode
Additional Information

Description: Value
EAN number: 3603602900869
Product number (SAP): 80016958
Ordering code ANSI: LCMR 061608-F:T8330
Gross weight – grams: 6.058
Cutting width – millimeter (CW): 6 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.05 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.05 mm
Insert length – millimeter (INSL): 16.4 mm
Grade: T8330
Corner radius – millimeter (RE): 0.8 mm
Insert Design: LCMR 16
LCMR 30
Chipbreaker manufacturer's designation (CBMD): F
Primary Tool Lead Angle: Neutral
Insert Type: R
ISO: LCMR061608-F:T8330

Brand

PRAMET
