PRAMET LDGN 130560-R45:6640 Scarfing inserts Special Order

Product Code: LDGN 130560-R45:6640

$132.56$120.51 Ex. GST

Product Code: LDGN 130560-R45:6640 SKU LDGN 130560-R45:6640 Categories , ,
PRAMET LDGN 130560-R45:6640 Scarfing inserts Special Order

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

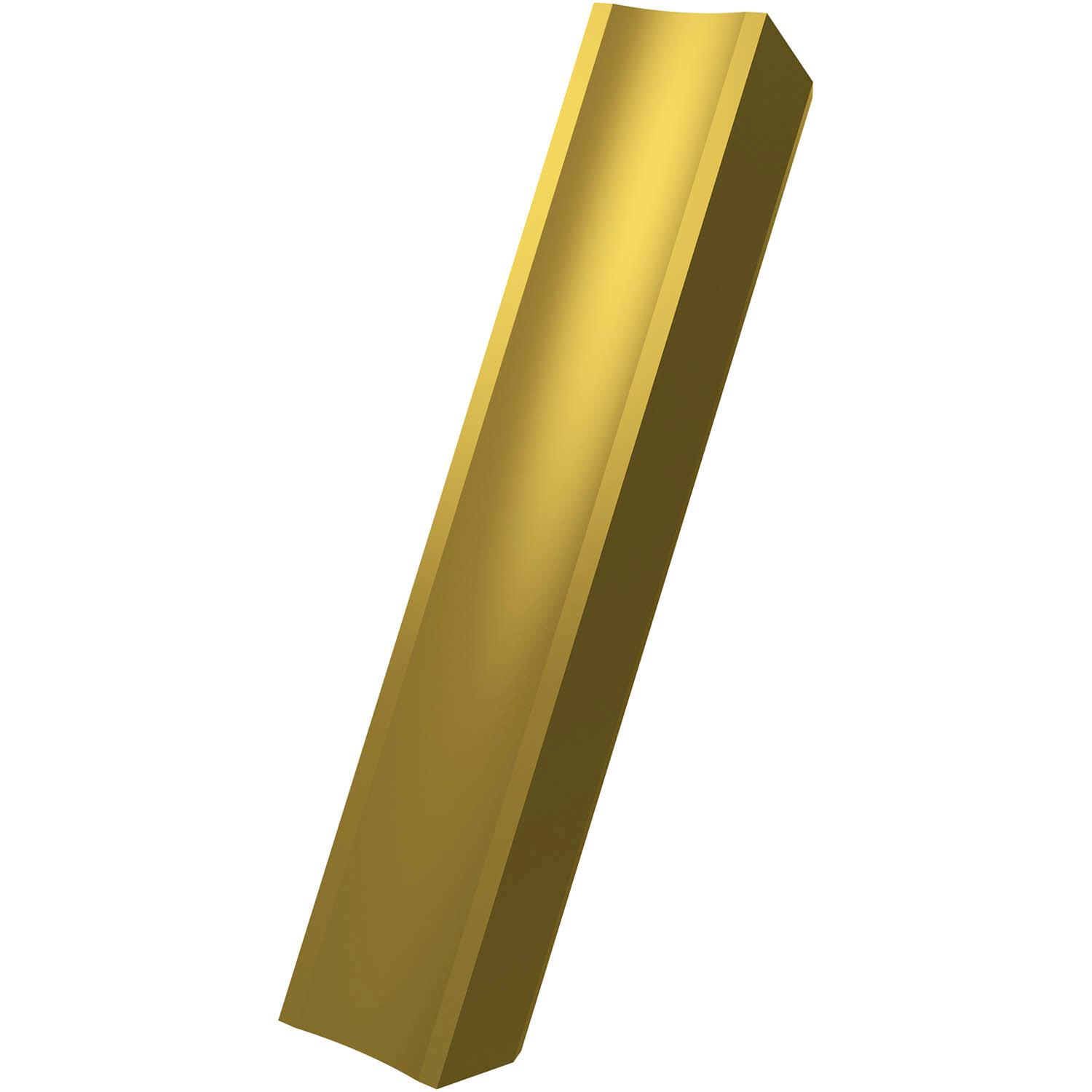

Single-sided re-grindable scarfing blade, 60mm long rectangle with a main cutting edge length of 13.05mm, 5mm thick and a working radius of 45mm for tube diameters from 52 to 65mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes

Additional information

Weight 0.1287 kg
barcode
Additional Information

Description: Value
EAN number: 3603602886613
Product number (SAP): 80013699
Ordering code ANSI: LDGN 130560-R45:6640
Gross weight – grams: 57.428
Grade: 6640
Insert Clearance Code and Angle: D 15°
Insert Design: LDGN
Insert size: 13
Insert Thickness: 05
Insert Type: N
Insert shape code (SC): L – rectangular
Profile radius – millimeter (PRFRAD): 45 mm
Outside tube diameter maximum – millimeter: 81 mm
Outside tube diameter minimum – millimeter: 61 mm
ISO: LDGN130560-R45:6640

Brand

PRAMET
