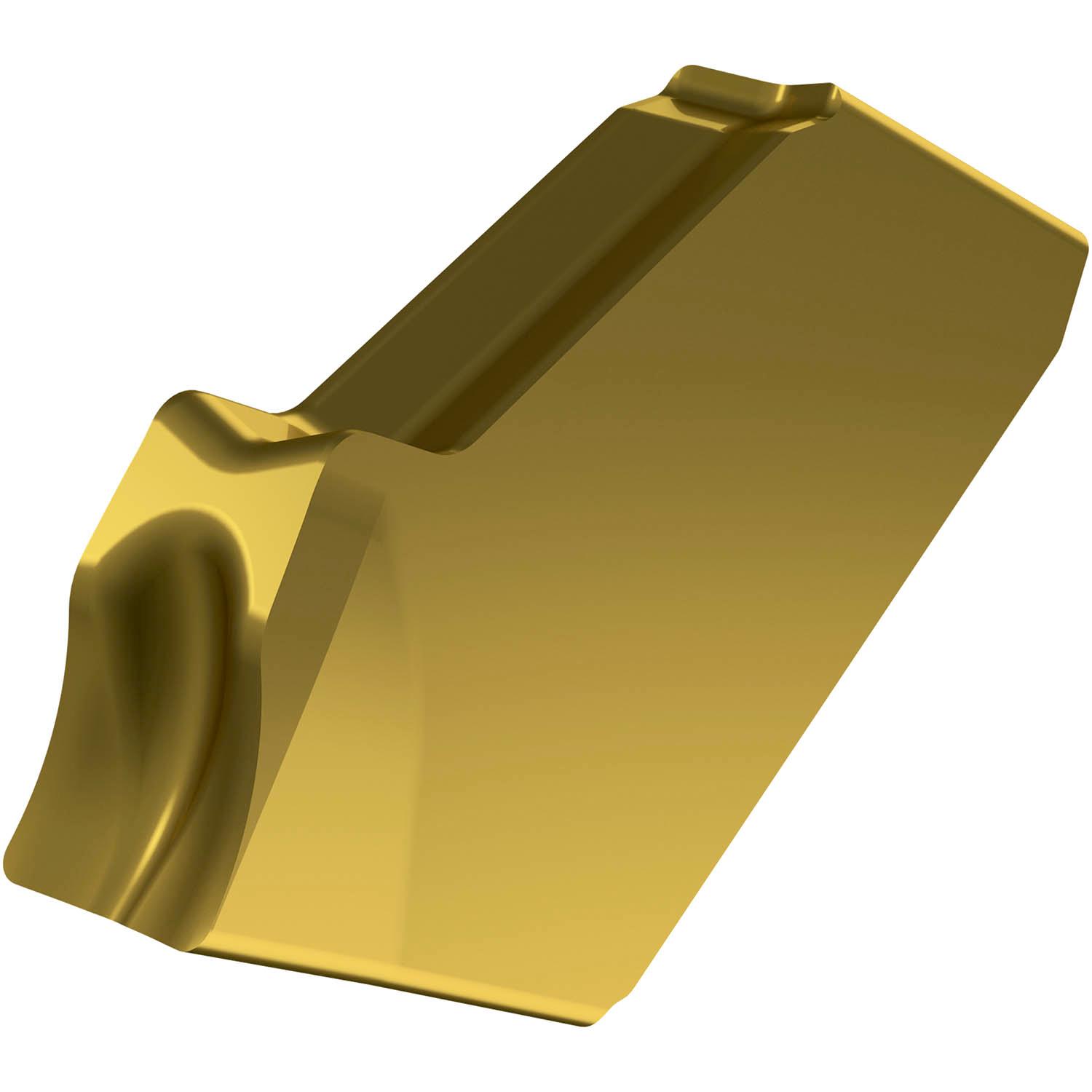

PRAMET LFMX 2.0-.16SNF2:6640 Turning inserts for parting off

Product Code: LFMX 2.0-.16SNF2:6640

$21.98$19.98 Ex. GST

Product Code: LFMX 2.0-.16SNF2:6640 SKU LFMX 2.0-.16SNF2:6640 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended parting and grooving insert, with a 2mm cutting width and 0.16mm corner radii, an accuracy according to tolerance class-M and chip-breaker F2 with rounded cutting edges with facet, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and K25-K40 for machining of steel and cast-iron in combination with DORMER PRAMET XL.F(NRL) 2.00 parting and grooving tools

Additional information

Weight 0.0213 kg
barcode
Additional Information

Description: Value
EAN number: 3603602875235
Product number (SAP): 80006744
Ordering code ANSI: LFMX 2.0-.16SNF2:6640
Gross weight – grams: 0.87
Cutting width – millimeter (CW): 2 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.03 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.03 mm
Insert body width – millimeter (BW): 1.6 mm
Grade: 6640
Corner radius – millimeter (RE): 0.16 mm
Insert Design: LFMX
Chipbreaker manufacturer's designation (CBMD): F2
Primary Tool Lead Angle: Neutral
Insert Type: X
ISO: LFMX2.0-.16SNF2:6640

Brand

PRAMET
