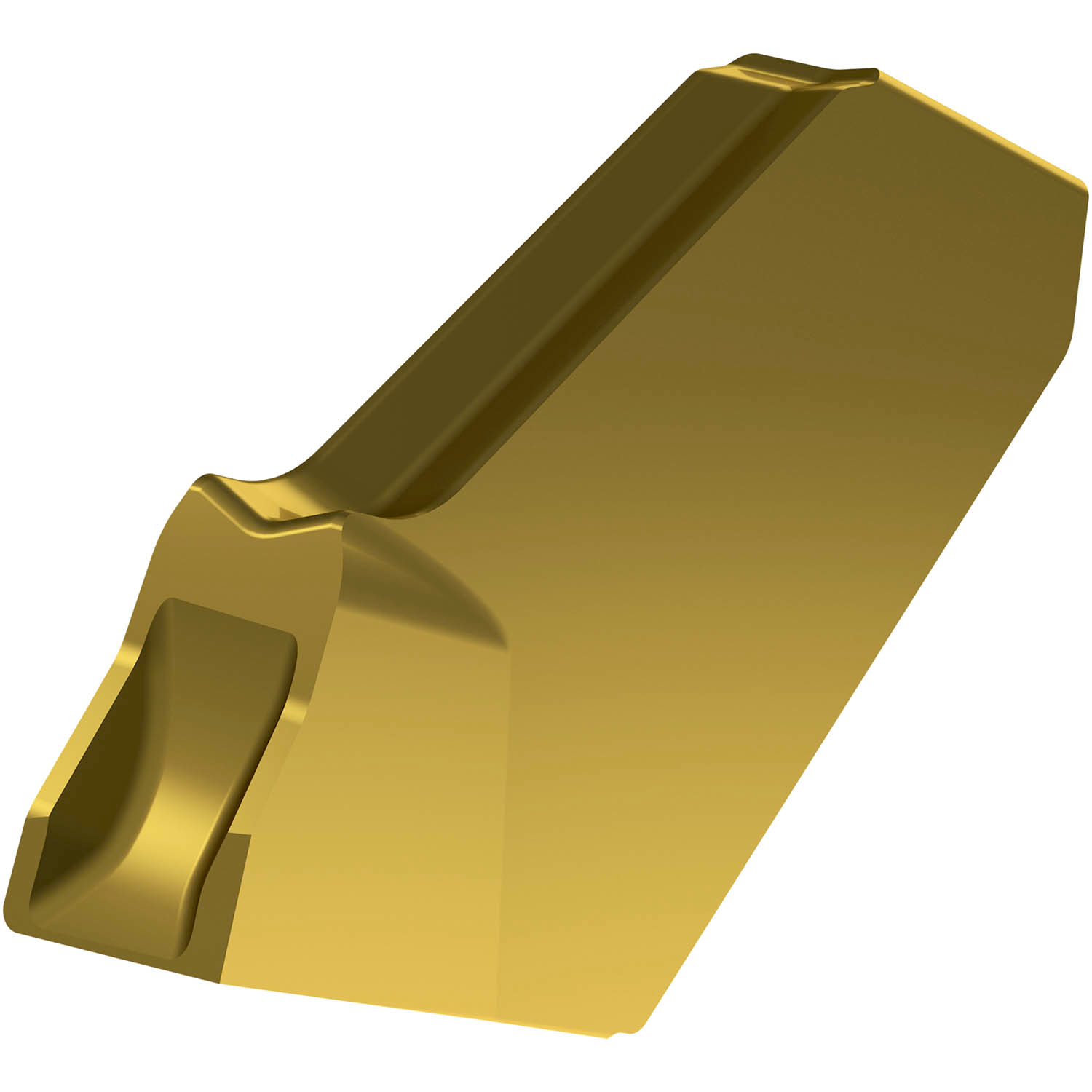

PRAMET LFMX 4.1-.20SL8M2:T8330 Turning inserts for parting off

Product Code: LFMX 4.1-.20SL8M2:T8330

$27.53$25.03 Ex. GST

Product Code: LFMX 4.1-.20SL8M2:T8330 SKU LFMX 4.1-.20SL8M2:T8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended parting and grooving insert, with a 4.1mm cutting width and 0.2mm corner radii, 8° front angle to reduce pip and burr on the left hand side, an accuracy according to tolerance class-M and chip-breaker M2 with rounded cutting edges with facet, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET XL.F(NRL) 4.00 parting and grooving tools

Additional information

Weight 0.0267 kg
barcode
Additional Information

Description: Value
EAN number: 3603602897107
Product number (SAP): 80016434
Ordering code ANSI: LFMX 4.1-.20SL8M2:T8330
Gross weight – grams: 2.809
Cutting width – millimeter (CW): 4.1 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.04 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.04 mm
Insert body width – millimeter (BW): 3.6 mm
Grade: T8330
Corner radius – millimeter (RE): 0.2 mm
Tool lead angle left (PSIRL): 8
Insert Design: LFMX
Chipbreaker manufacturer's designation (CBMD): M2
Primary Tool Lead Angle: Left
Insert Type: X
ISO: LFMX4.1-.20SL8M2:T8330

Brand

PRAMET
