PRAMET LFMX 5.1-.20SNF2:T8330 Turning inserts for parting off

Product Code: LFMX 5.1-.20SNF2:T8330

$29.35$26.68 Ex. GST

Product Code: LFMX 5.1-.20SNF2:T8330 SKU LFMX 5.1-.20SNF2:T8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

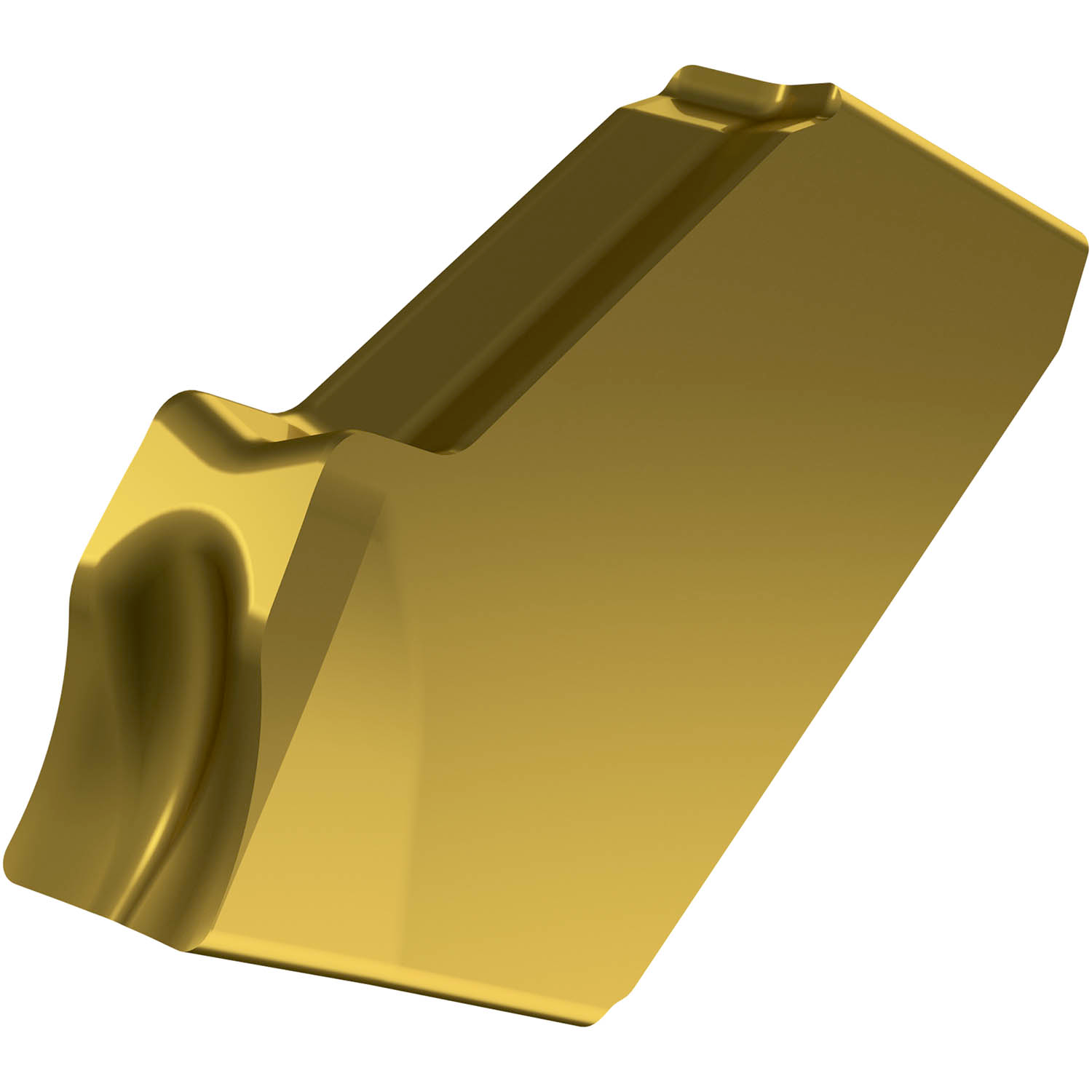

Single ended parting and grooving insert, with a 5.1mm cutting width and 0.2mm corner radii, an accuracy according to tolerance class-M and chip-breaker F2 with rounded cutting edges with facet, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with DORMER PRAMET XL.F(NRL) 5.00 parting and grooving tools

Additional information

Weight 0.0285 kg
barcode
Additional Information

Description: Value
EAN number: 3603602897169
Product number (SAP): 80016440
Ordering code ANSI: LFMX 5.1-.20SNF2:T8330
Gross weight – grams: 3.762
Cutting width – millimeter (CW): 5.1 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.04 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.04 mm
Insert body width – millimeter (BW): 4.6 mm
Grade: T8330
Corner radius – millimeter (RE): 0.2 mm
Insert Design: LFMX
Chipbreaker manufacturer's designation (CBMD): F2
Primary Tool Lead Angle: Neutral
Insert Type: X
ISO: LFMX5.1-.20SNF2:T8330

Brand

PRAMET
