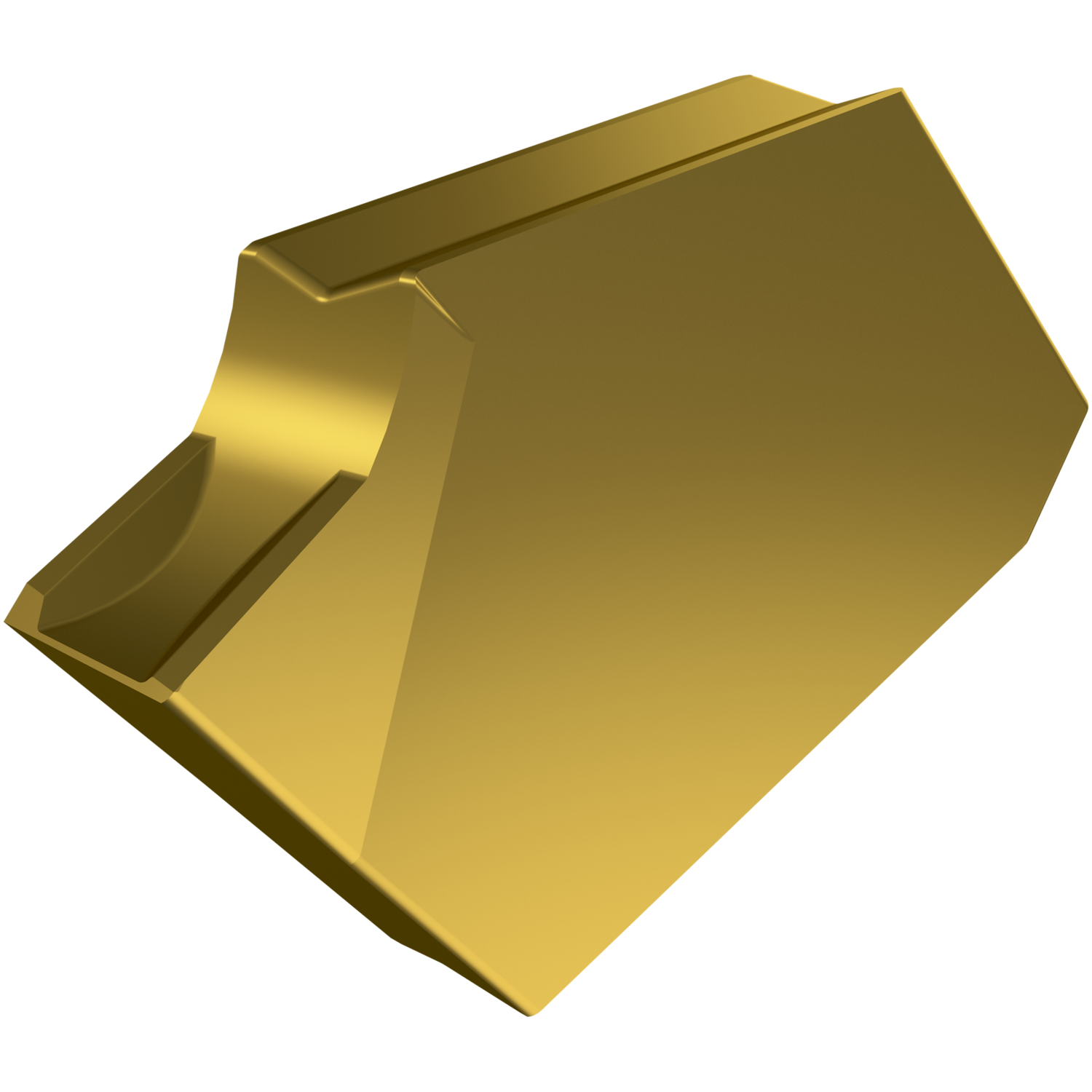

PRAMET LFUX 030800TL:T8330 Turning inserts for parting off

Product Code: LFUX 030800TL:T8330

$25.27$22.97 Ex. GST

Product Code: LFUX 030800TL:T8330 SKU LFUX 030800TL:T8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended parting and grooving insert, with a 3mm cutting width and 0.2mm corner radii, 5° front angle to reduce pip and burr on the left hand side, an accuracy according to tolerance class-U and cutting edges with facet, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with DORMER PRAMET XLCFN 03 and XLCF(RL) 03 parting and grooving tools

Additional information

Weight 0.0245 kg
barcode
Additional Information

Description: Value
EAN number: 3603602896957
Product number (SAP): 80016419
Ordering code ANSI: LFUX 030800TL:T8330
Gross weight – grams: 4.617
Cutting width – millimeter (CW): 3 mm
Insert body width – millimeter (BW): 2.51 mm
Insert length – millimeter (INSL): 11.5 mm
Grade: T8330
Corner radius – millimeter (RE): 0.2 mm
Tool lead angle left (PSIRL): 5
Insert Design: LFUX
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Primary Tool Lead Angle: Left
Insert Type: X
ISO: LFUX030800TL:T8330

Brand

PRAMET
