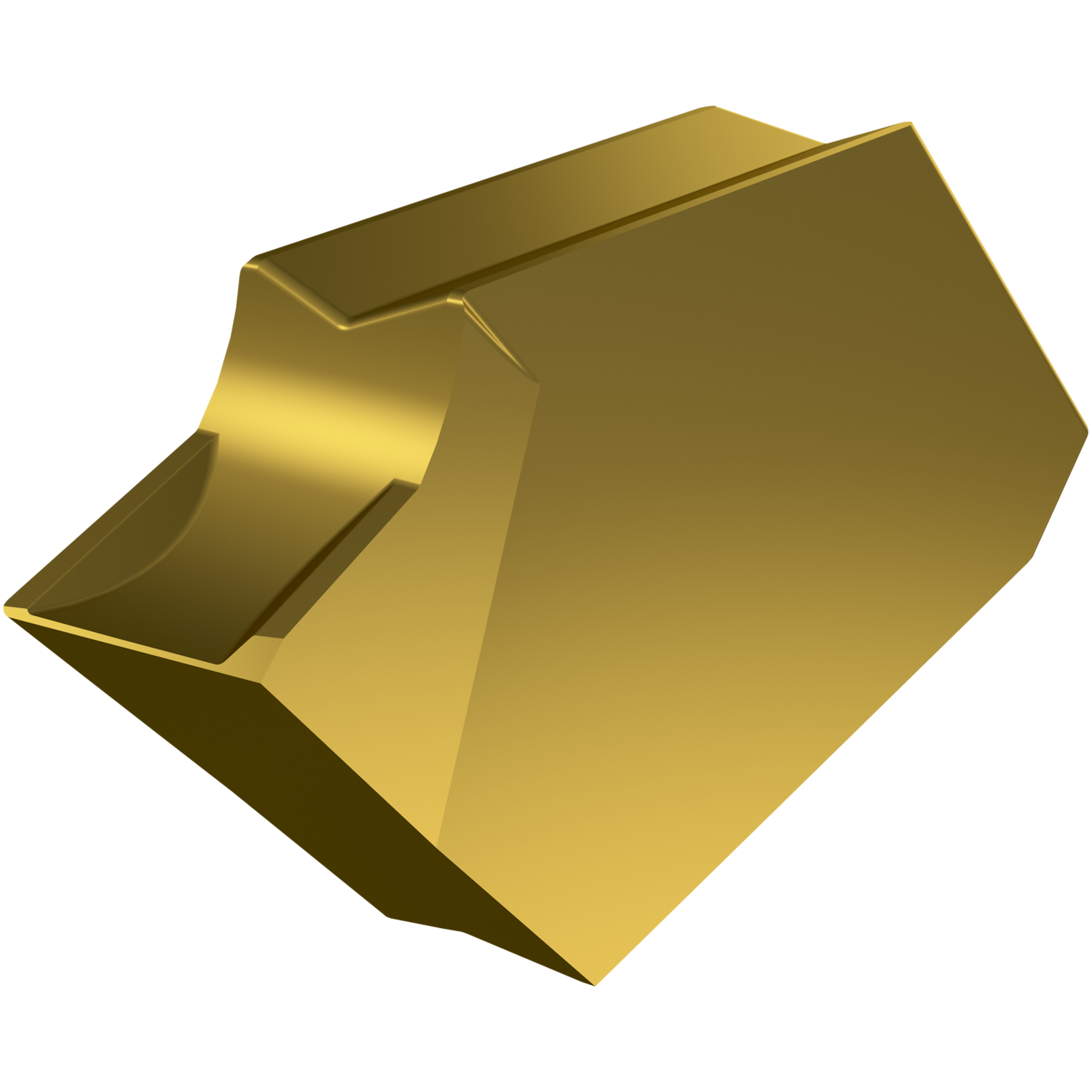

PRAMET LFUX 040800TR:6640 Turning inserts for parting off

Product Code: LFUX 040800TR:6640

$25.50$23.18 Ex. GST

Product Code: LFUX 040800TR:6640 SKU LFUX 040800TR:6640 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended parting and grooving insert, with a 4mm cutting width and 0.2mm corner radii, 5° front angle to reduce pip and burr on the right hand side, an accuracy according to tolerance class-U and cutting edges with facet, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and K25-K40 for machining of steel and cast-iron in combination with DORMER PRAMET XLCFN 04 and XLCF(RL) 04 parting and grooving tools

Additional information

Weight 0.0248 kg
barcode
Additional Information

Description: Value
EAN number: 3603602870889
Product number (SAP): 80001774
Ordering code ANSI: LFUX 040800TR:6640
Gross weight – grams: 4.664
Cutting width – millimeter (CW): 4 mm
Insert body width – millimeter (BW): 3.44 mm
Insert length – millimeter (INSL): 11.5 mm
Grade: 6640
Corner radius – millimeter (RE): 0.2 mm
Tool lead angle right (PSIRR): 5
Insert Design: LFUX
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Primary Tool Lead Angle: Right
Insert Type: X
ISO: LFUX040800TR:6640

Brand

PRAMET
