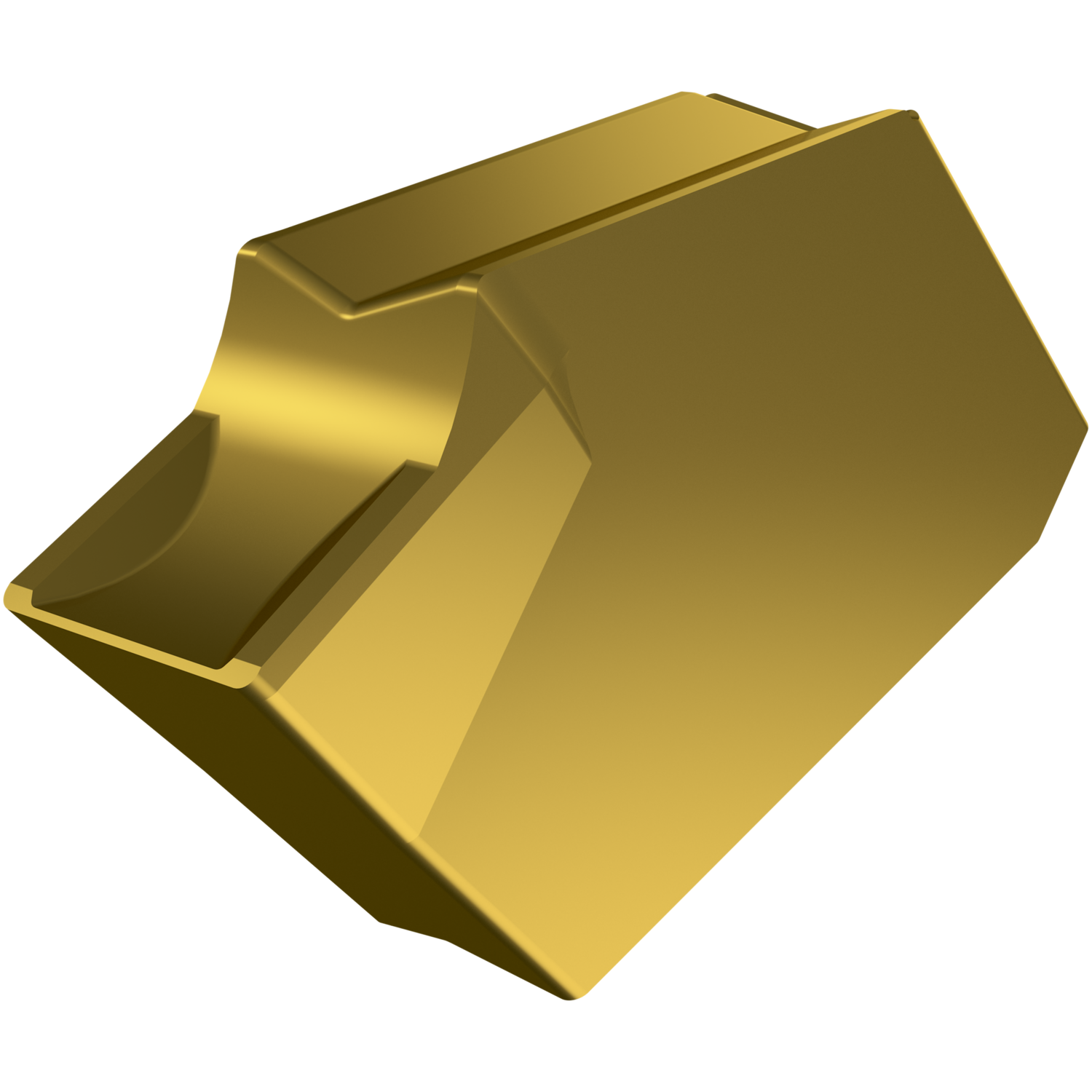

PRAMET LFUX 060802TN:6640 Turning inserts for parting off

Product Code: LFUX 060802TN:6640

$28.56$25.96 Ex. GST

Product Code: LFUX 060802TN:6640 SKU LFUX 060802TN:6640 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single ended parting and grooving insert, with a 6mm cutting width and 0.2mm corner radii, an accuracy according to tolerance class-U and cutting edges with facet, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and K25-K40 for machining of steel and cast-iron in combination with DORMER PRAMET XLCFN 06 and XLCF(RL) 06 parting and grooving tools

Additional information

Weight 0.0277 kg
barcode
Additional Information

Description: Value
EAN number: 3603602870896
Product number (SAP): 80001782
Ordering code ANSI: LFUX 060802TN:6640
Gross weight – grams: 7.565
Cutting width – millimeter (CW): 6 mm
Insert body width – millimeter (BW): 5.3 mm
Insert length – millimeter (INSL): 11.5 mm
Grade: 6640
Corner radius – millimeter (RE): 0.2 mm
Insert Design: LFUX
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Primary Tool Lead Angle: Neutral
Insert Type: X
ISO: LFUX060802TN:6640

Brand

PRAMET
