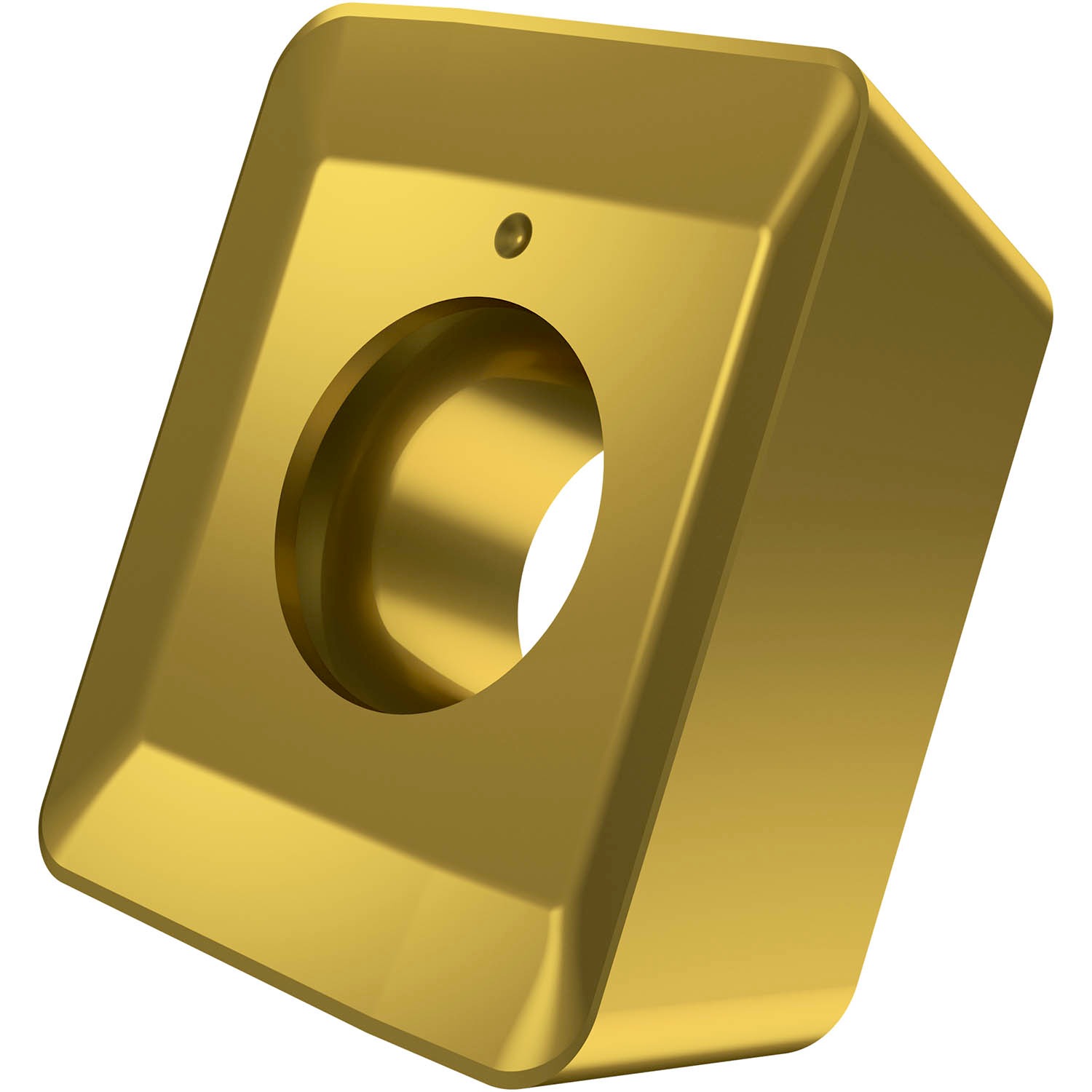

PRAMET LNET 160616SR-R:M8340 Milling – other and drilling inserts clamped by screw

Product Code: LNET 160616SR-R:M8340

$40.34$36.67 Ex. GST

Product Code: LNET 160616SR-R:M8340 SKU LNET 160616SR-R:M8340 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert LNET 1606 with chip-breakers, rectangular for a maximum depth of cut of 15.0mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-E and R geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel with shoulder mills with extended flute J(T)-SLSN

Additional information

Weight 0.0392 kg
barcode
Additional Information

Description: Value
EAN number: 3603602996879
Product number (SAP): 80024950
Ordering code ANSI: LNET 160616SR-R:M8340
Gross weight – grams: 14.462
Insert width – millimeter (W1): 13.2 mm
Fixing hole diameter – millimeter (D1): 5.9 mm
Cutting edge length – millimeter (L): 16.4 mm
Insert thickness – millimeter (S): 6.38 mm
Grade: M8340
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert size: 16
Insert Thickness: 06
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): L – rectangular
ISO: LNET160616SR-R:M8340

Brand

PRAMET
