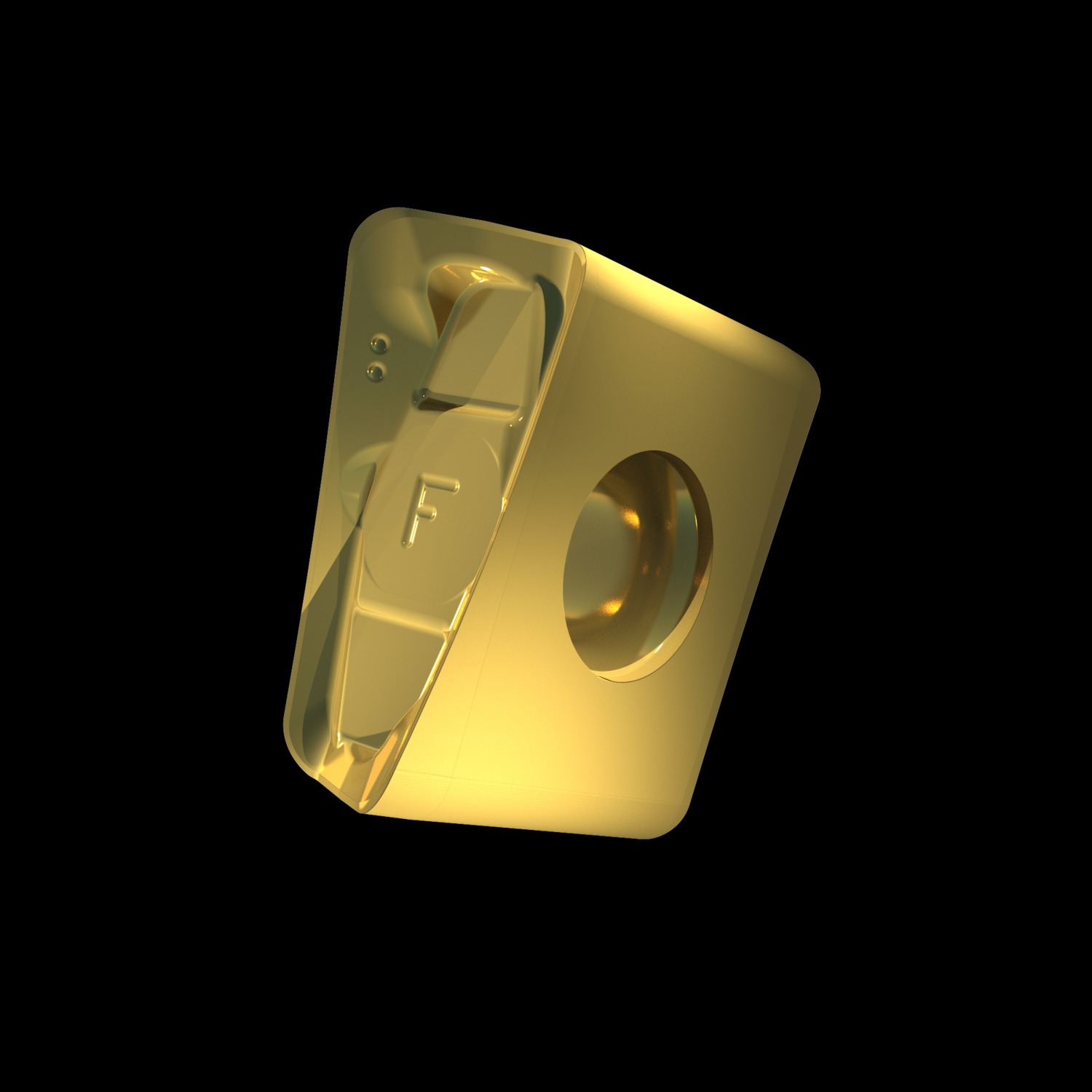

PRAMET LNEX 121012SR-F:M8330 Milling - other and drilling inserts clamped by screw

Description

Double-sided milling insert LNEX 1210, rectangular for a maximum depth of cut of 10.0mm, with 1.2mm corner radius, an indexing accuracy according to ISO-tolerance class-E and F geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel with shoulder mills SLN12X

Additional information

Weight	0.0082 kg
barcode	3603603953949
Additional Information	Description: Value EAN number: 3603603953949 Product number (SAP): 80034469 Ordering code ANSI: LNEX 121012SR-F:M8330 Gross weight – grams: 8.23 Insert width – millimeter (W1): 6 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 13.3 mm Insert thickness – millimeter (S): 10.26 mm Grade: M8330 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: N 0° Insert Type: X Chipbreaker manufacturer's designation (CBMD): F Insert shape code (SC): L – rectangular ISO: LNEX121012SR-F:M8330

PRAMET LNEX 121012SR-F:M8330 Milling – other and drilling inserts clamped by screw
