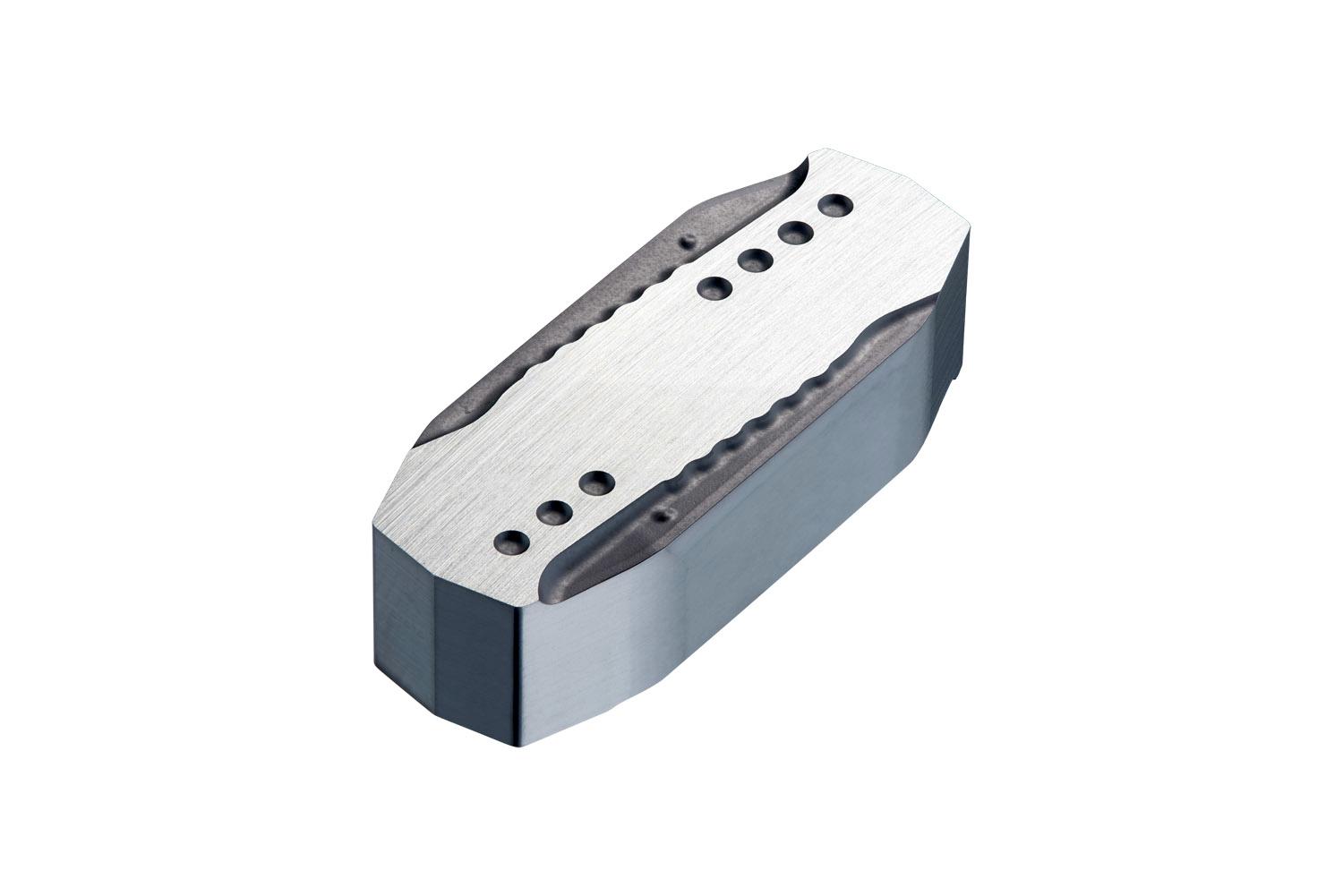

PRAMET LNGF 300715-MM-S01:T6310 Bar peeling inserts Special order

Description: Value
EAN number: 3603603276017
Product number (SAP): 80029178
Ordering code ANSI: LNGF 300715-MM-S01:T6310
Gross weight – grams: 36.734
Cutting edge length – millimeter (L): 30.12 mm
Insert thickness – millimeter (S): 7.54 mm
Depth of cut maximum – millimeter (APMX): 1.5 mm
Major cutting edge angle (KRINS): 20
Insert width – millimeter (W1): 12 mm
Wiper edge length – millimeter (BS): 13 mm
Grade: T6310
Cutting depth – minimal – milimeters (ap): 0.5 mm
Cutting depth – maximal – milimeters (ap): 1.5 mm
Feed maximal – millimeter: 10 mm/rev
Insert Clearance Code and Angle: N 0°
Insert Design: LNGF 30
Insert size: 30
Insert Thickness: 07
Insert Type: F
Chipbreaker manufacturer's designation (CBMD): MM-S01
Insert shape code (SC): L – rectangular
ISO: LNGF300715-MM-S01:T6310
