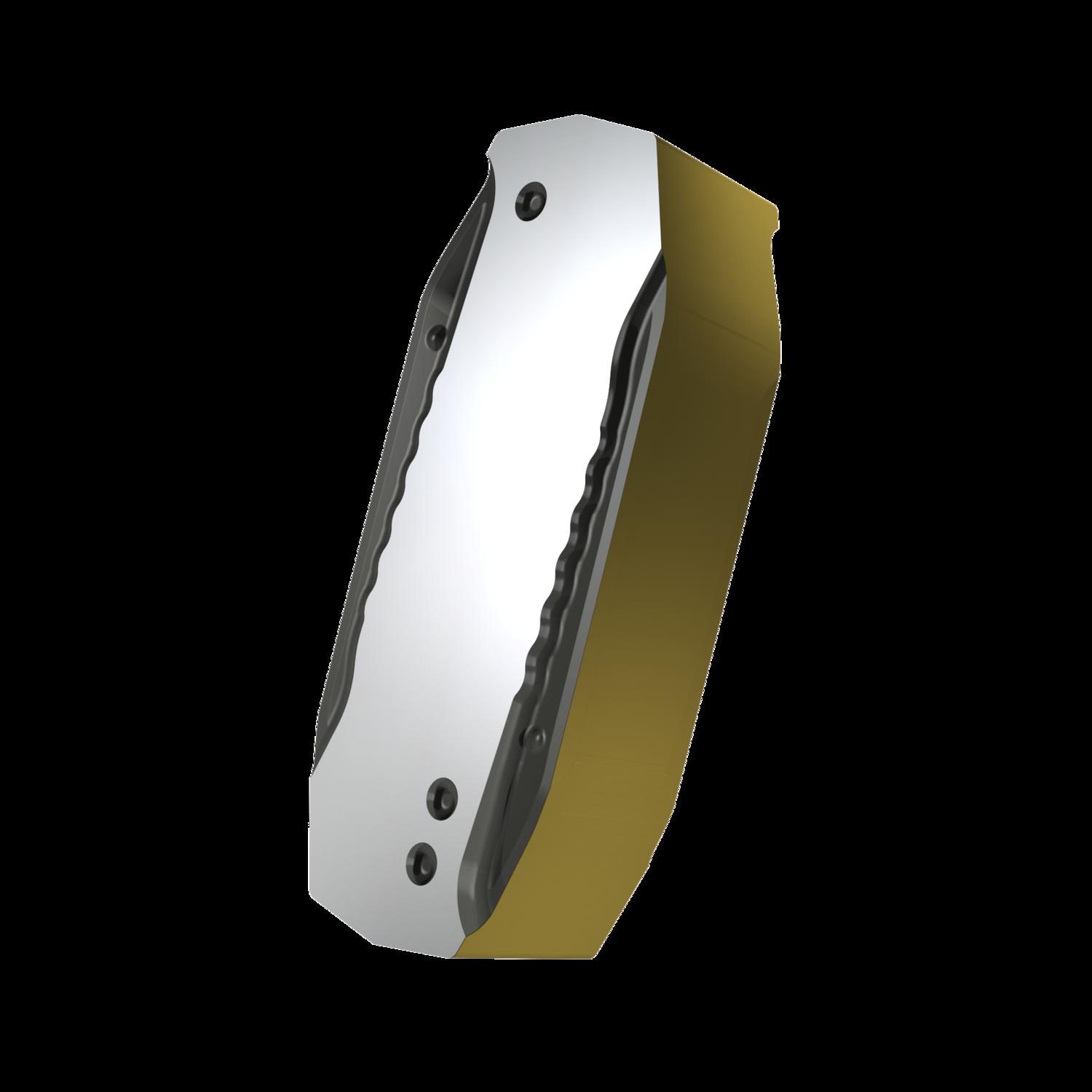

PRAMET LNGF 300715-MM-S01:T9415 Bar peeling inserts Special order

Description

Double-sided negative barpeeling insert, rectangular with a length of 30.12mm, 7.94mm thick for 1.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker MM with S01 cutting edge preperation, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for high strength steels

Additional information

Weight	0.0349 kg
barcode	3603604020046
Additional Information	Description: Value EAN number: 3603604020046 Product number (SAP): 80034901 Ordering code ANSI: LNGF 300715-MM-S01:T9415 Gross weight – grams: 34.91 Cutting edge length – millimeter (L): 30.12 mm Insert thickness – millimeter (S): 7.54 mm Major cutting edge angle (KRINS): 20 Insert width – millimeter (W1): 12 mm Wiper edge length – millimeter (BS): 13 mm Grade: T9415 Insert Clearance Code and Angle: N 0° Insert Design: LNGF 30 Insert size: 30 Insert Type: F Chipbreaker manufacturer's designation (CBMD): MM Insert shape code (SC): L – rectangular ISO: LNGF300715-MM-S01:T9415
