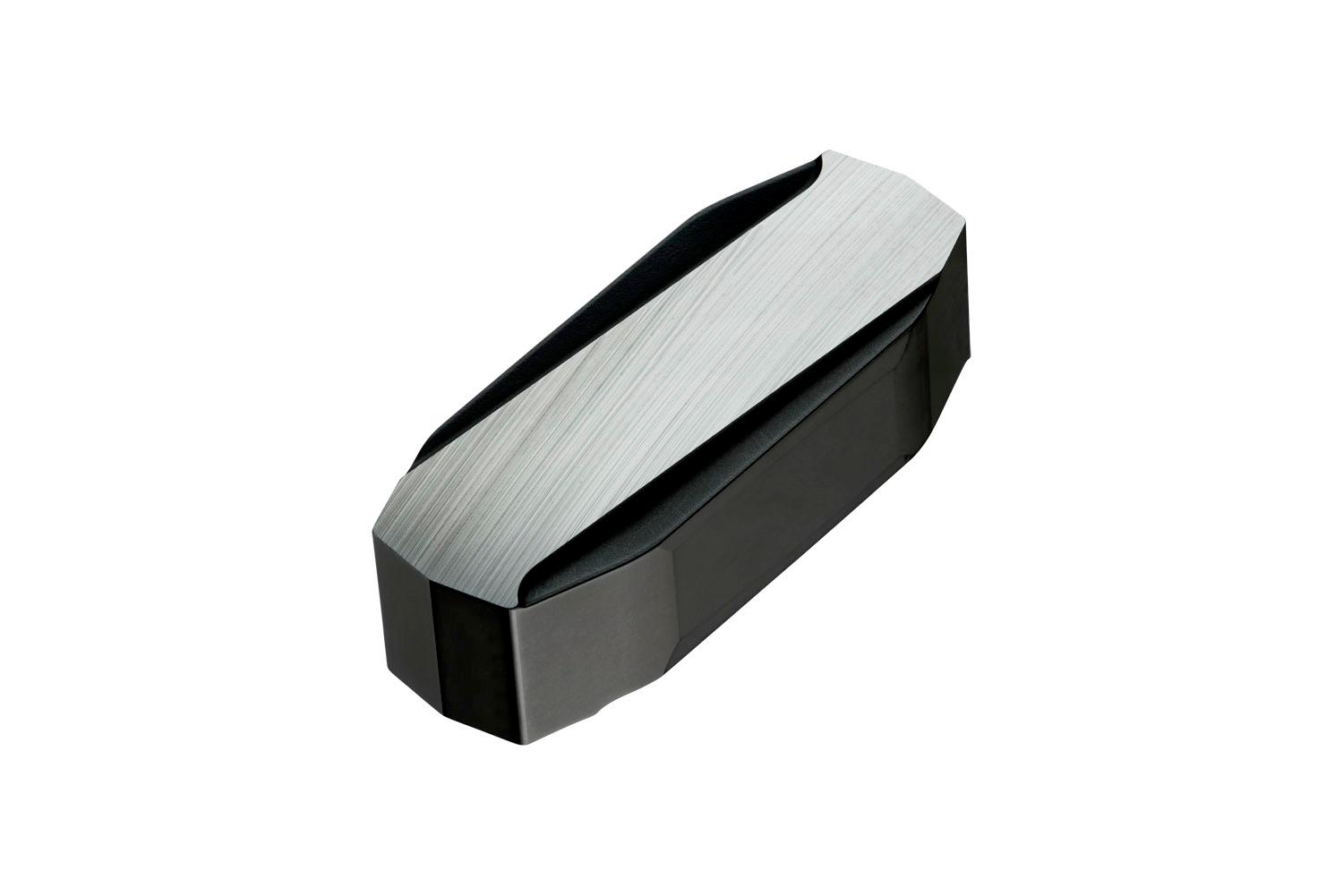

PRAMET LNGF 361220-PM-S01:T7325 Bar peeling inserts Special order

Description: Value
EAN number: 3603603295070
Product number (SAP): 80029474
Ordering code ANSI: LNGF 361220-PM-S01:T7325
Gross weight – grams: 103.204
Cutting edge length – millimeter (L): 36.5 mm
Insert thickness – millimeter (S): 12 mm
Depth of cut maximum – millimeter (APMX): 2 mm
Major cutting edge angle (KRINS): 20
Insert width – millimeter (W1): 18 mm
Wiper edge length – millimeter (BS): 16 mm
Grade: T7325
Cutting depth – minimal – milimeters (ap): 0.6 mm
Cutting depth – maximal – milimeters (ap): 2 mm
Feed maximal – millimeter: 12 mm/rev
Insert Clearance Code and Angle: N 0°
Insert Design: LNGF 36
Insert size: 36
Insert Thickness: 12
Insert Type: F
Chipbreaker manufacturer's designation (CBMD): PM-S01
Insert shape code (SC): L – rectangular
ISO: LNGF361220-PM-S01:T7325
