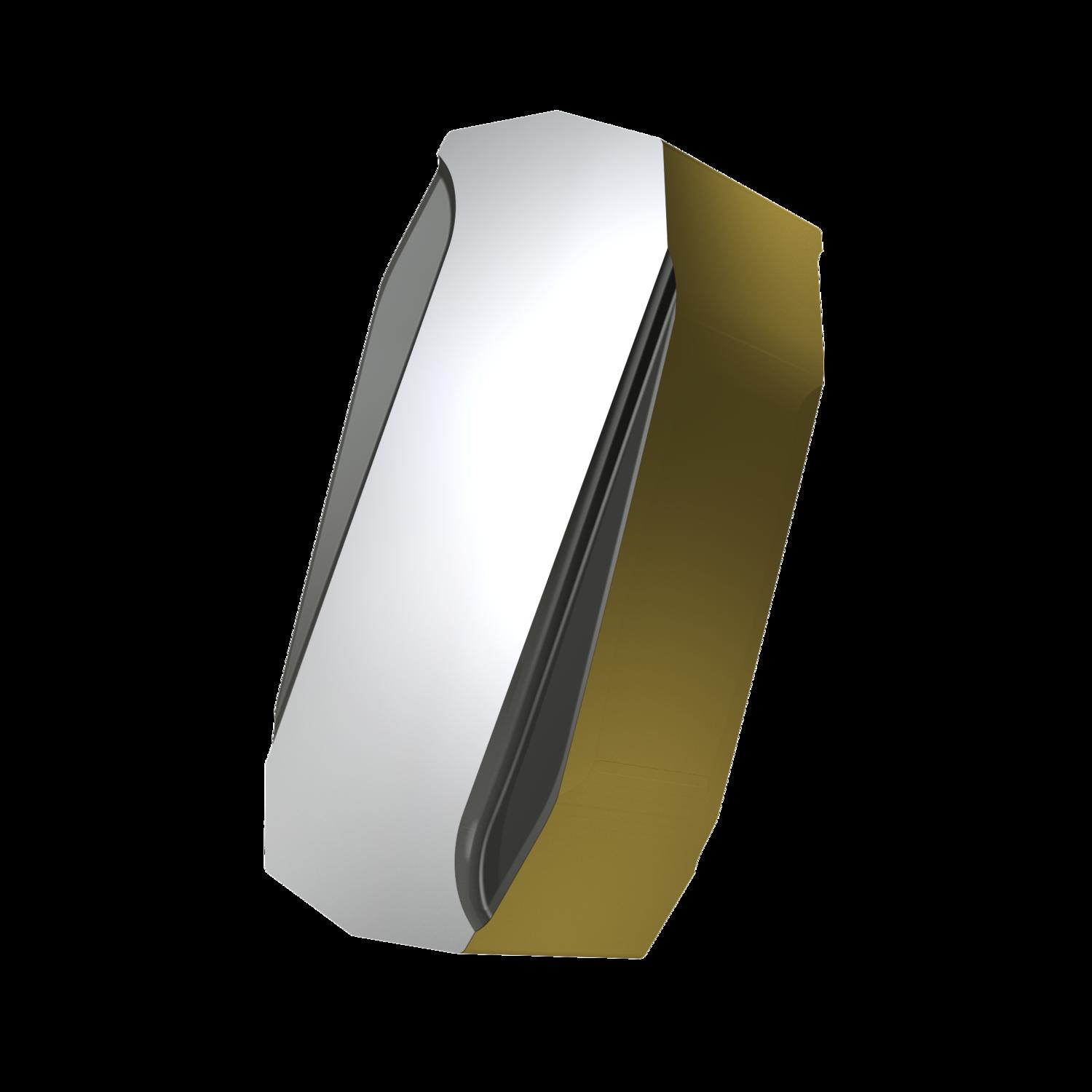

PRAMET LNGF 361220-PM-S01:T9415 Bar peeling inserts Special order

Description

Double-sided negative barpeeling insert, rectangular with a length of 36.5mm, 12mm thick for 2mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S01 cutting edge preperation, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for high strength steels

Additional information

Weight	0.1025 kg
barcode	3603603953666
Additional Information	Description: Value EAN number: 3603603953666 Product number (SAP): 80034393 Ordering code ANSI: LNGF 361220-PM-S01:T9415 Gross weight – grams: 109.32 Cutting edge length – millimeter (L): 36.5 mm Insert thickness – millimeter (S): 12 mm Major cutting edge angle (KRINS): 20 Insert width – millimeter (W1): 18 mm Wiper edge length – millimeter (BS): 16 mm Grade: T9415 Insert Clearance Code and Angle: N 0° Insert Design: LNGF 36 Insert size: 36 Insert Type: F Chipbreaker manufacturer's designation (CBMD): PM Insert shape code (SC): L – rectangular ISO: LNGF361220-PM-S01:T9415
