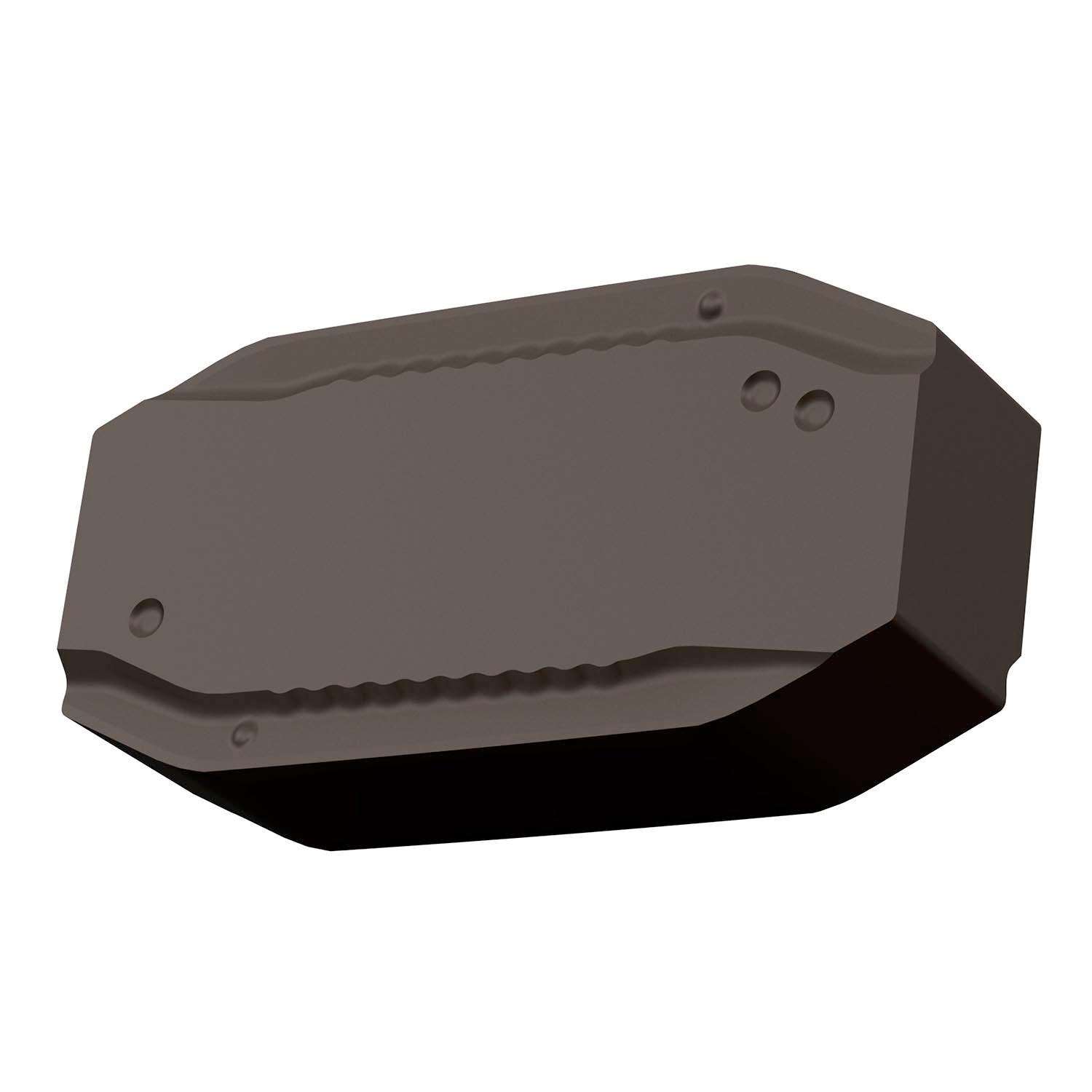

PRAMET LNGF 401035-MM-S01:T7325 Bar peeling inserts Special order

Description: Value
EAN number: 3603603276130
Product number (SAP): 80029190
Ordering code ANSI: LNGF 401035-MM-S01:T7325
Gross weight – grams: 106.406
Cutting edge length – millimeter (L): 40 mm
Insert thickness – millimeter (S): 10.15 mm
Depth of cut maximum – millimeter (APMX): 3.5 mm
Major cutting edge angle (KRINS): 25
Insert width – millimeter (W1): 20 mm
Wiper edge length – millimeter (BS): 20 mm
Grade: T7325
Cutting depth – minimal – milimeters (ap): 0.7 mm
Cutting depth – maximal – milimeters (ap): 3.5 mm
Feed maximal – millimeter: 16 mm/rev
Insert Clearance Code and Angle: N 0°
Insert Design: LNGF 40
Insert size: 40
Insert Thickness: 10
Insert Type: F
Chipbreaker manufacturer's designation (CBMD): MM
Insert shape code (SC): L – rectangular
ISO: LNGF401035-MM-S01:T7325
