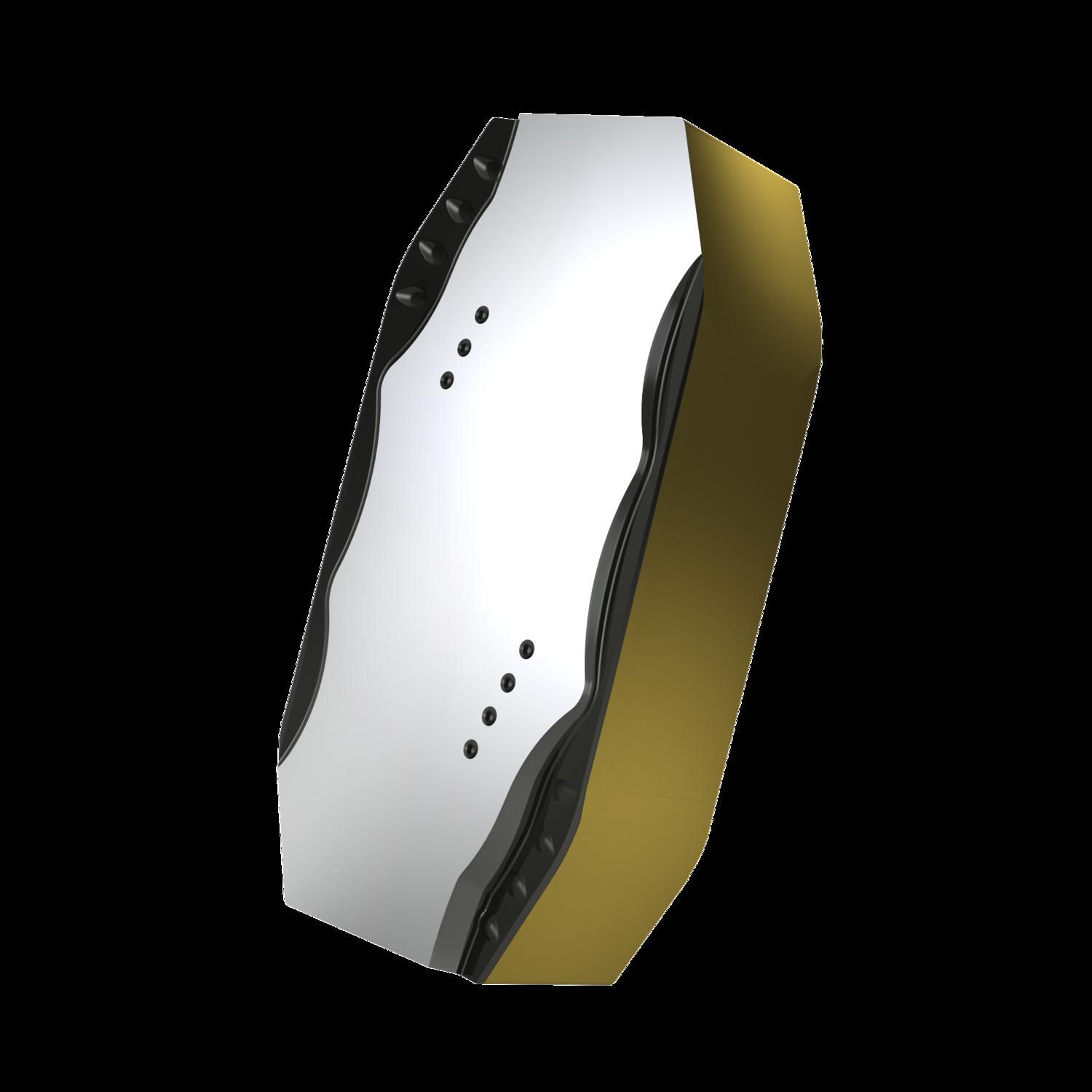

PRAMET LNGF 401035-PM-S01:T9415 Bar peeling inserts Special order

Description

Double-sided negative barpeeling insert, rectangular with a length of 40mm, 9.6mm thick for 3.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S01 cutting edge preperation, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for high strength steels

Additional information

Weight	0.1045 kg
barcode	3603604020077
Additional Information	Description: Value EAN number: 3603604020077 Product number (SAP): 80034904 Ordering code ANSI: LNGF 401035-PM-S01:T9415 Gross weight – grams: 104.539 Cutting edge length – millimeter (L): 40 mm Insert thickness – millimeter (S): 10.15 mm Major cutting edge angle (KRINS): 25 Insert width – millimeter (W1): 20 mm Wiper edge length – millimeter (BS): 20 mm Grade: T9415 Insert Clearance Code and Angle: N 0° Insert Design: LNGF 40 Insert size: 40 Insert Type: F Chipbreaker manufacturer's designation (CBMD): PM Insert shape code (SC): L – rectangular ISO: LNGF401035-PM-S01:T9415
