PRAMET LNGU 120525ER-M:M8330 Milling – other and drilling inserts clamped by screw

Product Code: LNGU 120525ER-M:M8330

$31.83$28.94 Ex. GST

Product Code: LNGU 120525ER-M:M8330 SKU LNGU 120525ER-M:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

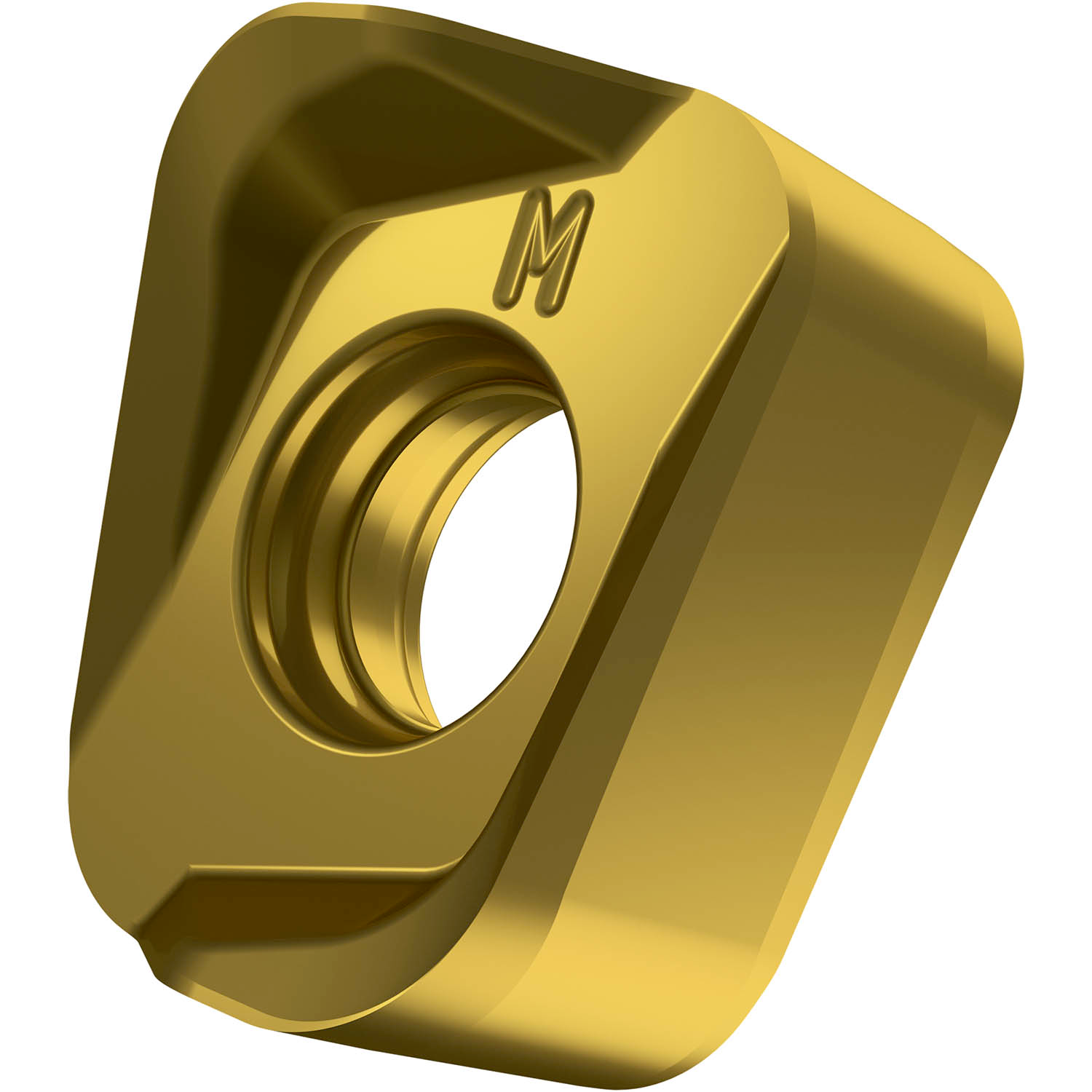

Double-sided milling insert LNGU 1205 with chip-breakers, rectangular for a maximum depth of cut of 9.0mm, with 2.5mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with shoulder mills SLN12

Additional information

Weight 0.0309 kg
barcode
Additional Information

Description: Value
EAN number: 3603603385658
Product number (SAP): 80030092
Ordering code ANSI: LNGU 120525ER-M:M8330
Gross weight – grams: 6.073
Insert width – millimeter (W1): 9.5 mm
Fixing hole diameter – millimeter (D1): 4.5 mm
Cutting edge length – millimeter (L): 12 mm
Insert thickness – millimeter (S): 5.96 mm
Grade: M8330
Corner radius – millimeter (RE): 2.5 mm
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Thickness: 05
Insert Type: U
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): L – rectangular
ISO: LNGU120525ER-M:M8330

Brand

PRAMET
