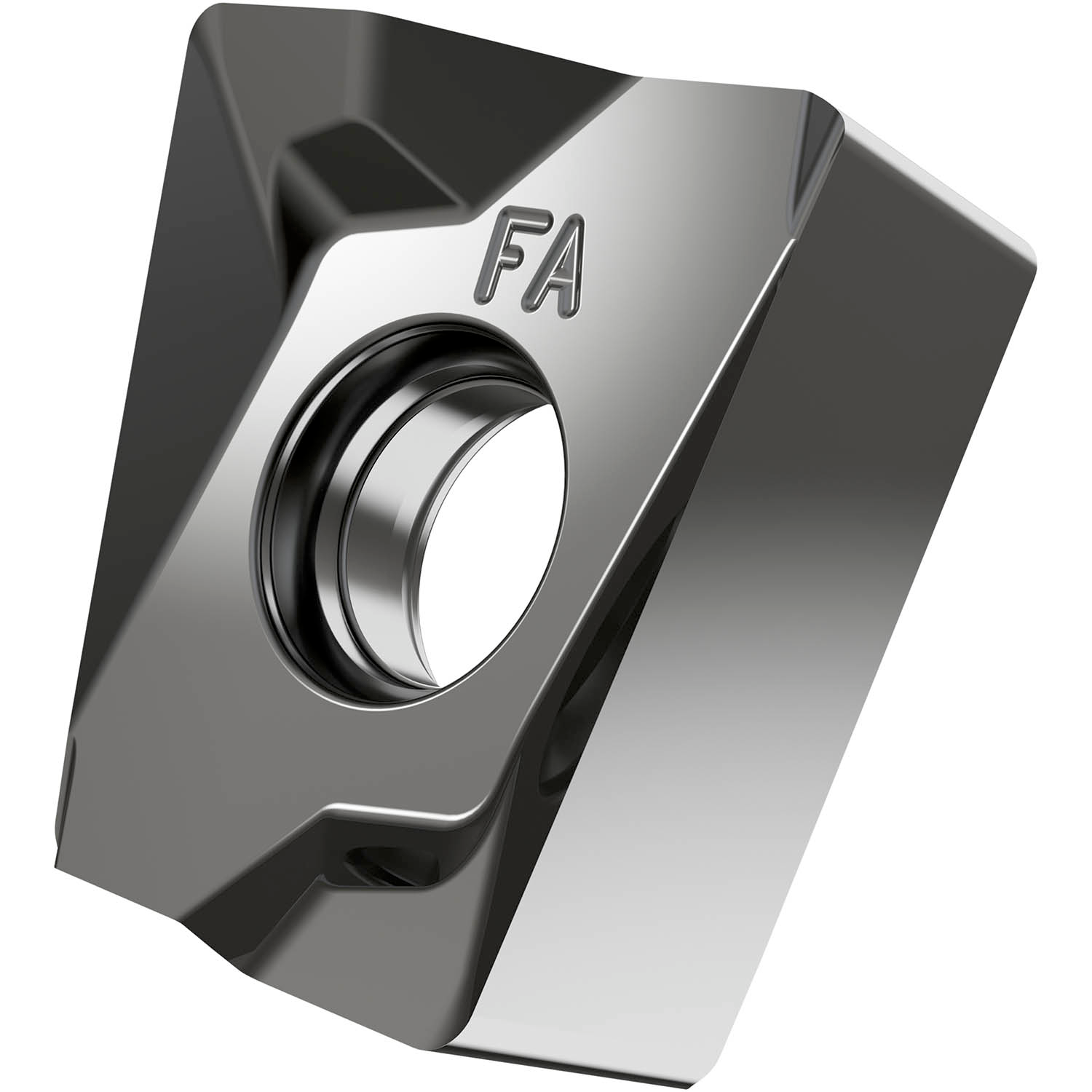

PRAMET LNGU 160708FR-FA:HF7 Milling inserts – geometry FA

Product Code: LNGU 160708FR-FA:HF7

$40.11$36.46 Ex. GST

Product Code: LNGU 160708FR-FA:HF7 SKU LNGU 160708FR-FA:HF7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided milling insert LNGU 1607 with chip-breakers, rectangular for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal with shoulder mills SLN16

Additional information

Weight 0.0389 kg
barcode
Additional Information

Description: Value
EAN number: 3603603081291
Product number (SAP): 80026700
Ordering code ANSI: LNGU 160708FR-FA:HF7
Gross weight – grams: 16.42
Insert width – millimeter (W1): 13.2 mm
Fixing hole diameter – millimeter (D1): 5.7 mm
Cutting edge length – millimeter (L): 16.6 mm
Insert thickness – millimeter (S): 7.5 mm
Grade: HF7
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert size: 16
Insert Thickness: 07
Insert Type: U
Chipbreaker manufacturer's designation (CBMD): FA
Insert shape code (SC): L – rectangular
ISO: LNGU160708FR-FA:HF7

Brand

PRAMET
