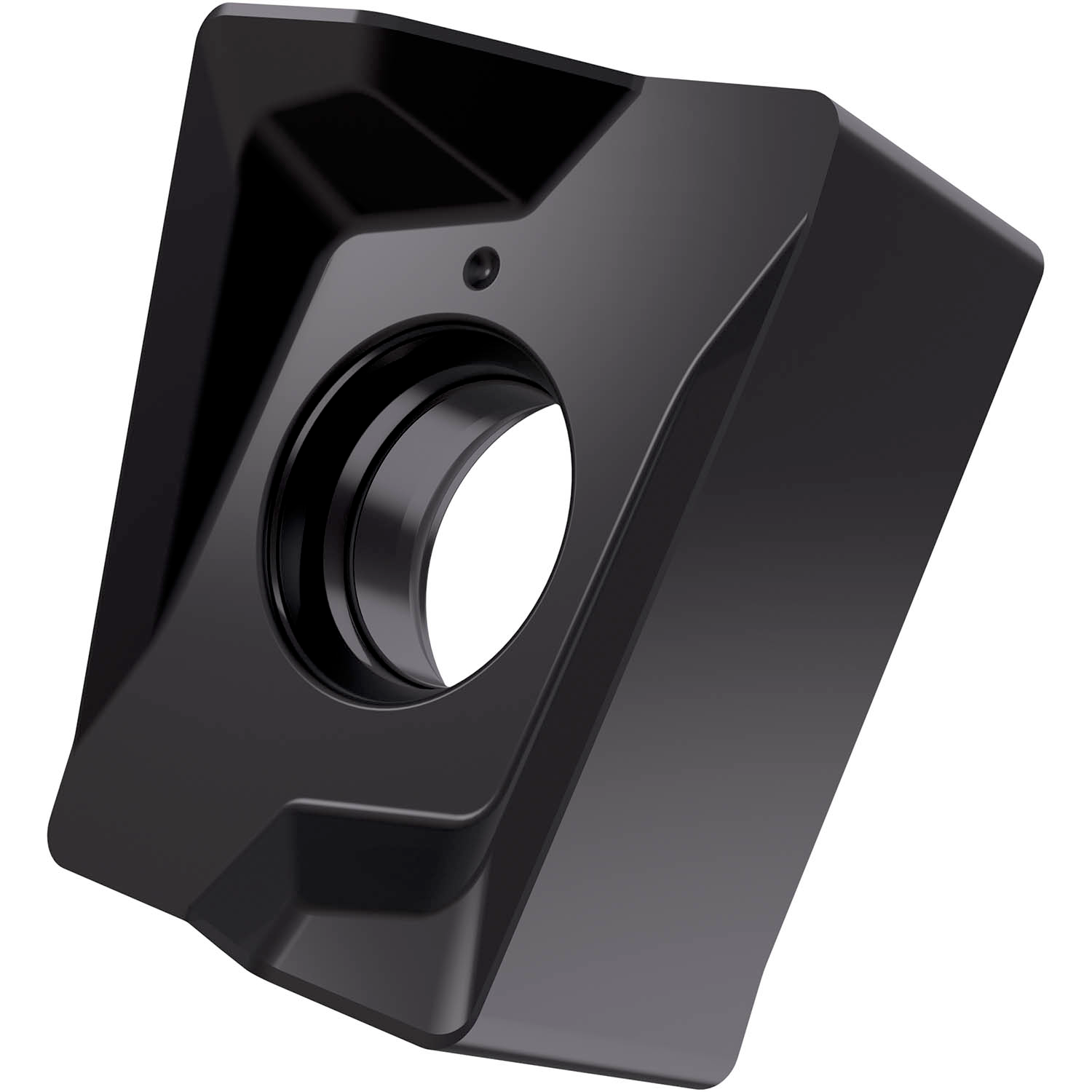

PRAMET LNGU 160708SR-M:8215 Milling - other and drilling inserts clamped by screw

Description

Double-sided milling insert LNGU 1607 with chip-breakers, rectangular for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10 -P20 and K10 -K25 for machining of steel and cast-iron with shoulder mills SLN16

Additional information

Weight	0.036 kg
barcode
Additional Information	Description: Value EAN number: 3603602890689 Product number (SAP): 80015562 Ordering code ANSI: LNGU 160708SR-M:8215 Gross weight – grams: 16.96 Insert width – millimeter (W1): 13.2 mm Fixing hole diameter – millimeter (D1): 5.7 mm Cutting edge length – millimeter (L): 16.6 mm Insert thickness – millimeter (S): 7.5 mm Grade: 8215 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert size: 16 Insert Thickness: 07 Insert Type: U Chipbreaker manufacturer's designation (CBMD): M Insert shape code (SC): L – rectangular ISO: LNGU160708SR-M:8215
