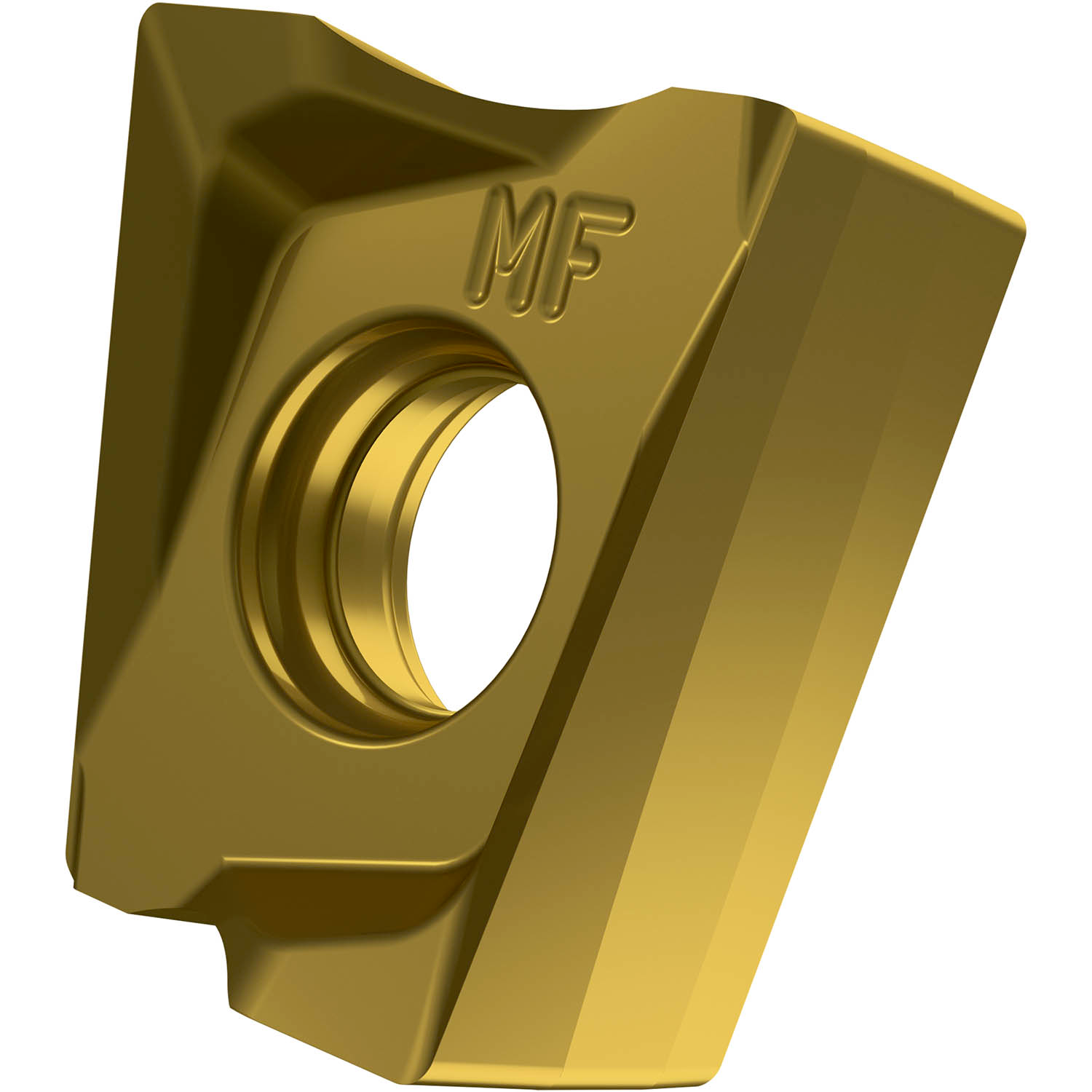

PRAMET LNGX 120504ER-MF:M6330 Milling – other and drilling inserts clamped by screw

Description: Value
EAN Number: 3603603074576 Product Number (SAP): 80026476 Ordering Code ANSI: LNGX 120504ER-MF:M6330 Gross Weight – Grams: 5.963 Insert Width – Millimeter (W1): 9.5 mm Fixing Hole Diameter – Millimeter (D1): 4.5 mm Cutting Edge Length – Millimeter (L): 12 mm Insert Thickness – Millimeter (S): 5.96 mm Grade: M6330 Corner Radius – Millimeter (RE): 0.4 mm Insert Clearance Code and Angle: N 0° Insert Size: 12 Insert Thickness: 05 Insert Type: X Chipbreaker Manufacturer's Designation (CBMD): MF Insert Shape Code (SC): L – Rectangular ISO: LNGX120504ER-MF:M6330
