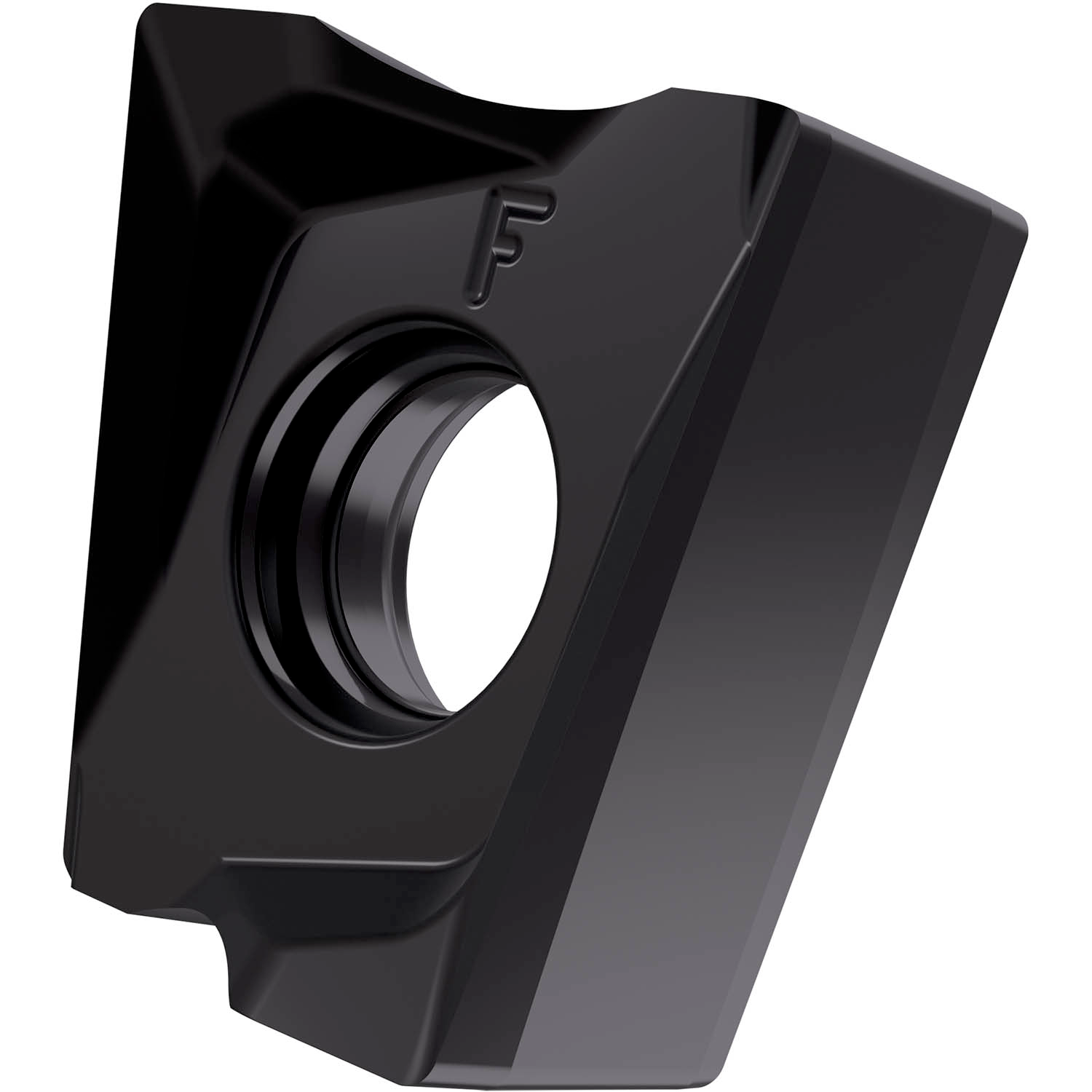

PRAMET LNGX 120508ER-F:M8310 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603603072626
Product number (SAP): 80026117
Ordering code ANSI: LNGX 120508ER-F:M8310
Gross weight – grams: 6.179
Insert width – millimeter (W1): 9.5 mm
Fixing hole diameter – millimeter (D1): 4.5 mm
Cutting edge length – millimeter (L): 12 mm
Insert thickness – millimeter (S): 5.96 mm
Grade: M8310
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Thickness: 05
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): F
Insert shape code (SC): L – rectangular
ISO: LNGX120508ER-F:M8310
